MX-M264U MX-DE17/DE18 (500/2x500 SHEET PAPER DRAWER) 5 – 1
MX-M264U
Service Manual
[5] MX-DE17/DE18 (500/2x500 SHEET PAPER DRAWER)

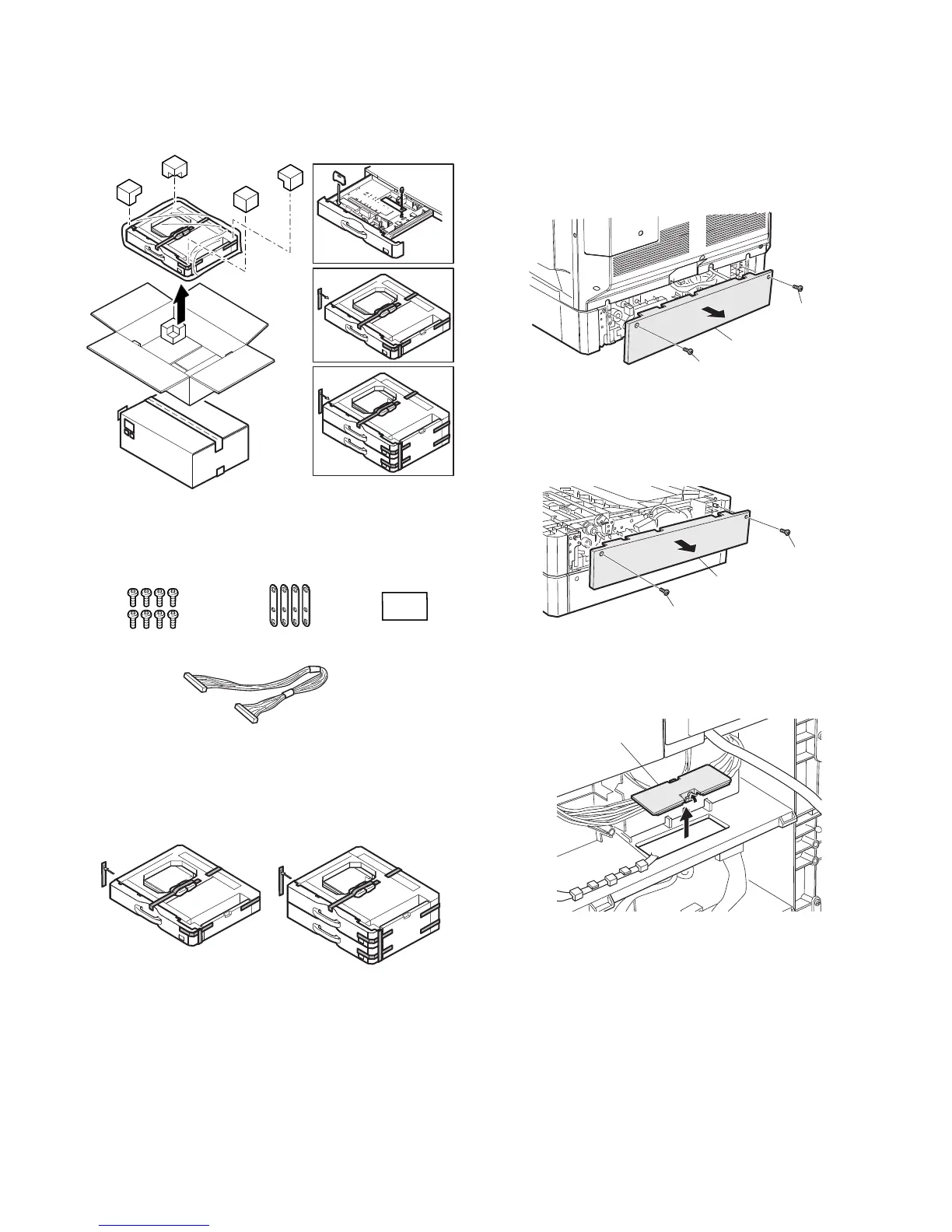

1. Unpacking
2. Installation
PARTS INCLUDED
Remove all pieces of fixing tape and fixing materials from the paper
feed unit.
Turn off the main switch of the copier and then remove the
power plug of the copier from the outlet.
A. Remove the rear cover from the copier
1) Remove the two screws and then remove the rear cover from
the copier.
B. Remove the rear cover from the optional paper
feed unit
1) Remove the two screws and then remove the rear cover from
the optional paper feed unit.
C. Remove the connector cover
1) Remove the cover from the connector.
Fixing plates: 4 pcs. Paper size labelScrews (M4 x 12): 8 pcs.
Cassette relay harness
(contained in the optional paper feed unit)
To Next Page
