Sharp MX-M314N Installation Manual

MX-M264U MX-TE10 (EXIT TRAY UNIT) 8 – 1
MX-M264U
Service Manual
[8] MX-TE10 (EXIT TRAY UNIT)

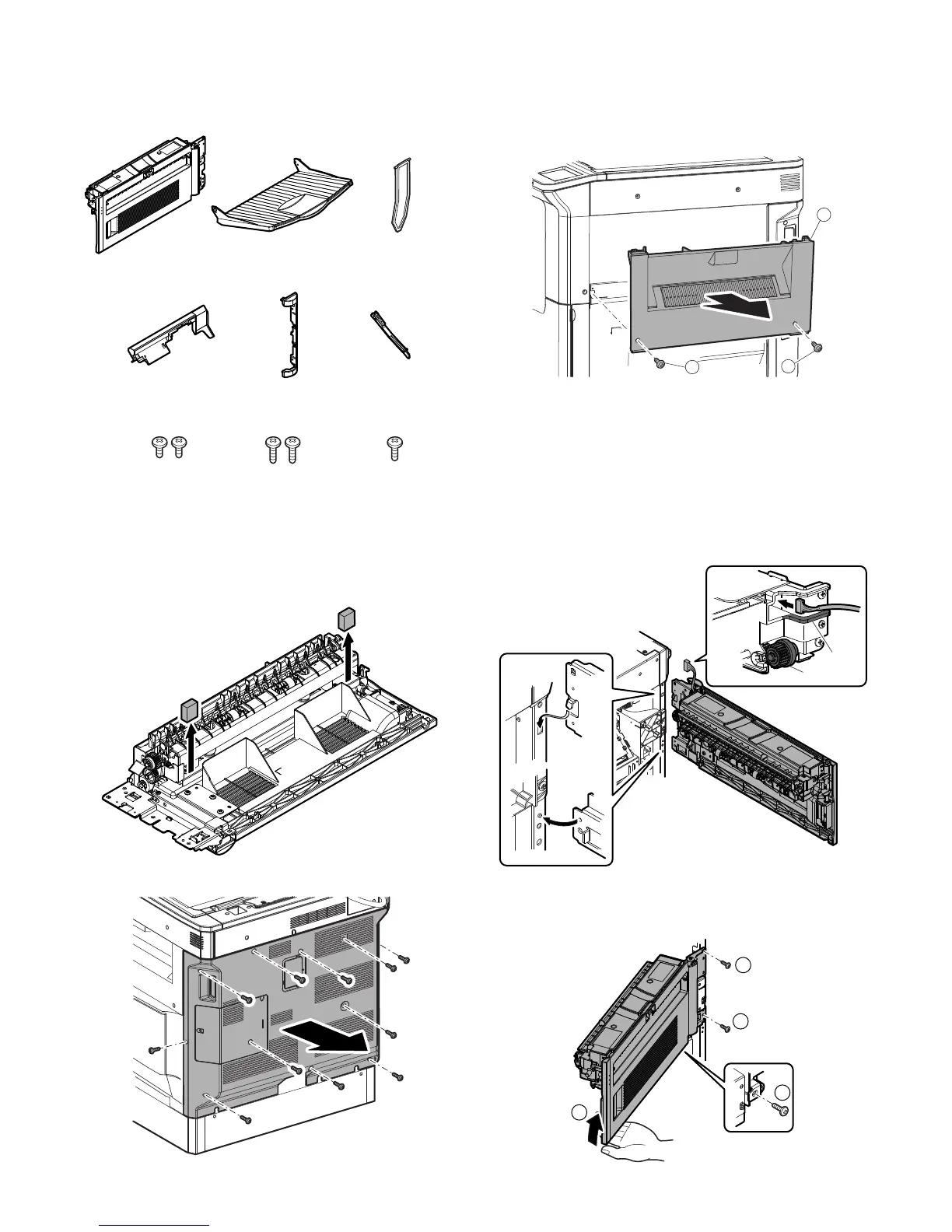

1. Parts included
2. Installation
NOTE: Turn off the main switch of the machine and then remove
the power plug of the machine from the outlet.
1) Remove two EPE cushions.
2) Remove five screws and remove the rear cabinet.
3) Remove two screws and remove the right cabinet unit.
NOTE: One of the removed screws is used in the step 6).
4) Insert the harness of the right paper exit unit to the hole of the
second paper exit.
NOTE: Wire the harness to the upper of the rib.
If wiring it to the under of the rib, the harness may
come into contact with the gear.
5) Insert the pawl of the right paper exit unit to the oval hole of the
frame of the main unit.
Insert the positioning boss of the main unit to the round hole in
lower side.
6) When tightening the screw, tighten in the sequence of (1), (2),
(3) and (4).
Paper exit unit Paper exit tray Paper holding arm
Harness cover OP
Screw (M3 x 4)
Paper exit
right cover
Right paper
exit actuator
Screw (M4 x 10) Screw (M3 x 8)
2
1
11
Rib
Gear
3
2
1
4

Sharp MX-M314N Specifications

General

Print Technology	Laser
Print Speed	31 ppm
Standard Paper Capacity	1100 sheets
Duplex Printing	Yes
Max Scan Resolution	600 x 600 dpi
Copy Speed	31 cpm
Max Copy Resolution	600 x 600 dpi
Fax Capability	Optional
Network Connectivity	Ethernet
Functions	Print, Copy, Scan, Fax
Warm-up Time	20 seconds
Fax Transmission Speed	33.6 Kbps
Max Paper Size	A3
Scanner Type	Color
Display	7-inch color touchscreen
Original Size	A3
Operating System Compatibility	Windows, Mac, Linux
