Sharp MX-M314N Installation Manual

MX-M264U MX-FN23 (FINISHER) 7 – 1
MX-M264U
Service Manual
[7] MX-FN23 (FINISHER)

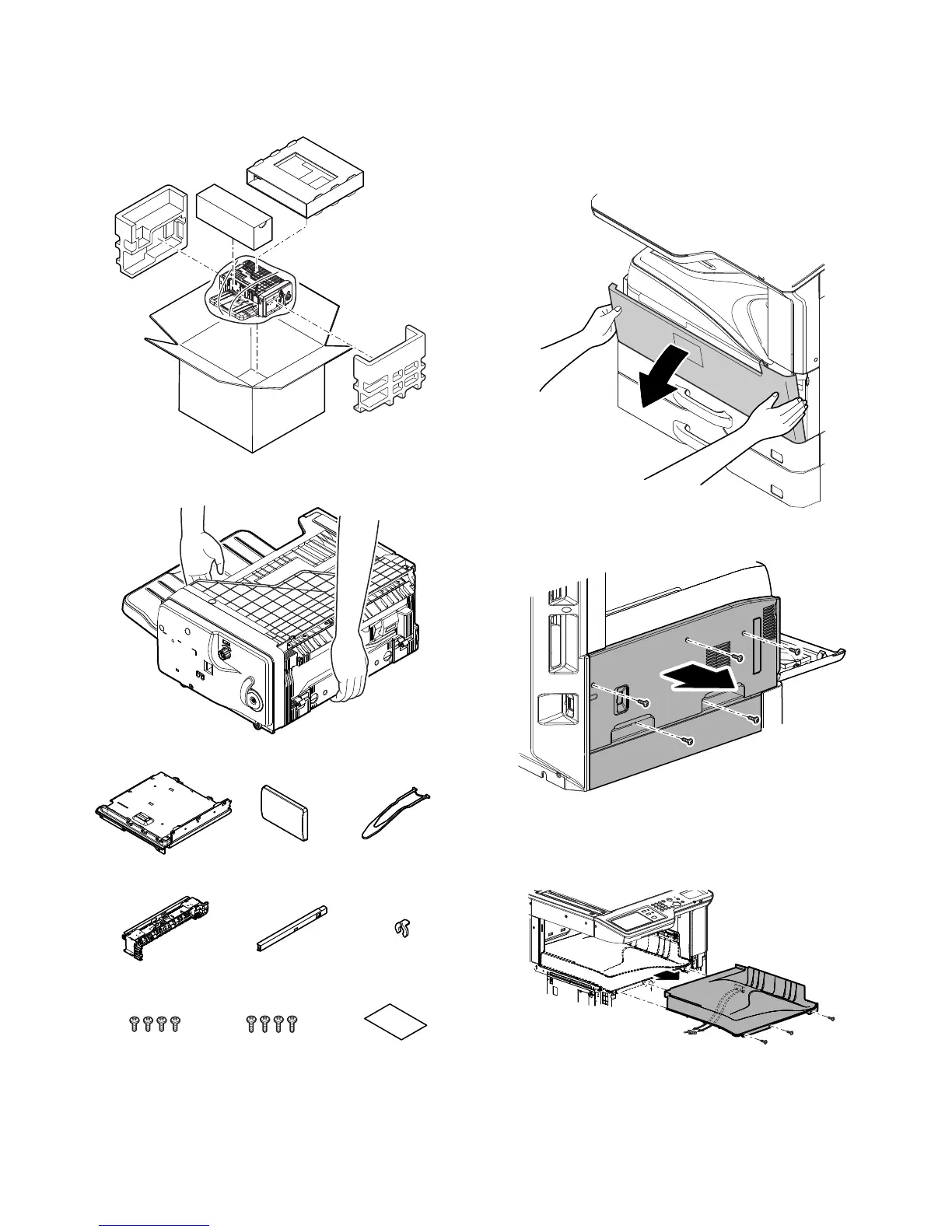

1. Unpacking
MEMO: When removing the finisher, put your hand beneath the
unit and lift it up as shown below.
Check to confirm that all the packed parts are provided.
2. Installation
NOTE: Turn off the main switch of the machine and then remove
the power plug of the machine from the outlet.
1) Open the front cover.
2) Remove the screws, and remove the left cabinet.
3) Remove the screw which are fixing the paper exit tray.
Remove the paper exit tray by using care for the tray paper
presence detection harness which is connected to the back
side of the paper exit tray.
FIN connection unit FIN front cover
Second paper exit unit
Paper holding arm
Rail dummy cover
M3x8Stight bind
(4 pcs.)
M3 x 10 S tight bind
(4 pcs.)
Resin grip
Staple position label

Sharp MX-M314N Specifications

General

Print Technology	Laser
Print Speed	31 ppm
Standard Paper Capacity	1100 sheets
Duplex Printing	Yes
Max Scan Resolution	600 x 600 dpi
Copy Speed	31 cpm
Max Copy Resolution	600 x 600 dpi
Fax Capability	Optional
Network Connectivity	Ethernet
Functions	Print, Copy, Scan, Fax
Warm-up Time	20 seconds
Fax Transmission Speed	33.6 Kbps
Max Paper Size	A3
Scanner Type	Color
Display	7-inch color touchscreen
Original Size	A3
Operating System Compatibility	Windows, Mac, Linux
