MX-M316N MAINTENANCE 9 – 3

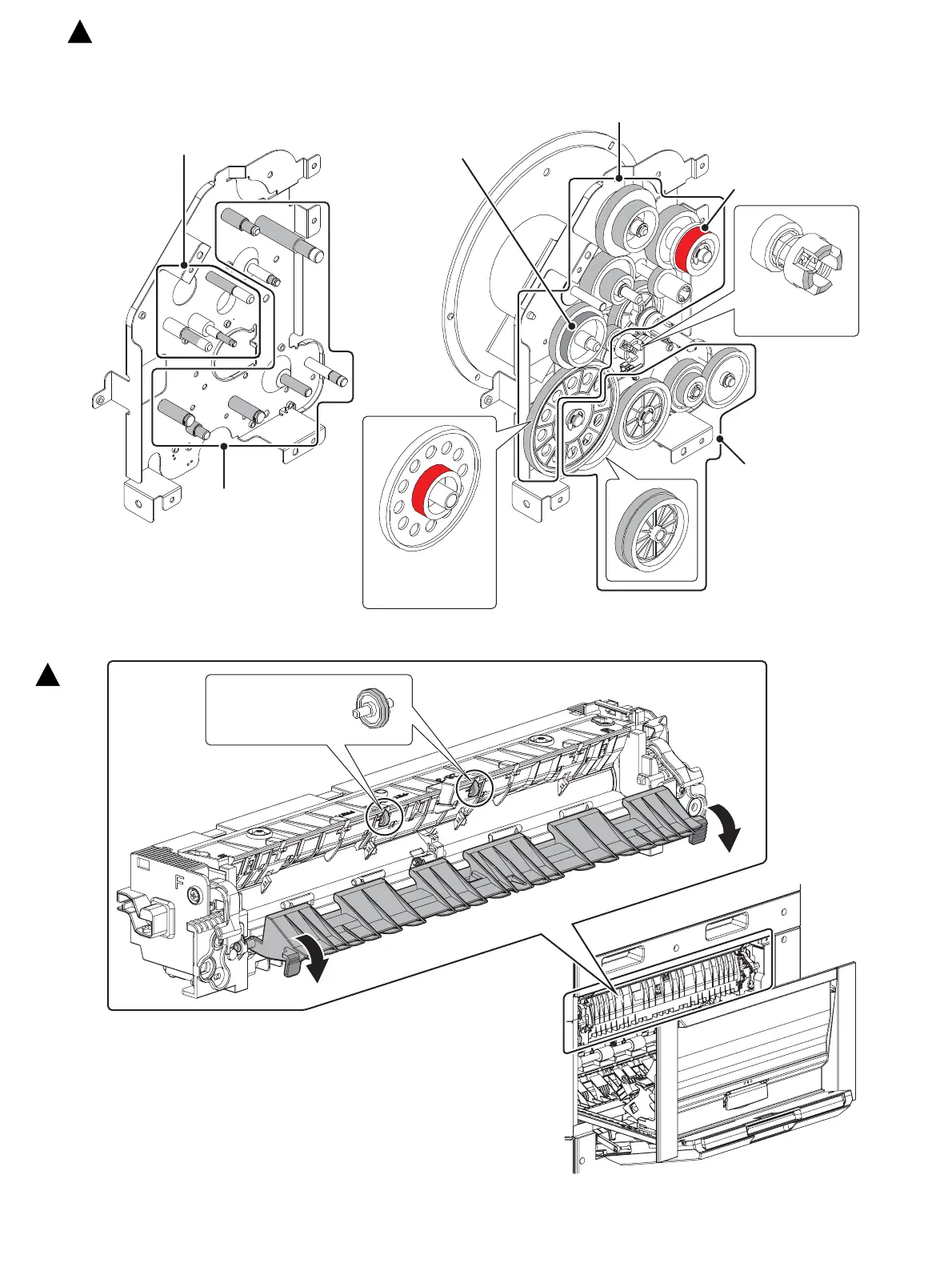

Grease map（Drive section）
Cleaning point（Fusing section）
Grease
UKOG-0307FCZZ
Do not apply grease
on the tooth surface
show in the figure.
Do not apply grease
on the fusing drive giar.
Grease
UKOG-0307FCZZ
Grease
UKOG-0158FCZZ
Grease
UKOG-0299FCZZ
Grease
UKOG-0013QSZZ
Grease
UKOG-0013QSZZ
Clean the
Delivery guide collar
surface.
