A. Side door section/Duplex transport section

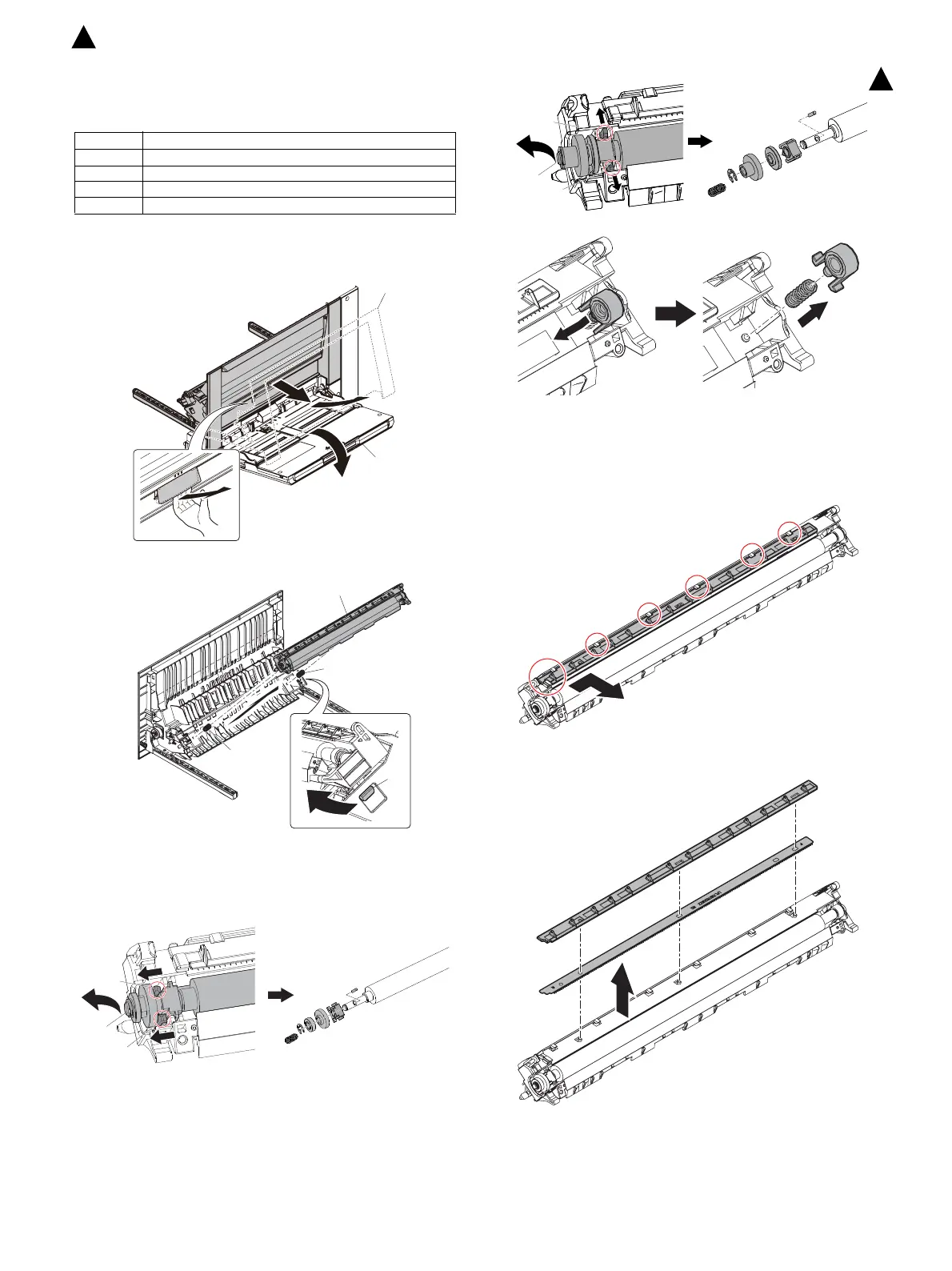

(1) Transfer roller unit
Open the bypass tray and remove the side door.
Remove the transfer roller unit.
(2) Transfer roller
Open the pawls. Remove the transfer roller unit. Then, remove the
E-ring, the TC roller collar, the transfer roller gear, the transfer roller
bearing R and the pin from the transfer roller.
* When the transfer roller unit is fixed to the right door unit, check
that the high pressure spring of the transfer roller unit fits with the
right door unit.
(3) Transfer discharge plate
Remove the transfer discharge plate holder from the pawl.
Remove the transfer discharge plate holder and the transfer dis-
charge plate.
No. Content
1 Transfer roller unit
2 Transfer roller
3 Transfer discharge plate
4 Duplex transport part
