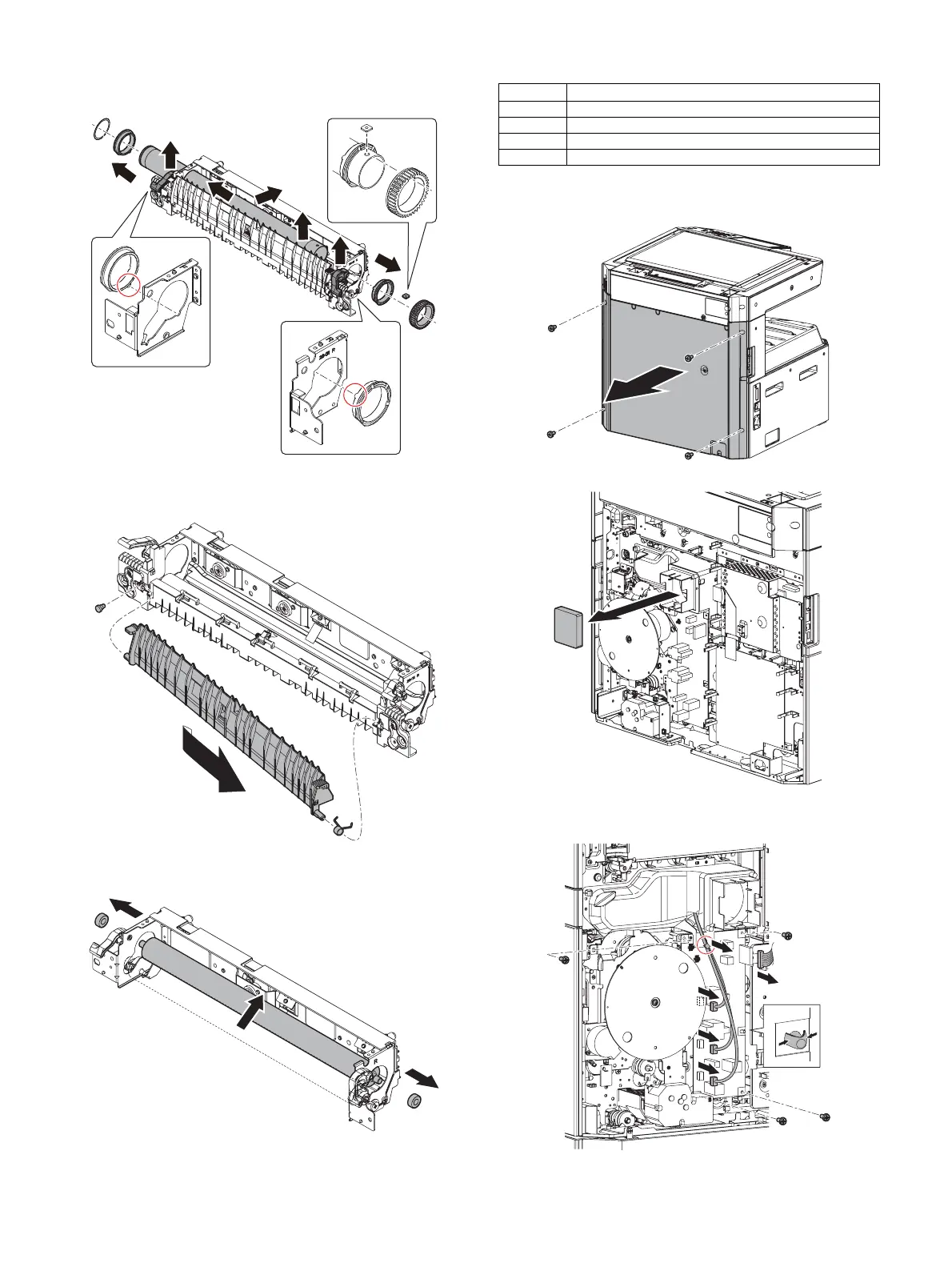

MX-M316N DISASSEMBLY AND ASSEMBLY 10 – 8
(9) Heat roller
1) Remove the heat roller by removing the parts in order as
shown in the figure.
(10) Pressure roller
1) Remove the High voltage holder.
2) Remove the pressure roller.
D. Paper exit section
(1) Ozone filter
1) Remove the rear cabinet.
2) Remove the ozone filter.
(2) Cooling fan
1) Remove the harnesses from the power unit.
No. Contents
1 Ozone filter
2 Cooling fan
3 First paper exit unit
4 Second paper exit unit
