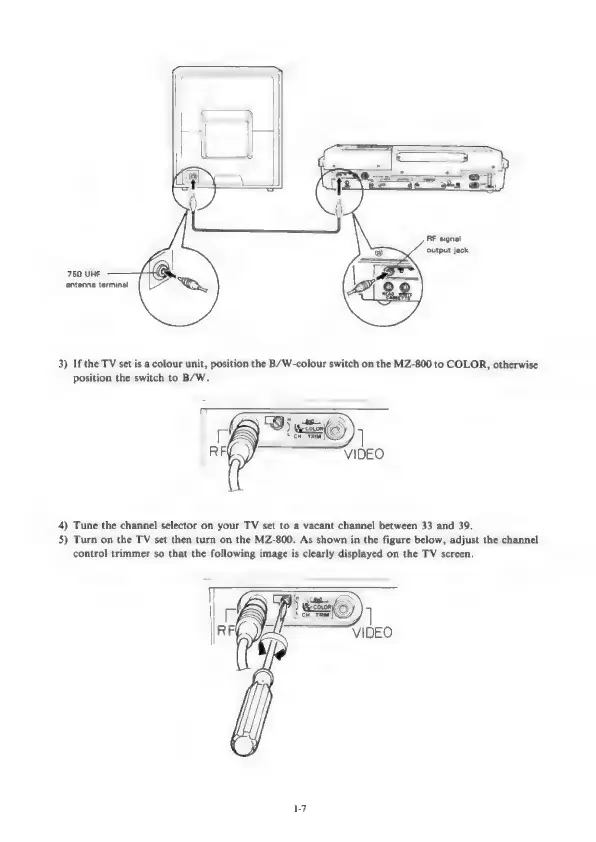

3)
If
the
TV
set
is
a
colour
unit,
position
the
B/W-colour
switch
on
the
MZ-800
to
COLOR,
otherwise
position
the
switch
to
B/W.
4)
Tune
the
channel
selector
on
your
TV
set
to
a
vacant
channel
between
33
and
39.
5)
Turn
on
the
TV
set
then
turn
on
the
MZ-800.
As
shown
in
the
figure
below,
adjust
the
channel
control
trimmer
so
that
the
following
is
clearly
displayed
on
the
TV
screen.
|
|RF
