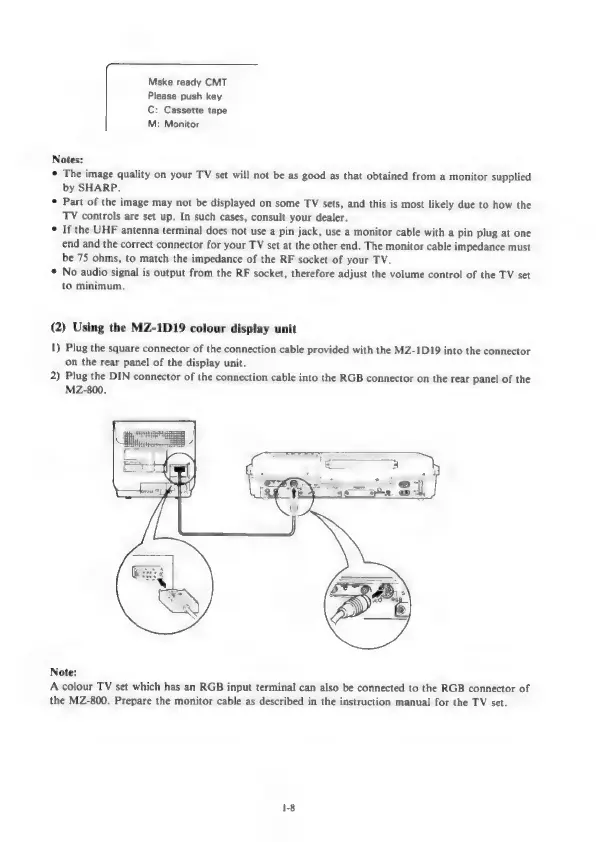

Page #15 background imageLoading...
Page #15 background image
Make
ready
CMT
Please
push
key
C:
Cassette
tape
M:
Monitor
Notes:
©
The
quality
on
your
TV
set
will
not
be
as
good
as
that
obtained
from
a
monitor
supplied
by
SHARP.
*
Part
of
the
may
not
be
displayed
on
some
TV
sets,
and
this
is
most
likely
due
to
how
the
TV
controls
are
set
up.
In
such
cases,
consult
your
dealer,
*
If
the
UHF
antenna
terminal
does
not
use
a
pin
jack,
use
a
monitor
cable
with
a
pin
plug
at
one
end
and
the
correct
connector
for
your
TV
set
at
the
other
end,
The
monitor
cable
impedance
must
be
75
ohms,
to
match
the
impedance
of
the
RF
socket
of
your
TV.
*
No
audio
signal
is
output
from
the
RF
socket,
therefore
adjust
the
volume
control
of
the
TV
set
to
minimum.
(2)
Using
the
MZ-1D19
colour
display
unit
1)
Plug
the
square
connector
of
the
connection
cable
provided
with
the
MZ-1D19
into
the
connector
on
the
rear
panel
of
the
display
unit.
2)
Plug
the
DIN
connector
of
the
connection
cable
into
the
RGB
connector
on
the
rear
panel
of
the
MZ-800.
Note:
A
colour
TV
set
which
has
an
RGB
input
terminal
can
also
be
connected
to
the
RGB
connector
of
the
MZ-800.
Prepare
the
monitor
cable
as
described
in
the
instruction
manual
for
the
TV
set.
