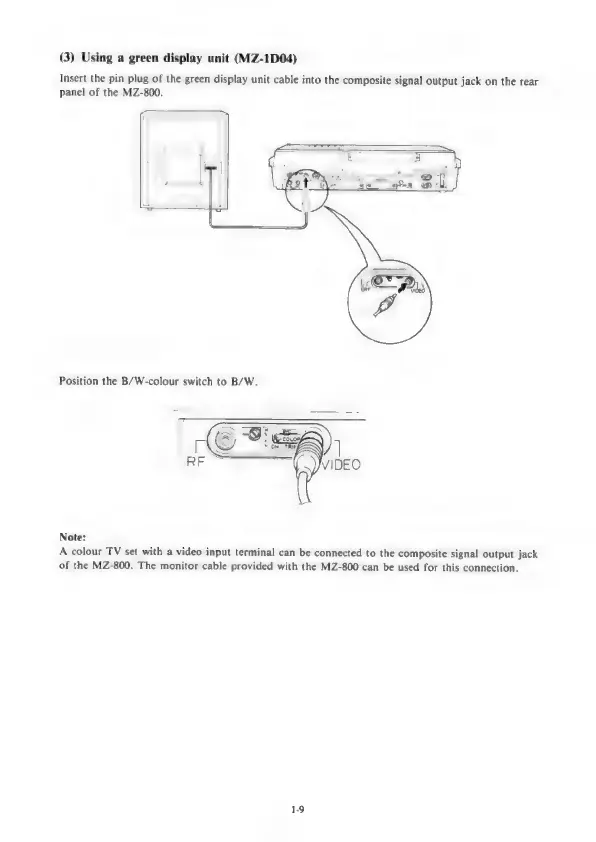

(3)
Using
a
green
display
unit
(MZ-1D04)
Insert
the
pin
plug
of
the
green
display
unit
cable
into
the
composite
signal
output
jack
on
the
rear
panel
of
the
MZ-800.
Position
the
B/W-colour
switch
to
B/W.
Note:
A
colour
TV
set
with
a
video
input
terminal
can
be
connected
to
the
composite
signal
output
jack
of
the
MZ-800.
The
monitor
cable
provided
with
the
MZ-800
can
be
used
for
this
connection.
