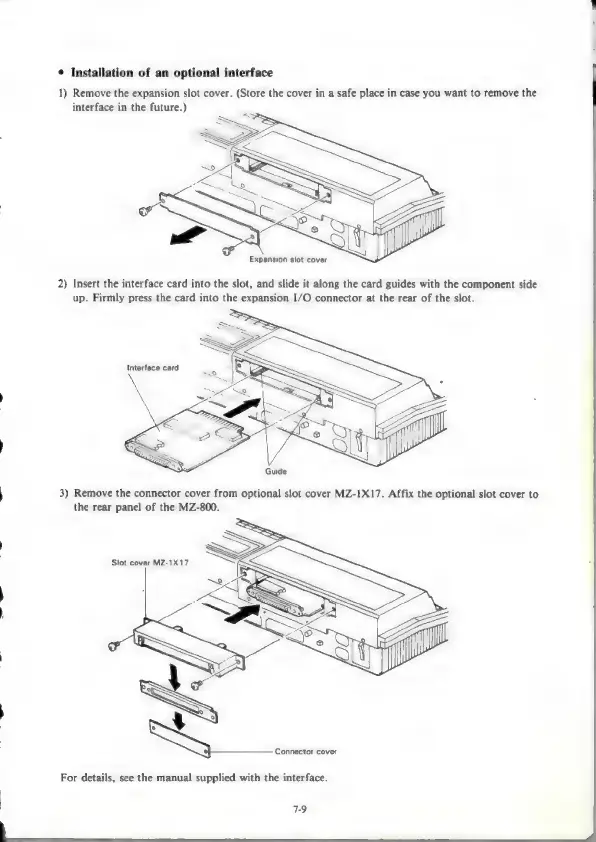

Installation
of
an
optional
interface
1)
Remove
the
expansion
slot
cover.
(Store
the
cover
in
a
safe
place
in
case
you
want
to
remove
the
interface
in
the
future.)
-
aS
Expansion
slot
cover
2)
Insert
the
interface
card
into
the
slot,
and
slide
it
along
the
card
guides
with
the
component
side
up.
Firmly
press
the
card
into
the
expansion
I/O
connector
at
the
rear
of
the
slot.
Interface
card
Guide
3)
Remove
the
connector
cover
from
optional
slot
cover
MZ-1X17.
Affix
the
optional
slot
cover
to
the
rear
panel
of
the
MZ-800.
Slot
cover
MZ-1X17
For
details,
see
the
manual
supplied
with
the
interface.
1-9
