Part Names and Functions
Numbers in Z refer to the main pages in this operation manual where the
topic is explained.
2
45 6
3
7 8
9
1
11
12
13
15
14
10
16
17
18
19
2
45 6
3
7 8
9
1
11
12
13
15
14
10
16
17
18
19

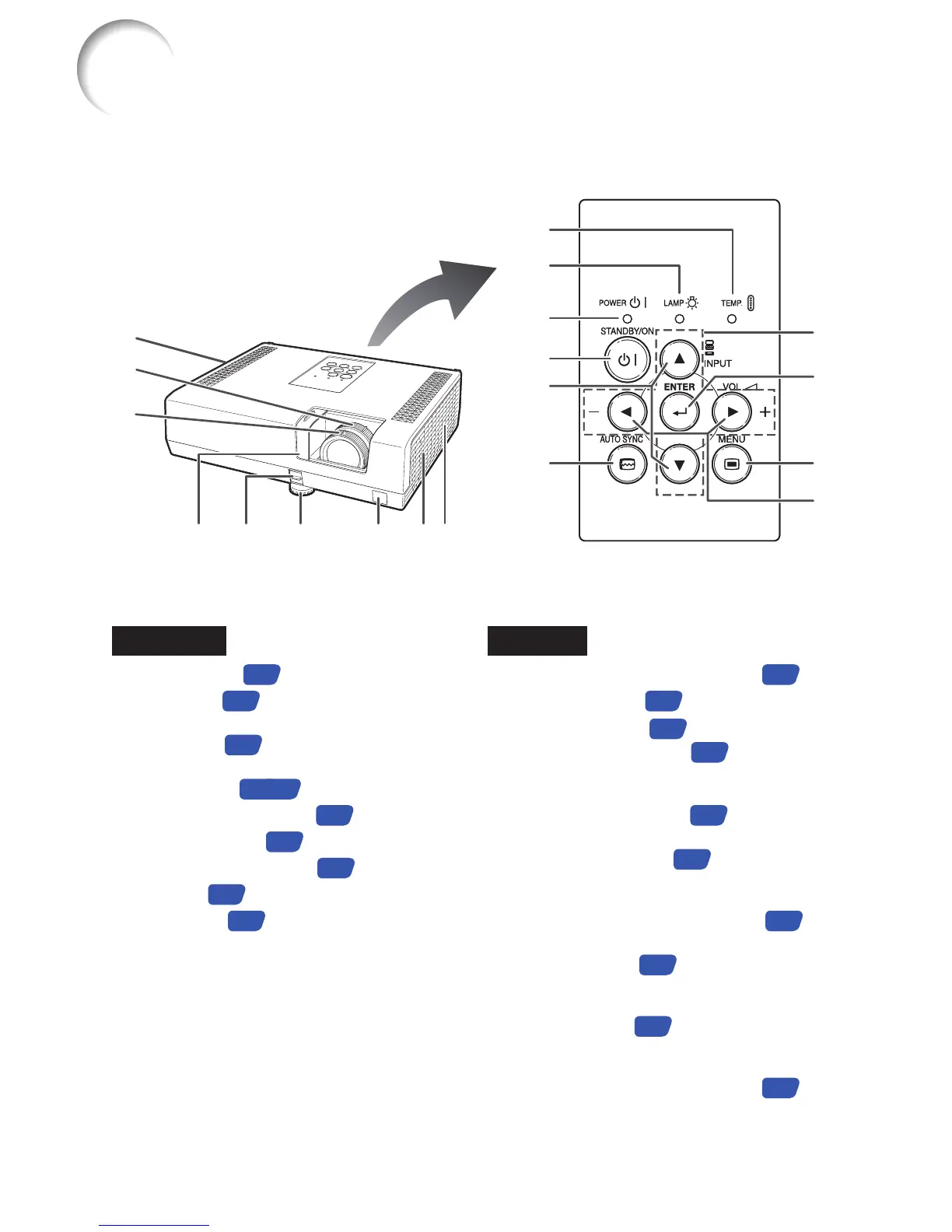

Front View
1 Exhaust vent
57
2 Zoom ring
28
For enlarging/reducing the picture.
3 Focus ring
27
For adjusting the focus.
4 Lens shutter
26, 30
5 HEIGHT ADJUST lever
28
6 Adjustment foot
28
7 Remote control sensor
15
8 Speaker
50
9 Intake vent
57
Top View
10 Temperature warning indicator
58
11 Lamp indicator
58
12 Power indicator
58
13 STANDBY/ON button
26
For turning the power on and putting the
projector into Standby mode.
14 INPUT buttons (P/R)
30
For switching Input mode.
15 AUTO SYNC button
34
For automatically adjusting images when
connected to a computer.
16 Adjustment buttons (P/R/O/Q)
39
For selecting menu items.
17 ENTER button
39
For setting items selected or adjusted on
the menu.
18 MENU button
39
For displaying adjustment and setting
screens.
19 VOL (Volume) buttons (–O/Q+)
30
For adjusting the speaker sound level.
