Sharp PN-CD701 Installation Guidelines

Confidential
Copyright © All rights reserved, SHARP CORPORATION
14
Size Angle
Position of
the door
Packed Body only
Width Depth Width Depth
70” 45
°
0 1,600 1,600 1,400 1,400
150 1,700 1,600 1,500 1,400
250 1,800 1,600 1,600 1,400

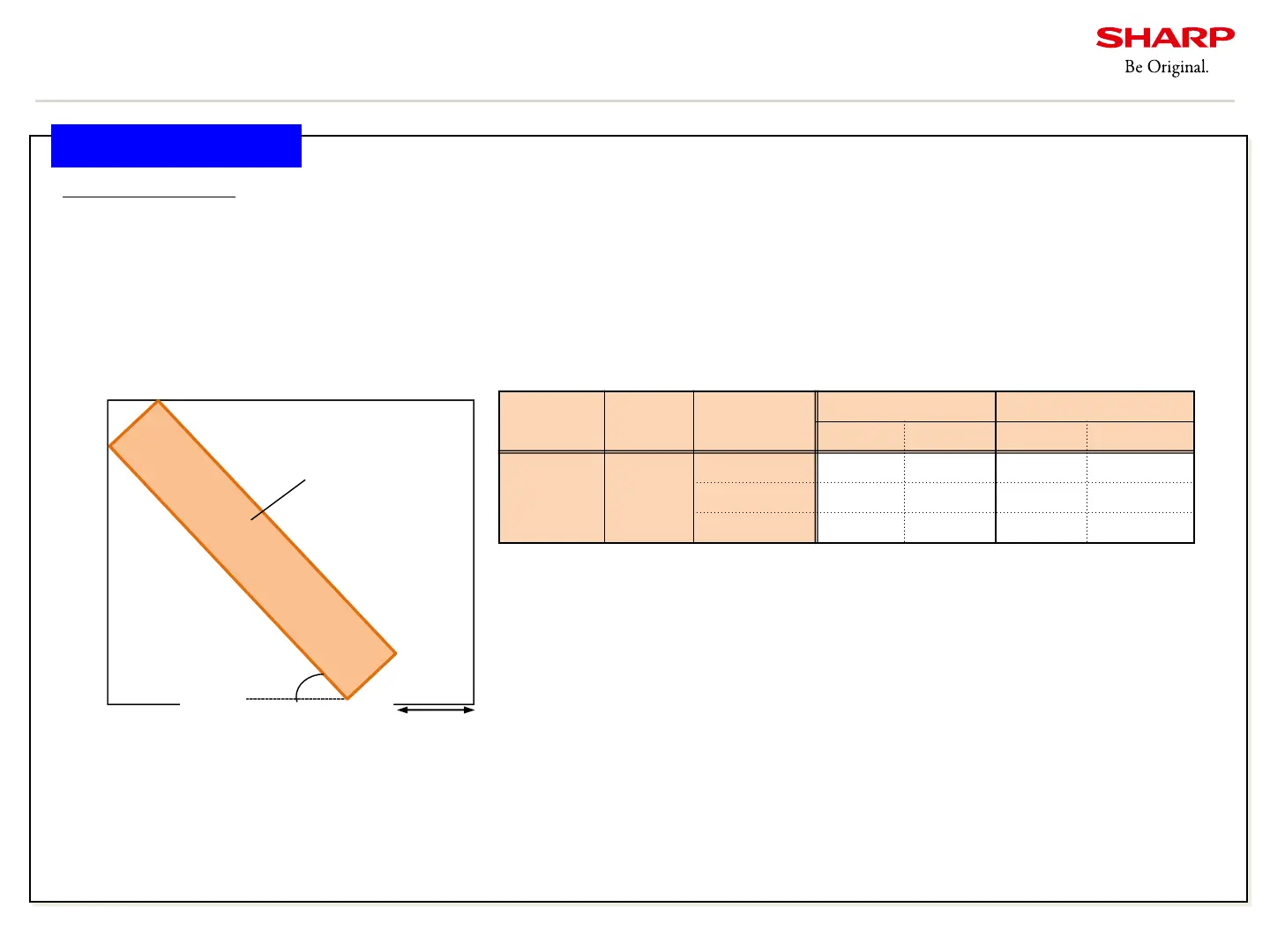

Use of elevator
（１） Carry in space
An elevator should have the size that can accommodate the product when using an elevator.
Caution: The packing or the product should not contact with the door and/or the wall when using an elevator.
The following is the list indicating angles and required sizes when the depth is insufficient and carrying diagonally.
Refer to the following list.
奥行き
幅
間口
出入り口位置
本体角
Product
width
dept
h
angle
width of the door
position of the door
Depth ： Depth of the elevator (length from front to back)
Width ： Width of the elevator
Width of the door ： Width of the door
Position of the door： Distance between the side wall to the edge of the door
Angle ： Tilting angle of the product when carrying in an elevator
* The door should have the same width of the product when the angle is 0 degree. 【ｍｍ】
6. Precautions for transportation of the packed display

Sharp PN-CD701 Specifications

General

Response time	6 ms
Display diagonal	70 \
Display brightness	350 cd/m²
Display technology	LCD
Native aspect ratio	16:9
Contrast ratio (typical)	4000:1
Display number of colors	1.06 billion colors
Display diagonal (metric)	176.6 cm
Viewing angle, horizontal	176 °
Number of simultaneous touchpoints	10
RMS rated power	24 W
Number of built-in speakers	2
Wi-Fi	-
USB version	2.0/3.2 Gen 1 (3.1 Gen 1)
USB ports quantity	5
Windows operating systems supported	Windows 10
AC input voltage	100-240 V
Heat dissipation	801 BTU/h
AC input frequency	50 - 60 Hz
Power consumption (standby)	- W
Power consumption (typical)	370 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Certification	CE, CB
Sustainability certificates	RoHS
Orientation	Horizontal/Vertical
Product color	Black
Product design	Digital signage flat panel
Bezel width (side)	41 mm
Placement supported	Indoor
Bezel width (bottom)	53 mm
Panel mounting interface	400 x 400 mm
Purpose	Corporate
Harmonized System (HS) code	85285210

Weight and Dimensions

Depth	90 mm
Width	1623 mm
Height	976.4 mm
Weight	65000 g
