Sharp PN-CD701 Installation Guidelines

Confidential
Copyright © All rights reserved, SHARP CORPORATION
7

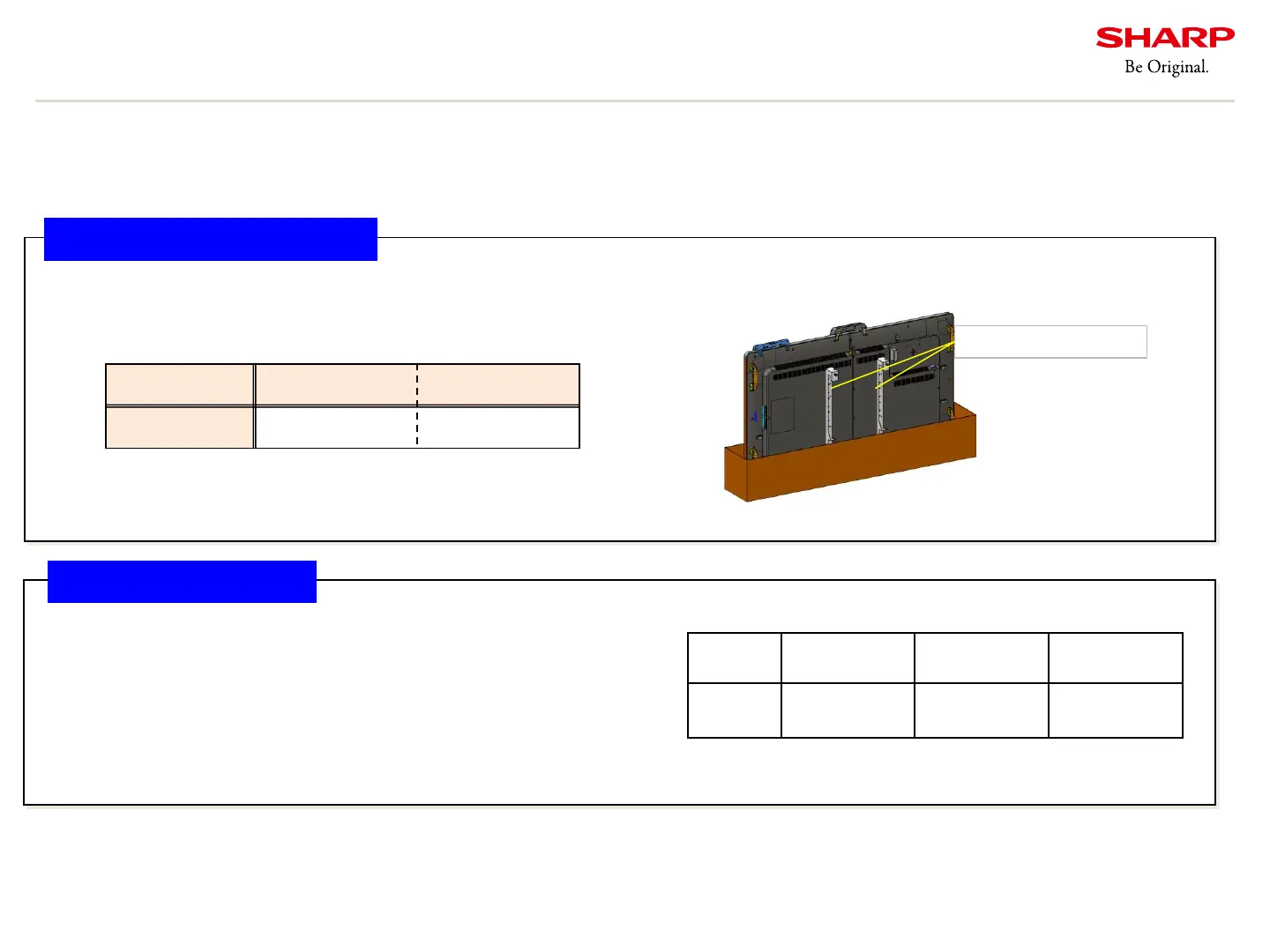

Recommended working space
We recommend to secure the following space to install the display and the stand.
(Recommended working space considering unpacking and clean up)
Stand installation place
The space shown on the right is necessary to install the stand.
(Sufficient clearance space of the display will be secured when installing
the display on the stand)
The stand must be placed on the flat floor.
Width Depth
Working space > 5,300mm > 2,400mm
Width Depth Height
70” type >1,800mm >1,200mm >2,300mm
*
*When installing at maximum height
Stand mounting bracket
5. Precautions for a stand installation
NOTE : Optional stand has NOT been set for PN-CD701. The stand described in chapter 5 is using only
for explanation.

Sharp PN-CD701 Specifications

General

Response time	6 ms
Display diagonal	70 \
Display brightness	350 cd/m²
Display technology	LCD
Native aspect ratio	16:9
Contrast ratio (typical)	4000:1
Display number of colors	1.06 billion colors
Display diagonal (metric)	176.6 cm
Viewing angle, horizontal	176 °
Number of simultaneous touchpoints	10
RMS rated power	24 W
Number of built-in speakers	2
Wi-Fi	-
USB version	2.0/3.2 Gen 1 (3.1 Gen 1)
USB ports quantity	5
Windows operating systems supported	Windows 10
AC input voltage	100-240 V
Heat dissipation	801 BTU/h
AC input frequency	50 - 60 Hz
Power consumption (standby)	- W
Power consumption (typical)	370 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Certification	CE, CB
Sustainability certificates	RoHS
Orientation	Horizontal/Vertical
Product color	Black
Product design	Digital signage flat panel
Bezel width (side)	41 mm
Placement supported	Indoor
Bezel width (bottom)	53 mm
Panel mounting interface	400 x 400 mm
Purpose	Corporate
Harmonized System (HS) code	85285210

Weight and Dimensions

Depth	90 mm
Width	1623 mm
Height	976.4 mm
Weight	65000 g
