Sharp PN-CD701 Installation Guidelines

Confidential
Copyright © All rights reserved, SHARP CORPORATION
8

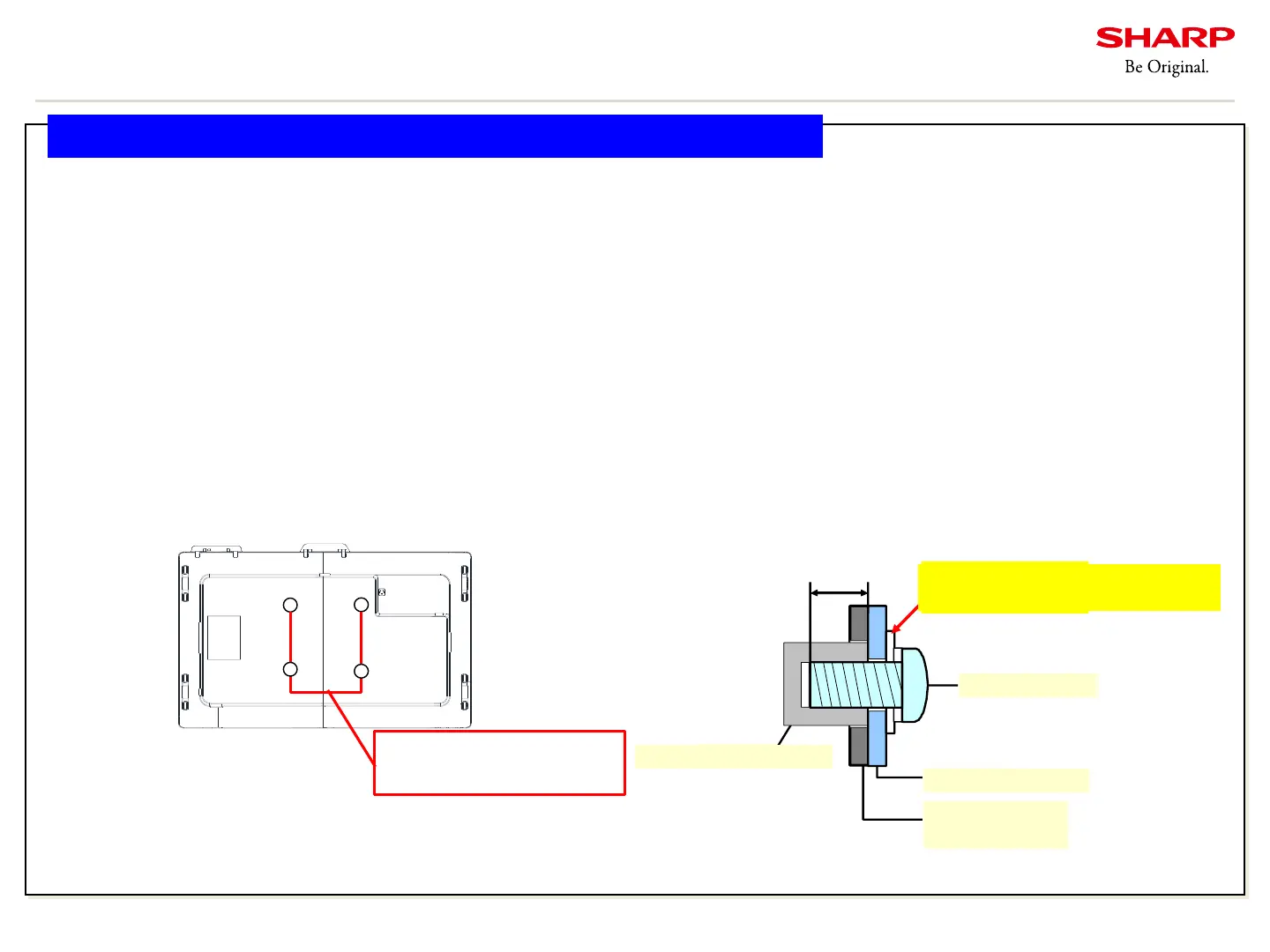

5. Precautions for a stand installation
VESA compliant mounting bracket for the display (M6 screw)
Back of the display
VESA compliant screw
holes
Please pay attention to the following items when using the screw holes on the back of IDP.
1) Please use 4 mounting screws to fix the display.
2) The diameter of screw hole for the mounting bracket should be less than or equal to 7.5mm.
Display may drop with an oversized hole.
3) Please use screws with correct length as described in the operation manual of the display.
Display may drop with a long screw.
4) Please take proper countermeasures to prevent the screws from becoming loose (For example :
using screws with a spring washer).
5) Please tighten screws hardly within 3N*m strength.
* Do not use an impact driver.
使用するネジ長さは、ディスプレイの
取扱説明書を確認してください。
固定用ネジ(M6)
取付金具
ディスプレイ
背面キャビネット
固定ボス
取付金具の固定穴
サイズΦ7.5mm以下
ネジの長さ 8mm-10mm
Captive nut for fixing
Rear cover of
display
Mounting bracket
Screw (M6)
Hole diameter for mounting bracket
(less than or equal to 7.5mm)
Length of screw 8-10mm

Sharp PN-CD701 Specifications

General

Response time	6 ms
Display diagonal	70 \
Display brightness	350 cd/m²
Display technology	LCD
Native aspect ratio	16:9
Contrast ratio (typical)	4000:1
Display number of colors	1.06 billion colors
Display diagonal (metric)	176.6 cm
Viewing angle, horizontal	176 °
Number of simultaneous touchpoints	10
RMS rated power	24 W
Number of built-in speakers	2
Wi-Fi	-
USB version	2.0/3.2 Gen 1 (3.1 Gen 1)
USB ports quantity	5
Windows operating systems supported	Windows 10
AC input voltage	100-240 V
Heat dissipation	801 BTU/h
AC input frequency	50 - 60 Hz
Power consumption (standby)	- W
Power consumption (typical)	370 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Certification	CE, CB
Sustainability certificates	RoHS
Orientation	Horizontal/Vertical
Product color	Black
Product design	Digital signage flat panel
Bezel width (side)	41 mm
Placement supported	Indoor
Bezel width (bottom)	53 mm
Panel mounting interface	400 x 400 mm
Purpose	Corporate
Harmonized System (HS) code	85285210

Weight and Dimensions

Depth	90 mm
Width	1623 mm
Height	976.4 mm
Weight	65000 g
