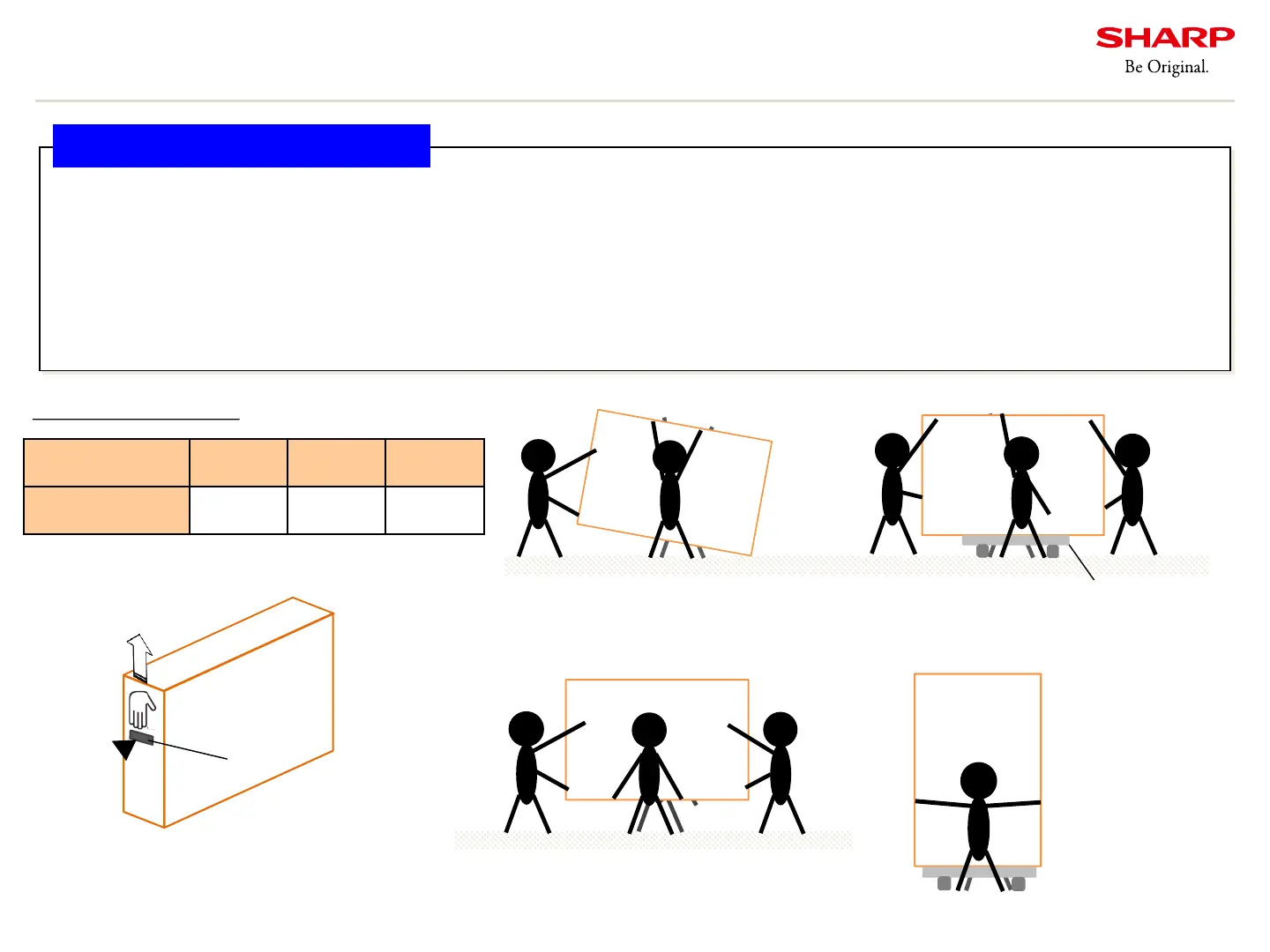

Transportation of packed display
6. Precautions for transportation of the packed display
×
Hand grip
Cart
W D H
PN-CD701 1,810 298 1,123
＜Packing dimension＞
（ｍｍ）
・ More than 4 persons are needed to move the packed display.
・ Transport the packed display on a cart.
(In case cart cannot be used (ex. stair steps), move the display with more than 4 persons.)
・ Move the packed display in landscape position. Portrait position is not supported in principle.
(Temporary transportation in portrait position in an elevator for example is OK.)
Use the shown handgrip to lift up the packed display.
Hold the side of the package so that it will not fall down.
In case a cart cannot be used, move the packed display
by more than 4 persons, with each person holding each
side of the package.
Packed display cannot
be transported in
portrait position. In
case transportation in
landscape position is
impossible, it may be
transported
temporary in portrait
position.
Lift either side of the package in order to place it
onto the cart. Package must be held by other persons
in order to avoid falling down.
(2 persons are holding the package in above illustration)
While transporting the packed display by cart, hold the
all sides of the displays by 4 persons.
