Sharp PN-CD701 Installation Guidelines

Confidential
Copyright © All rights reserved, SHARP CORPORATION
22

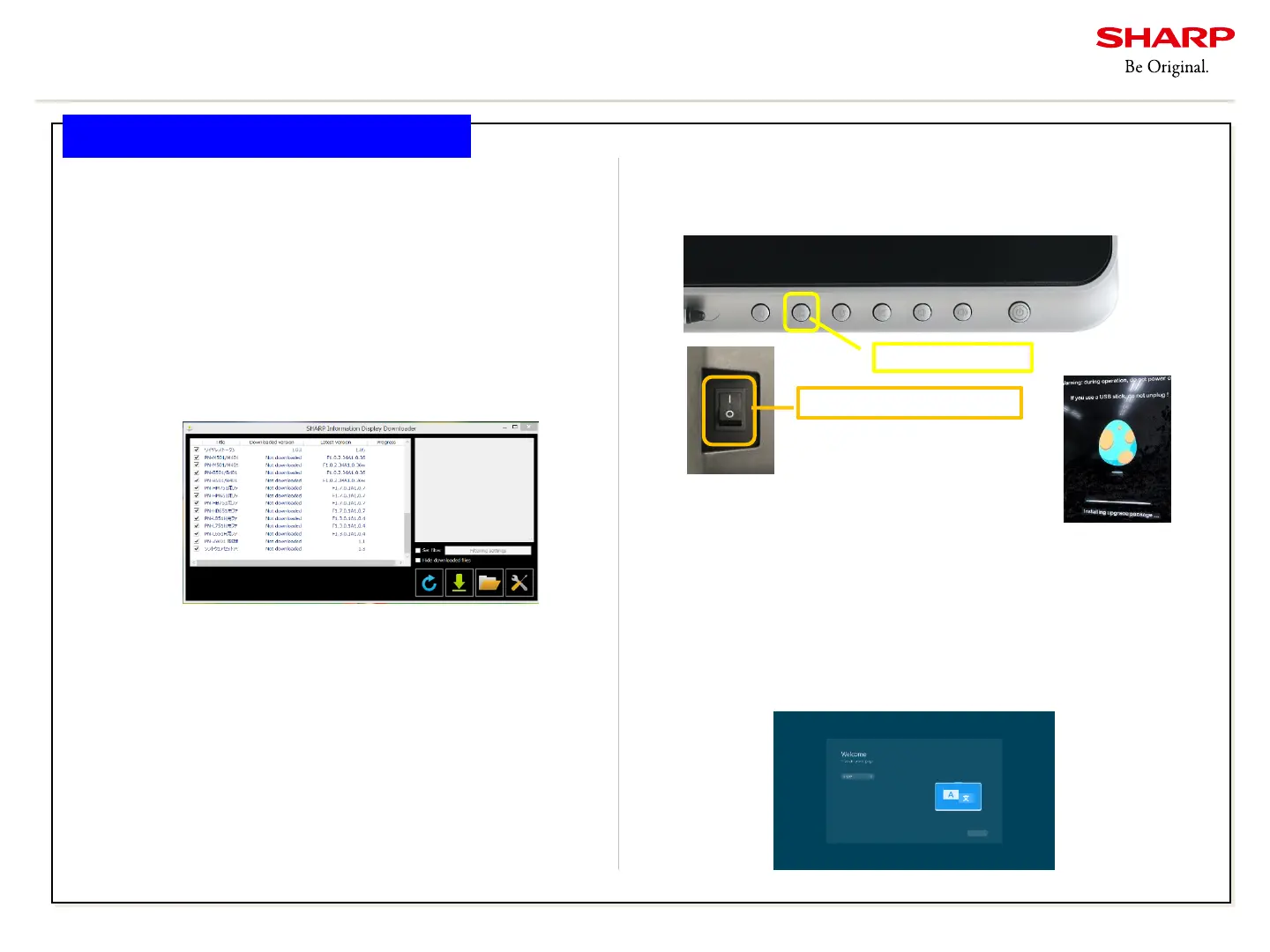

Update Firmware – USB Flash Drive
13. Notes on setup
1. Start your computer and Download the “PN-
CD701” Zip file from the SHARP Information
Display Downloader*.
If there is no environment to connect to the
Internet, update the firmware using USB flash drive.
If the FW update is performed in this way, the
setting value will be cleared, so reconfiguration is
required. Update with OOBE as much as possible.
2. Unzip the downloaded file and save the
“FWU_Config” file and “WCD70” directory to the
USB memory directly under the root.
Figure. SHARP Information Display Downloader
3. Insert the USB flash drive into the USB terminal
of “FOR CAM”.
4. Turn on the power switch while pressing the second
button from the left as seen from the front.
Press this button.*
Turn on this power switch.
5. Wait for the update to complete. (Approximately 10
minutes)
Do not turn off the power until the OOBE is displayed
as it may cause a malfunction.
*Do not let go of the buttons until the
“Egg” picture appears on the screen.
Figure. OOBE
Figure. Egg picture
*If you do not have the tool, please contact an authorized SHARP
servicing dealer or service center.

Sharp PN-CD701 Specifications

General

Response time	6 ms
Display diagonal	70 \
Display brightness	350 cd/m²
Display technology	LCD
Native aspect ratio	16:9
Contrast ratio (typical)	4000:1
Display number of colors	1.06 billion colors
Display diagonal (metric)	176.6 cm
Viewing angle, horizontal	176 °
Number of simultaneous touchpoints	10
RMS rated power	24 W
Number of built-in speakers	2
Wi-Fi	-
USB version	2.0/3.2 Gen 1 (3.1 Gen 1)
USB ports quantity	5
Windows operating systems supported	Windows 10
AC input voltage	100-240 V
Heat dissipation	801 BTU/h
AC input frequency	50 - 60 Hz
Power consumption (standby)	- W
Power consumption (typical)	370 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Certification	CE, CB
Sustainability certificates	RoHS
Orientation	Horizontal/Vertical
Product color	Black
Product design	Digital signage flat panel
Bezel width (side)	41 mm
Placement supported	Indoor
Bezel width (bottom)	53 mm
Panel mounting interface	400 x 400 mm
Purpose	Corporate
Harmonized System (HS) code	85285210

Weight and Dimensions

Depth	90 mm
Width	1623 mm
Height	976.4 mm
Weight	65000 g
