Sharp PN-CD701 User Manual

10
E

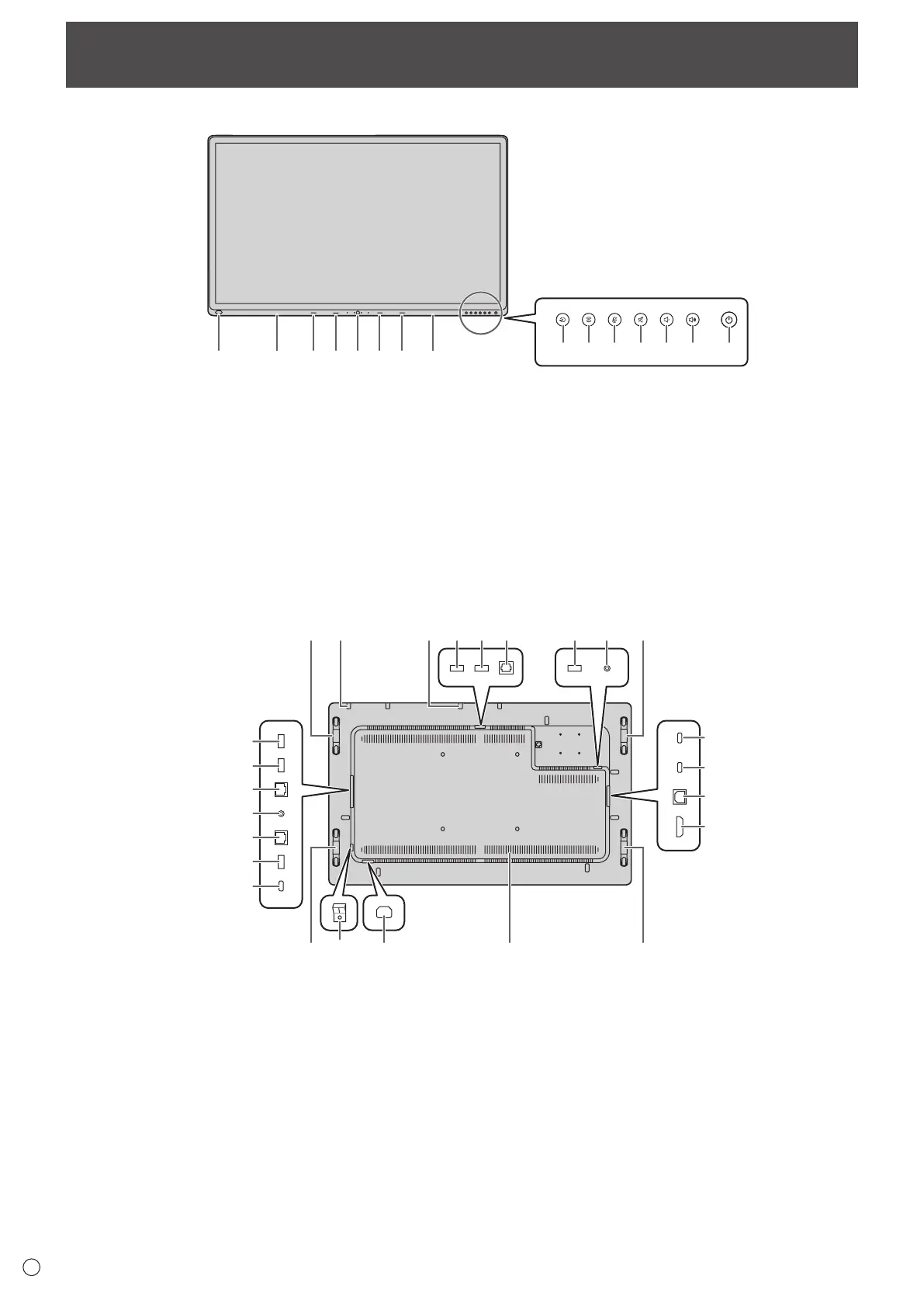

Part Names
n
Front view
3 4 5 6 71
2 2
9 10 11 12 138 14
n
Rear view
17 1520 1819
21
22
23
24
34
33
32
31
30
29
28
27 26 25 15
15 35 36
15
16
1. USB port for external source (USB 3.0 compliant) (See
page 13.)
2. Pen Tray (See page 17.)
3. LED indicator for USB Type C 1 source
4. LED indicator for USB Type C 2 source
5. Windows button
6. LED indicator for HDMI
7. LED indicator for Wireless LAN
15. Handles
16. 3.5 mm jack for service (See page 13.)
17. USB port for camera 2 (See page 13.)
18. Optical audio input terminal (S/PDIF) (See page 13.)
19. USB port for camera 1 (See page 13.)
20. USB port for external source (USB 3.0 compliant) (See page 13.)
21. USB Type C 1 input terminal (See page 12.)
22. USB Type C 2 input terminal (See page 12.)
23. USB Type B input terminal for touch back (pair with HDMI input terminal) (See page 12.)
8. INPUT button (See page 21.)
9. MENU button (See page 21.)
10. MIC MUTE button (See page 21.)
11. MUTE button (See page 21.)
12. VOLUME DOWN button (See page 21.)
13. VOLUME UP button (See page 21.)
14. POWER button (See page 16.)

Sharp PN-CD701 Specifications

General

Response time	6 ms
Display diagonal	70 \
Display brightness	350 cd/m²
Display technology	LCD
Native aspect ratio	16:9
Contrast ratio (typical)	4000:1
Display number of colors	1.06 billion colors
Display diagonal (metric)	176.6 cm
Viewing angle, horizontal	176 °
Number of simultaneous touchpoints	10
RMS rated power	24 W
Number of built-in speakers	2
Wi-Fi	-
USB version	2.0/3.2 Gen 1 (3.1 Gen 1)
USB ports quantity	5
Windows operating systems supported	Windows 10
AC input voltage	100-240 V
Heat dissipation	801 BTU/h
AC input frequency	50 - 60 Hz
Power consumption (standby)	- W
Power consumption (typical)	370 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Certification	CE, CB
Sustainability certificates	RoHS
Orientation	Horizontal/Vertical
Product color	Black
Product design	Digital signage flat panel
Bezel width (side)	41 mm
Placement supported	Indoor
Bezel width (bottom)	53 mm
Panel mounting interface	400 x 400 mm
Purpose	Corporate
Harmonized System (HS) code	85285210

Weight and Dimensions

Depth	90 mm
Width	1623 mm
Height	976.4 mm
Weight	65000 g
