Sharp PN-CD701 User Manual

12
E

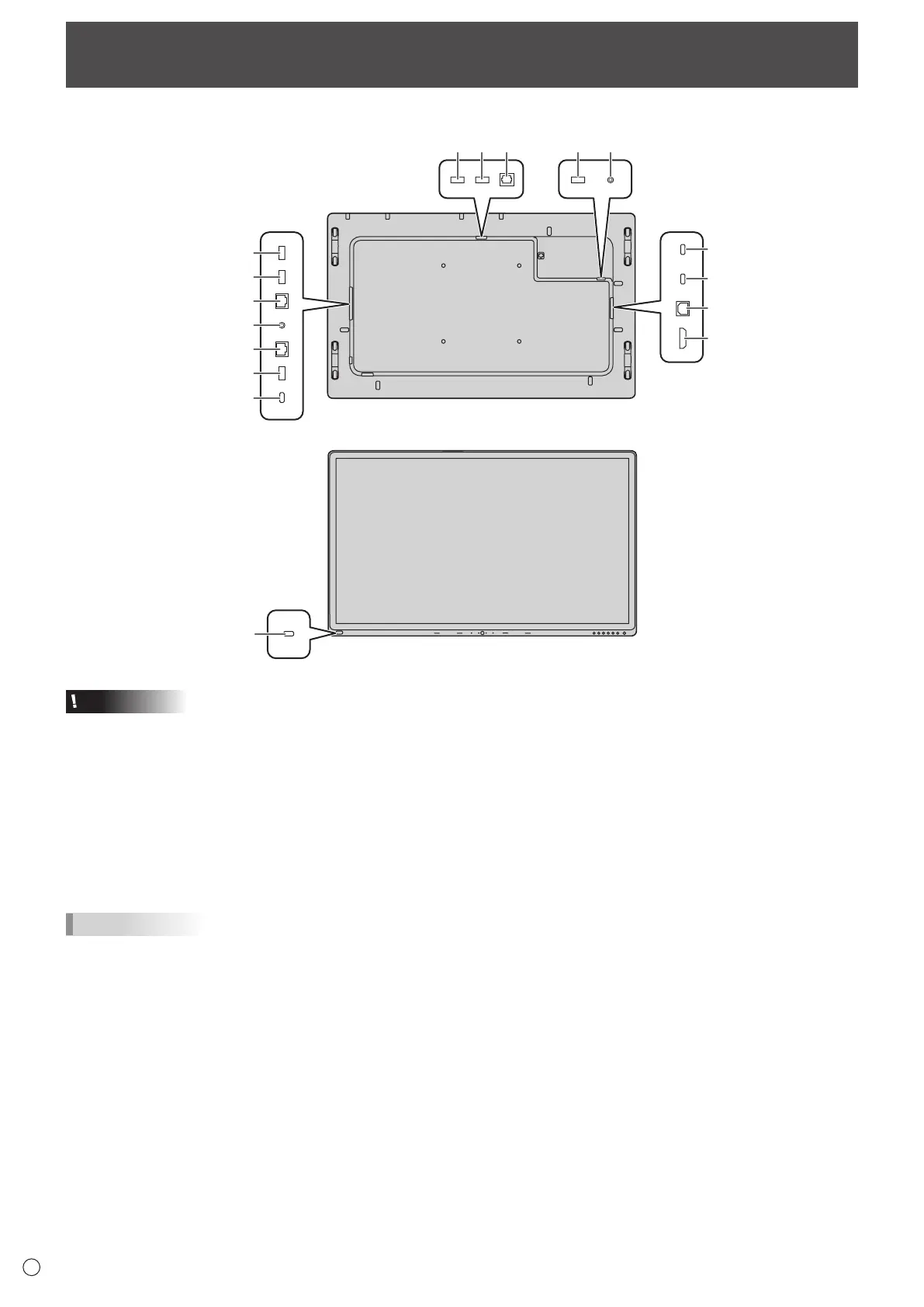

Connecting Peripheral Equipment
Caution
• Besuretoturnoffthemainpowerswitchanddisconnect
the plug from the power outlet before connecting/
disconnecting cables. Also, read the manual of the
equipment to be connected.
• Becarefulnottoconfusetheinputterminalwiththeoutput
terminal when connecting cables. Accidentally reversing
cables connected to the input and output terminals may
cause malfunctions and the other problems.
• Donotuseanycablethathasadamagedordeformed
terminal. Using such cables may cause malfunctions.
TIPS
• Imagesmaynotbedisplayedproperlydependingonthe
computer (video card) to be connected.
• Iftheaudiooutputfromtheplaybackdeviceisconnected
directly to speakers or other devices, the video on the
monitor may appear delayed from the audio portion.
Audio should be played through this monitor by connecting
the playback device to the monitor’s audio input, and
connecting the monitor’s audio output to the speakers or
other devices.
• IfthecomputerisconnectedtothismonitorwithaUSB
Type C cable, the device recognition sound of OS may
sound several times.
1. USB Type C 1 input terminal
2. USB Type C 2 input terminal
• UsetheUSBTypeCcable(supplied).
• YoucanconnectadevicethatsupportsDisplayPort
alternate mode.
In order to supply power to connected devices, it is
necessary to support the Power delivery standard.
• ConnecttheUSBTypeCextendcable(supplied)between
the USB Type C cable (supplied) and the external device.
When connecting/disconnecting to the external device,
plug/unplug the USB Type C extend cable to prevent
damage to the USB Type C cable.
3. HDMI input terminal
• UsetheHDMIcable(supplied).
4. USB Type B input terminal for touch back (pair with
HDMI input terminal)
• Tousethetouchpanelwithacomputer,connectthetouch
panel to the computer with a USB A to B cable (supplied).
5. USB port for IoT sensor hub/USB devices
6. USB port for IoT sensor hub/USB devices
• TousetheIoTsensorhub,connecttheIoTsensorhubto
these ports with the Micro USB cable (supplied).
7. Line out Audio output terminal
n
Rear view
1
2
4
3
5
6
9
7
8
10
11
1714 1213 16
n
Front view
15

Sharp PN-CD701 Specifications

General

Response time	6 ms
Display diagonal	70 \
Display brightness	350 cd/m²
Display technology	LCD
Native aspect ratio	16:9
Contrast ratio (typical)	4000:1
Display number of colors	1.06 billion colors
Display diagonal (metric)	176.6 cm
Viewing angle, horizontal	176 °
Number of simultaneous touchpoints	10
RMS rated power	24 W
Number of built-in speakers	2
Wi-Fi	-
USB version	2.0/3.2 Gen 1 (3.1 Gen 1)
USB ports quantity	5
Windows operating systems supported	Windows 10
AC input voltage	100-240 V
Heat dissipation	801 BTU/h
AC input frequency	50 - 60 Hz
Power consumption (standby)	- W
Power consumption (typical)	370 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Certification	CE, CB
Sustainability certificates	RoHS
Orientation	Horizontal/Vertical
Product color	Black
Product design	Digital signage flat panel
Bezel width (side)	41 mm
Placement supported	Indoor
Bezel width (bottom)	53 mm
Panel mounting interface	400 x 400 mm
Purpose	Corporate
Harmonized System (HS) code	85285210

Weight and Dimensions

Depth	90 mm
Width	1623 mm
Height	976.4 mm
Weight	65000 g
