Sharp PN-L602B User Manual

16
E
Caution
• TurnonthemonitorrstbeforeturningonthePCor
playback device.

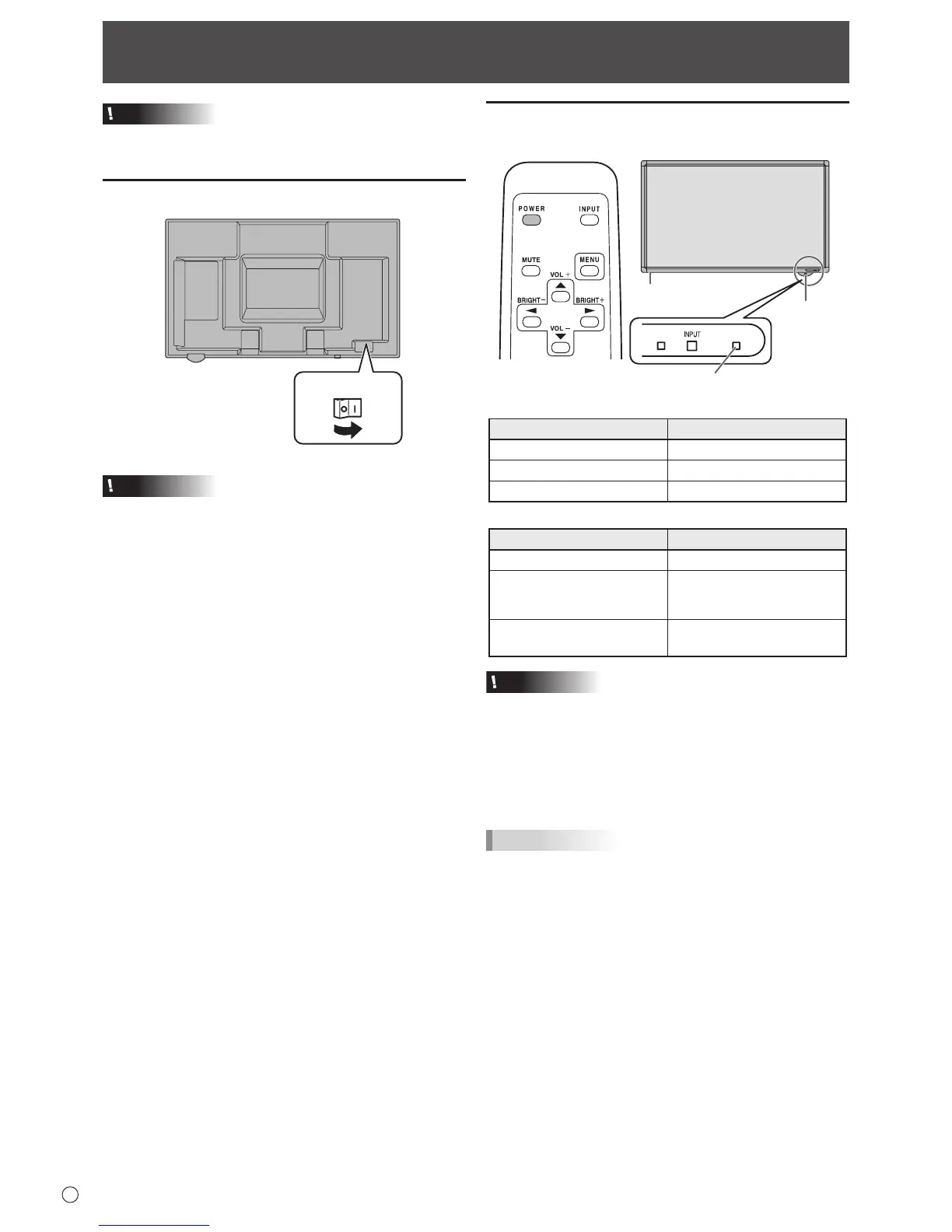

Turning on the main power
Main power switch
Caution
• Themainpowermustbeturnedon/offwiththemainpower
switch.Donotconnect/disconnectthepowercordorturn
the breaker on/off while the main power switch is on.
• WhenswitchingthemainpowerswitchorthePOWER
buttonoffandbackon,alwayswaitforatleast5seconds.
• Foracompleteelectricaldisconnection,pulloutthemain
plug.
Turning Power On/Off
Turning power on/off
PressthePOWERbuttontoturnthepowerON/OFF.
POWER
button
Power LED
Touch panel power LED
• StatusofthepowerLED
Status Status of the monitor
Greenlit Power on
Orange lit Power off (Standby mode)
Greenashing Input signal waiting mode
• StatusofthetouchpanelpowerLED
Status Status of the touch panel
Greenlit Operating normally
Blinkingorange
Alternately blinking green and
orange
Initializing
Off
Touch panel off (power not
supplied, etc.)
Caution
• WhenswitchingthemainpowerswitchorthePOWER
buttonoffandbackon,alwayswaitforatleast5seconds.
A short interval may result in a malfunction.
• WhenthetouchpanelpowerLEDblinksorangeor
alternately blinks green and orange, the touch panel is
beinginitialized.Donottouchthetouchpanelatthistime.
Touching the touch panel may cause malfunctioning.
TIPS
• Whenthemainpowerswitchisoff,themonitorcannotbe
turned on.
• Ifthemonitorisintheinputsignalstandbymodeandyou
pressthePOWERbuttonontheremotecontrolunit,the
monitor enters standby mode.
• SettingtheSCHEDULEashesthepowerLEDalternately
in red and orange in standby mode.
• Todisablethelogoscreenfromdisplayingwhenturning
thepowerON,setLOGOSCREENtoOFFontheSETUP
menu. (See page 26.)

Sharp PN-L602B Specifications

General

Dimensions (WxDxH)	1440 x 101 x 855 mm
Ethernet LAN (RJ-45) ports	1
Display viewable area (HxV)	1329.1 x 747.6 mm
3D	No
Pixel pitch	0.692 x 0.692 mm
Aspect ratio	16:9
Screen shape	Flat
Display diagonal	60 \
Separate H/V sync	Yes
Display brightness	300 cd/m²
Contrast ratio (typical)	3000:1
Display number of colors	1.073 billion colors
Display diagonal (metric)	152.5 cm
Viewing angle, horizontal	160 °
Product color	Gray
Compatible operating systems	Windows XP, Windows Vista, Windows 7
Cables included	AC, USB
RS-232 ports	2
AC input voltage	110 - 240 V
Power supply type	AC
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	165 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
RMS rated power	14 W

Weight and Dimensions

Weight (without stand)	54000 g
