• Wheninstalling,removingormovingthemonitor,ensurethatthisiscarriedoutbyatleast2people.
• Besuretouseawall-mountbracketdesignedordesignatedformountingthemonitor.
• Thismonitorisdesignedtobeinstalledonaconcretewallorpillar.Reinforcedworkmightbenecessaryforsomematerials
such as plaster / thin plastic board / wood before starting installation.
This monitor and bracket must be installed on a wall which can endure at least 4 times or more the weight of the monitor.
Install by the most suitable method for the material and the structure.
• ToattachaVESA-compliantmountingbracket,useM6screwsthatare5/16inch(8mm)to3/8inch(10mm)longerthanthe
thickness of the mounting bracket.
• Aftermounting,pleasecarefullyensurethemonitorissecure,andnotabletocomeloosefromthewallormount.
• DonotuseanyscrewholesotherthanVESAholesforinstallation.
Mounting Precautions
(For SHARP dealers and service engineers)
n

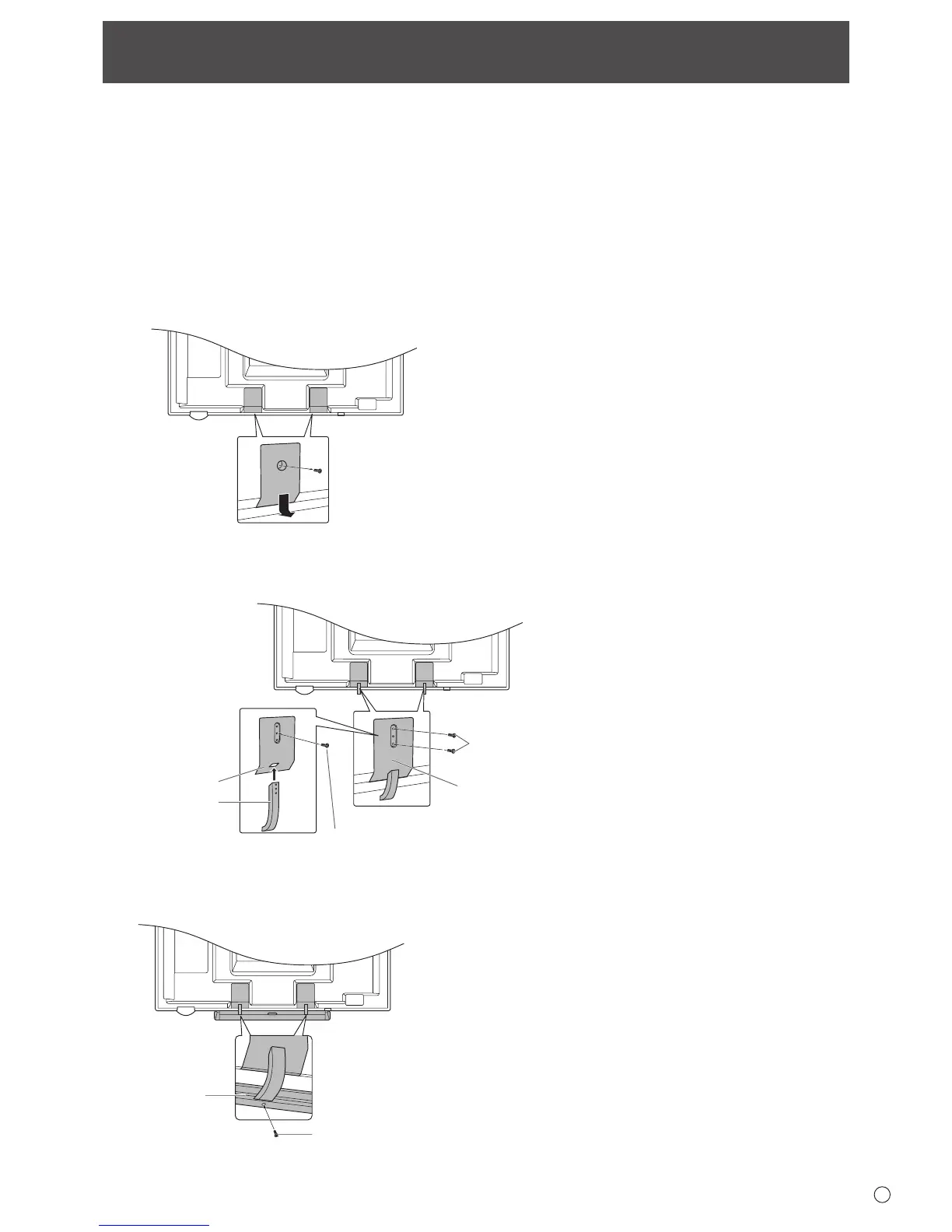

Attaching the Tray
1. Remove the cover from the back of the monitor.
2. Secure the tray mounting tting.
Secureusingthescrewremovedinstep1and2M5tray
mounting screws (supplied).
(3)
(2)
(1)
M5 tray mounting screws
(supplied)
Tray mounting
fitting
Screw removed in step 1
Cover (supplied)
Bracket (supplied)
3. Secure the tray.
Insertthetrayintothetraymountingttingandsecurewith
2 M4 tray mounting screws (supplied).
Tray
(supplied)
M4 tray mounting screws
(supplied)

Sharp PN-L602B Specifications

General

Dimensions (WxDxH)	1440 x 101 x 855 mm
Ethernet LAN (RJ-45) ports	1
Display viewable area (HxV)	1329.1 x 747.6 mm
3D	No
Pixel pitch	0.692 x 0.692 mm
Aspect ratio	16:9
Screen shape	Flat
Display diagonal	60 \
Separate H/V sync	Yes
Display brightness	300 cd/m²
Contrast ratio (typical)	3000:1
Display number of colors	1.073 billion colors
Display diagonal (metric)	152.5 cm
Viewing angle, horizontal	160 °
Product color	Gray
Compatible operating systems	Windows XP, Windows Vista, Windows 7
Cables included	AC, USB
RS-232 ports	2
AC input voltage	110 - 240 V
Power supply type	AC
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	165 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
RMS rated power	14 W

Weight and Dimensions

Weight (without stand)	54000 g
