Sharp PN-L752B Setup Manual

6
E

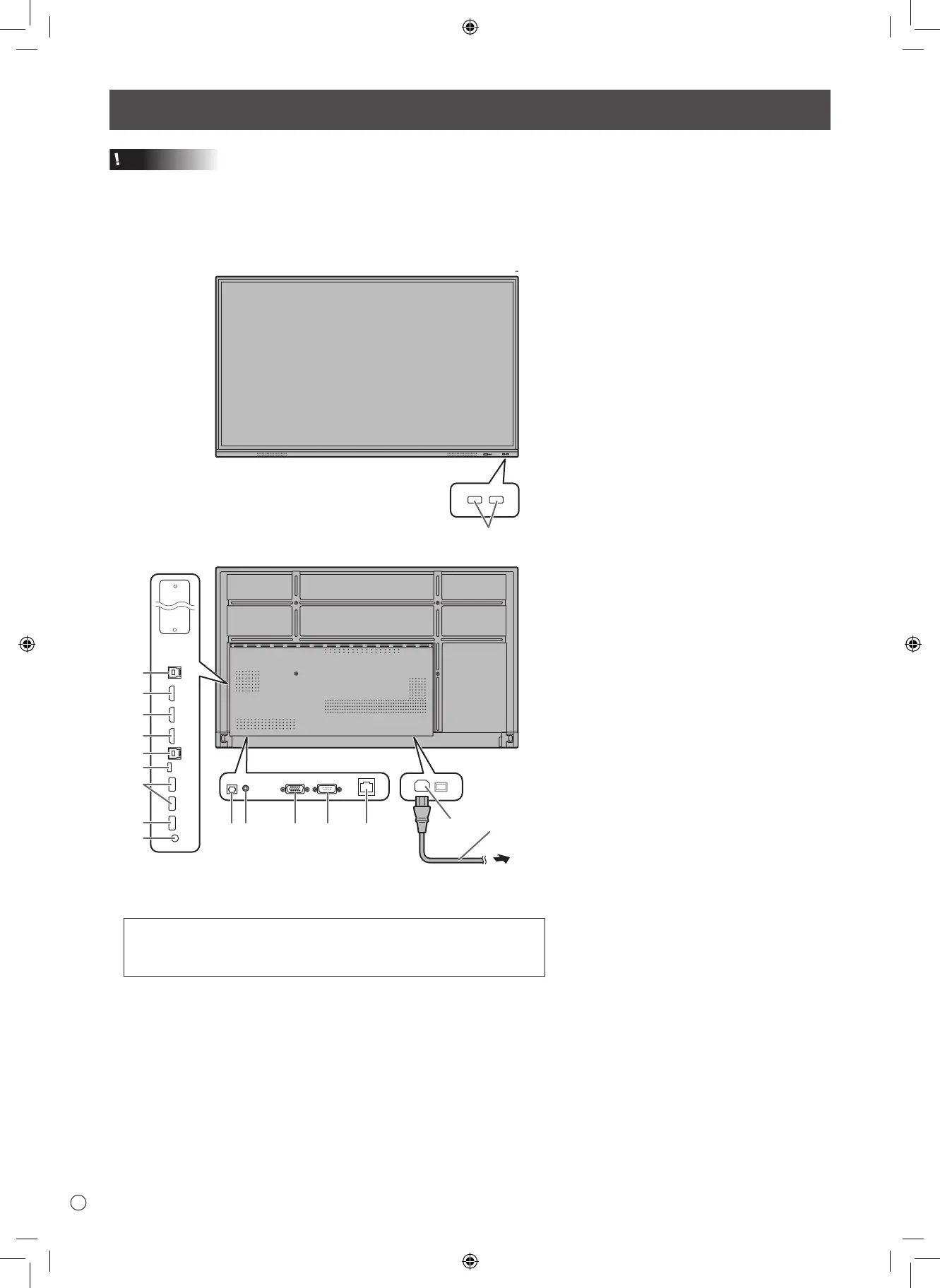

Connections
Caution
• Be sure to turn off the main power switch and disconnect the plug from the power outlet before connecting/disconnecting
cables. Also, read the manual of the equipment to be connected.
• Be careful not to confuse the input terminal with the output terminal when connecting cables. Accidentally reversing cables
connected to the input and output terminals may cause malfunctions and the other problems.
 Front view

Rear view
1
4
5
6
3
2
7
1
9
8
10 11 12 13 14
15
For power outlet
Power cord
(Supplied)
1. USB port (USB 3.0 compliant)
2. TOUCH PANEL1 terminal
(for HDMI1/HDMI2)
3. TOUCH PANEL2 terminal
(for HDMI3/D-sub)
4. HDMI1 input terminal
5. HDMI2 input terminal
6. HDMI3 input terminal
7. USB Type C port
8. USB port (USB 2.0 compliant)
9. Audio output terminal
10. Digital audio output (optical)
terminal
11. Audio input terminal
12. D-sub input terminal
13. RS-232C input terminal
14. LAN terminal
15. AC input terminal
The TOUCH PANEL terminal is USB3.0 Type B.
Although the connector shape is different, the supplied USB cable (USB
2.0 Type B) can be connected to the TOUCH PANEL terminal.
