Sharp PRO-60X5FD - Removing of Speaker (L;R), 3 D IR Emitter Unit, R;C OPC Unit, WiFi Unit and Decoration Frame (Top;Bottom;L;R).

PRO-60/70X5FD
4 – 10

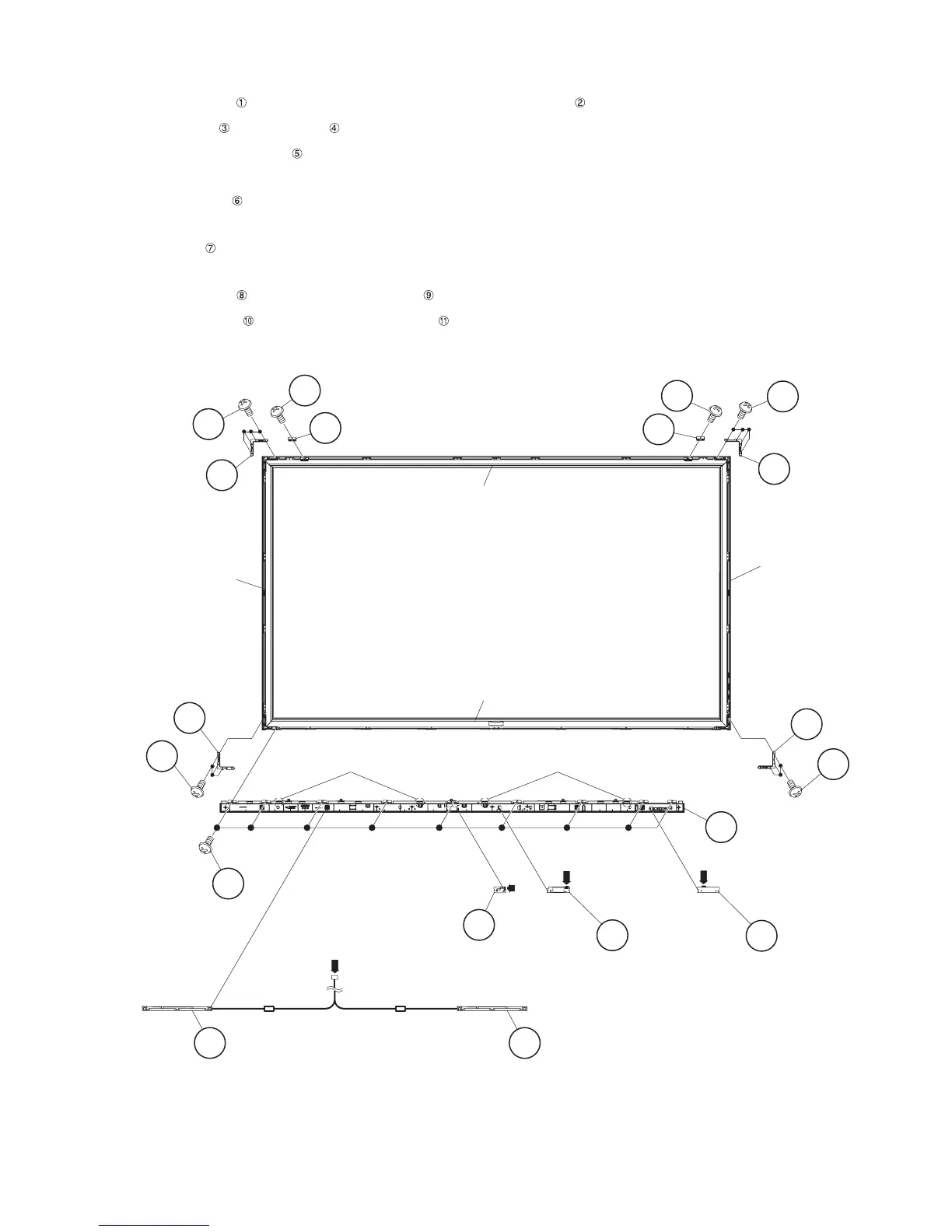

5. Removing of Speaker (L/R), 3D IR Emitter Unit, R/C OPC Unit, WiFi Unit and Decoration Frame (Top/Bottom/
L/R).
1. Remove the 9 lock screws , 4 hooks and detach the Decoration Frame Ass’y (Bottom) .
2. Detach the Speaker (L) and Speaker (R) .
3. Disconnect the 3D IR EMITTER Unit .
4. Disconnect the IR wire.
5. Detach the R/C OPC Unit .
6. Disconnect the RA wire.
7. Detach the WiFi Unit .
8. Disconnect the UB wire.
9. Remove the 2 lock screws and detach the 2 Fixing Hooks .
10.Remove the 14 lock screws and detach the 4 Corner Angles .
11.Remove the Decoration Frame (Top/Bottom/L/R).
Corner Angle
Corner Angle
10
10
11
10
8
8
10
9
9
11
Corner Angle
Fixing Hook
Fixing Hook
11
Corner
Angle
11
[UB]
[IR]
[RA]
[SP]
Decoration Frame (Top)
Decoration Frame Ass'y (Bottom)
Hook Hook
Decoration
Frame (R)
Decoration
Frame (L)
4
1
Speaker (R) 3 Speaker (L)
7 WiFi Unit
5
3D IR
EMITTER Unit
2
Bottom Body
Ass'y
6
R/C OPC
Unit
