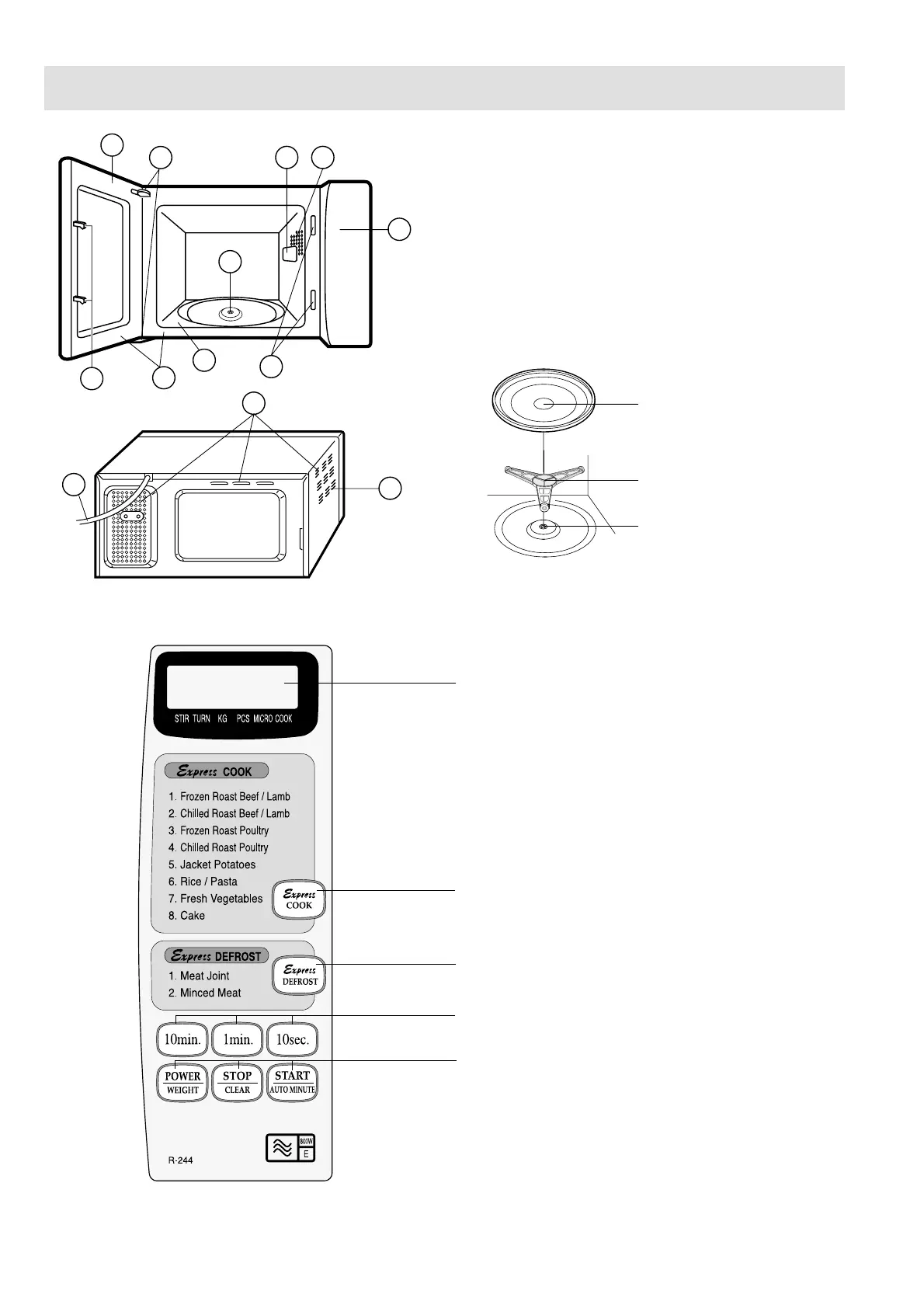

R-244M -
APPEARANCE VIEW
1. Door
2. Door hinges
3. Waveguide cover
4. Oven lamp
5. Control panel
6. Rubber seal
7. Door latch openings
8. Oven cavity
9. Door seals and sealing surfaces
10. Safety door latches
11. Ventilation openings
12. Outer case
13. Power supply cord
3 4
1
10
7
6
2
9
8
11
5
12
13
Turntable
Roller stay
Seal packing
1. Place the roller stay on the floor of the oven cavity,
engaging shaft.
2. Then place the turntable on the roller stay.
1. DIGITAL DISPLAY
2. EXPRESS COOK pad
3. EXPRESS DEFROST pad
4. TIMER Pads
5. POWER /WEIGHT STOP/CLEAR
START/AUTO MINUTE Pads
1.
2.
3.
4.
5.
OVEN
