R969(W)
4 – 1
R969(W)
Service Manual

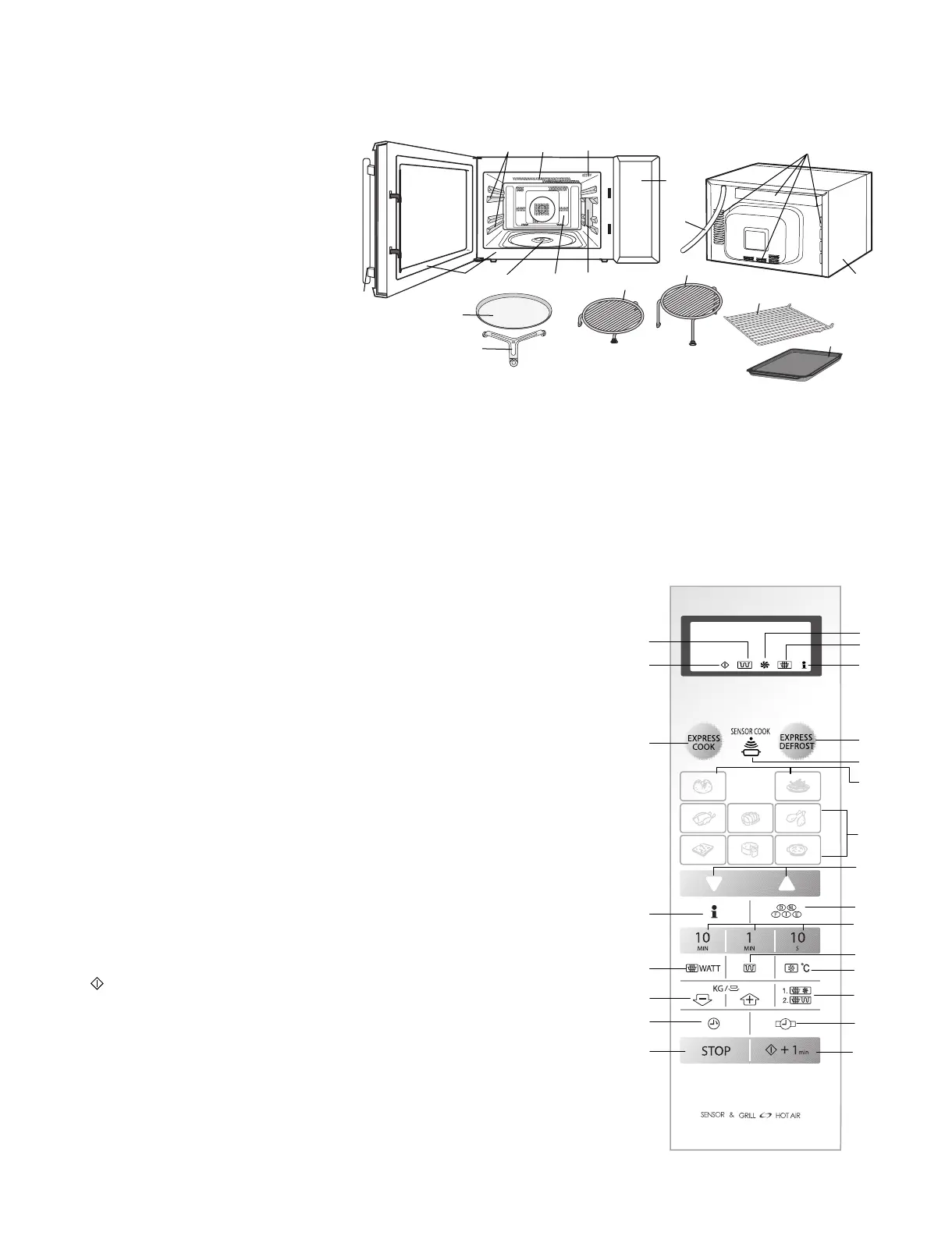

CHAPTER 4. APPEARANCE VIEW
[1] OVEN
1. Grill heating element
2. Oven lamp
3. Control panel
4. Shelf runners
5. Waveguide cover
6. Oven cavity
7. Coupling
8. Door seals and sealing surfaces
9. Door opening handle
10.Air-vent openings
11.Outer cabinet
12.Power cord
13.Turntable
14.Turntable support
15.Low Rack
16.High Rack
17.Square shelf
18.Square tin
[2] TOUCH CONTROL PANEL
Digital display and indicators:
1. COOKING IN PROGRESS indicator
2. GRILL indicator
3. CONVECTION indicator
4. MICROWAVE indicator
5. INFO indicator
Operating keys:
6. EXPRESS DEFROST key
7. SENSOR COOK key
8. POTATO key
9. INSTANT ACTION key
10. LESS / MORE key
11. LANGUAGE key
12. TIME key
13. GRILL key
14. CONVECTION key
15. DUAL MODE key
16. CLOCK SETTING key
17. +1 min key
NOTE: This features is disabled after three minutes when the oven is not in use. This features is
automatically enabled when the door is opened and closed or the STOP pad is pressed.
18.STOP key
19. TIMER key
20. WEIGHT keys
21. MICROWAVE POWER LEVEL key
22. INFO key
23. EXPRESS COOK key
2
8
9
1
4
7
13
6
5
3
12
11
10
14
15
16
17
18
3
4
5
6
7
9
8
10
12
13
14
16
17
15
11
18
20
21
22
23
1
2
19
