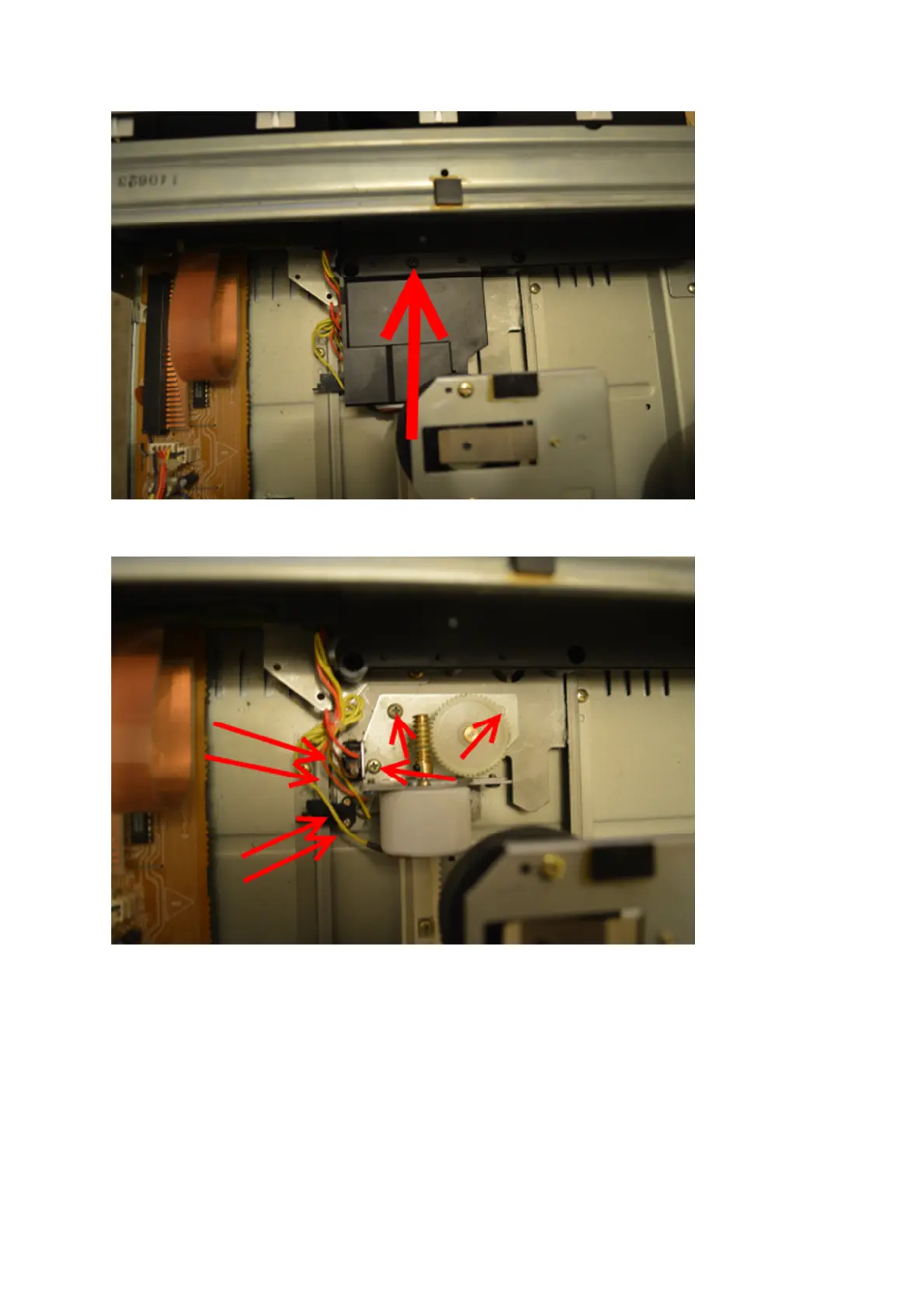

6) Open tray, remove screw from gear enclosure, remove enclosure
7) Remove screws retaining microswitches, remove screws holding plate down
