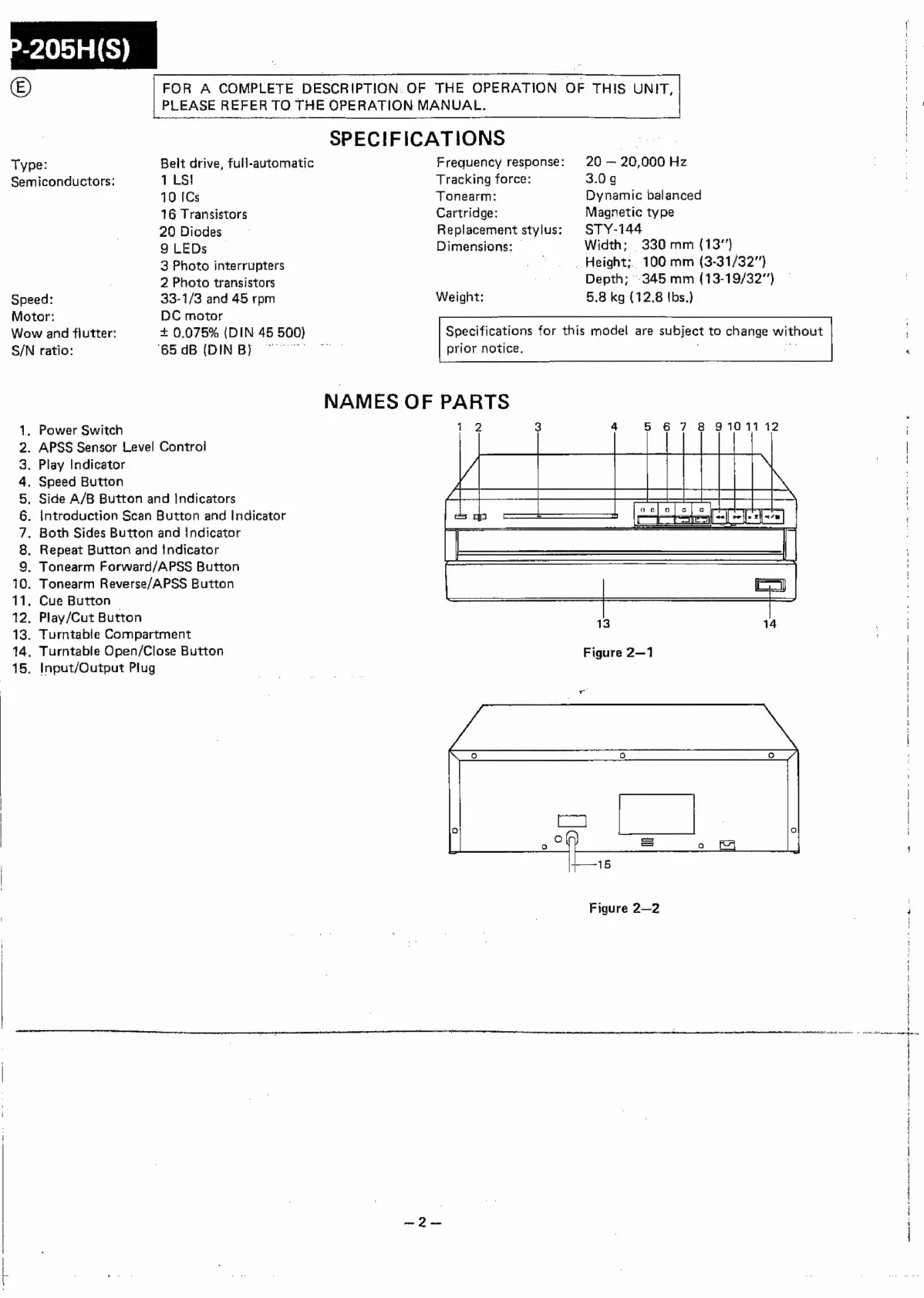

Sharp RP-205H - Page 2

Type: Belt drive, full-automatic
Semiconductors: 1 LS!
10 [Cs
16 Transistors
20 Diodes
Q9LEDs ~
3 Photo interrupters
2 Photo transistors
Speed: 33-1/3 and 45 rpm
Motor: DC motor
Wow and flutter:
S/N ratio:
OWONIAM AWN =
+ 0.075% (DIN 45 500)
‘65 dB (DINB) ~
. Power Switch
. APSS Sensor Level Control
. Play Indicator
. Speed Button
Side A/B Button and Indicators
. Introduction Sean Button and Indicator
. Both Sides Button and indicator
. Repeat Button and {ndicator
. Tonearm Forward/APSS Button
. Tonearm Reverse/APSS Button
. Cue Button —
. Play/Cut Button
. Turntable Compartment
. Turntable Open/Close Button
. Input/Output Plug
FOR A COMPLETE DESCRIPTION. OF THE OPERATION OF THiS UNIT,
PLEASE REFER TO THE OPERATION MANUAL.
SPECIFICATIONS
Frequency response:
Tracking force:
Tonearm:
Cartridge:
Replacement stylus:
Dimensions: |
Weight:
prior notice.
NAMES OF PARTS
Specifications for this model are subject to change without
20 — 20,000 Hz
3.09
Dynamic balanced
Magnetic type
STY-144
Width: 330mm (13”}
. Height; 100 mm (3-31/32”)
Depth; 345 mm (13-19/32”)
5.8 kg (12.8 Ibs.)
13 14
Figure 2—1
Figure 2—2
