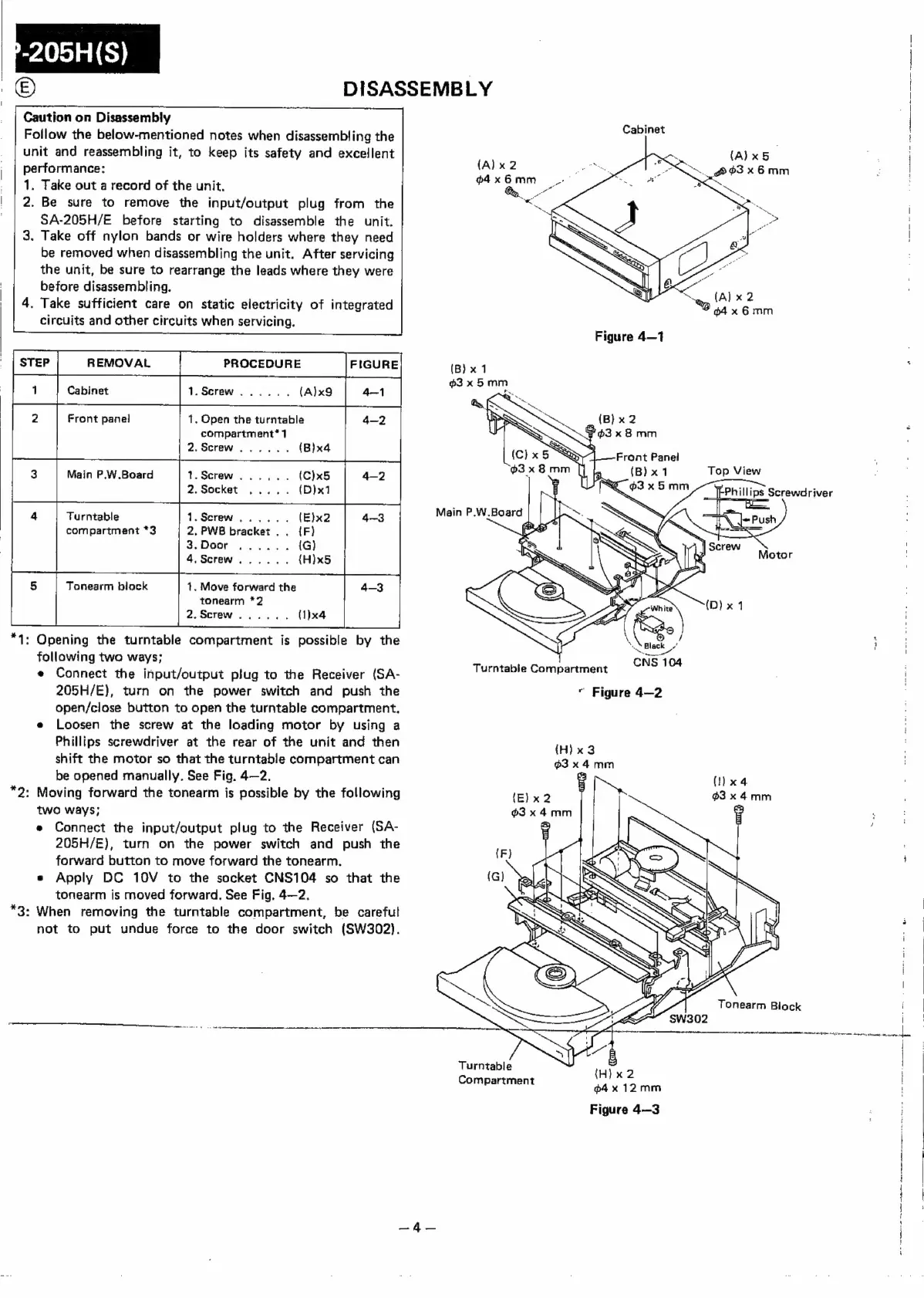

Caution on Disassembly
Follow the below-mentioned notes when disassembling the
unit and reassembling it, to keep its safety and excellent
performance:
1.
2.
3.
. Take sufficient care on static electricity of integrated
Take out a record of the unit.
Be sure to remove the input/output plug from the
SA-205H/E before starting to disassemble the unit.
Take off nylon bands or wire holders where they need
be removed when disassembling the unit. After servicing
the unit, be sure to rearrange the leads where they were
before disassembling.
circuits and other circuits when servicing.
REMOVAL
Cabinet
1. Open the turntable
compartment* 1
2
Front pane!
Main P.W.Board
Turntable
compartment *3
. Move forward the
tonearm *2
2. Screw
Tonearm block
*1: Opening the turntable compartment is possible by the
following two ways;
e Connect the input/output plug to the Receiver (SA-
205H/E), turn on the power switch and push the
open/close button to open the turntable compartment.
e Loosen the screw at the loading motor by using a
Phillips screwdriver at the rear of the unit and then
shift the motor so that the turntable compartment can
be opened manually, See Fig, 4—2.
*2: Moving forward the tonearm is possible by the following
two ways;
e Connect the input/output plug to the Receiver (SA-
205H/E), turn on the power switch and push the
forward button to move forward the tonearm.
e Apply DC 10V to the socket CNS104 so that the
tonearm is moved forward, See Fig. 4—2.
*3: When removing the turntable compartment, be careful
not to put undue force to the door switch (SW302).
Main P.W.Board
DISASSEMBLY
Cabinet
a Ne
rc
a
Front Panel
(B) x1
EC 63 x 5mm
SS en oe | f a
Turntable Compartment
Turntable
Compartment
" Figure 4—2
Figure 4—3
Top View
| Phillips Screwdriver
iat Push
