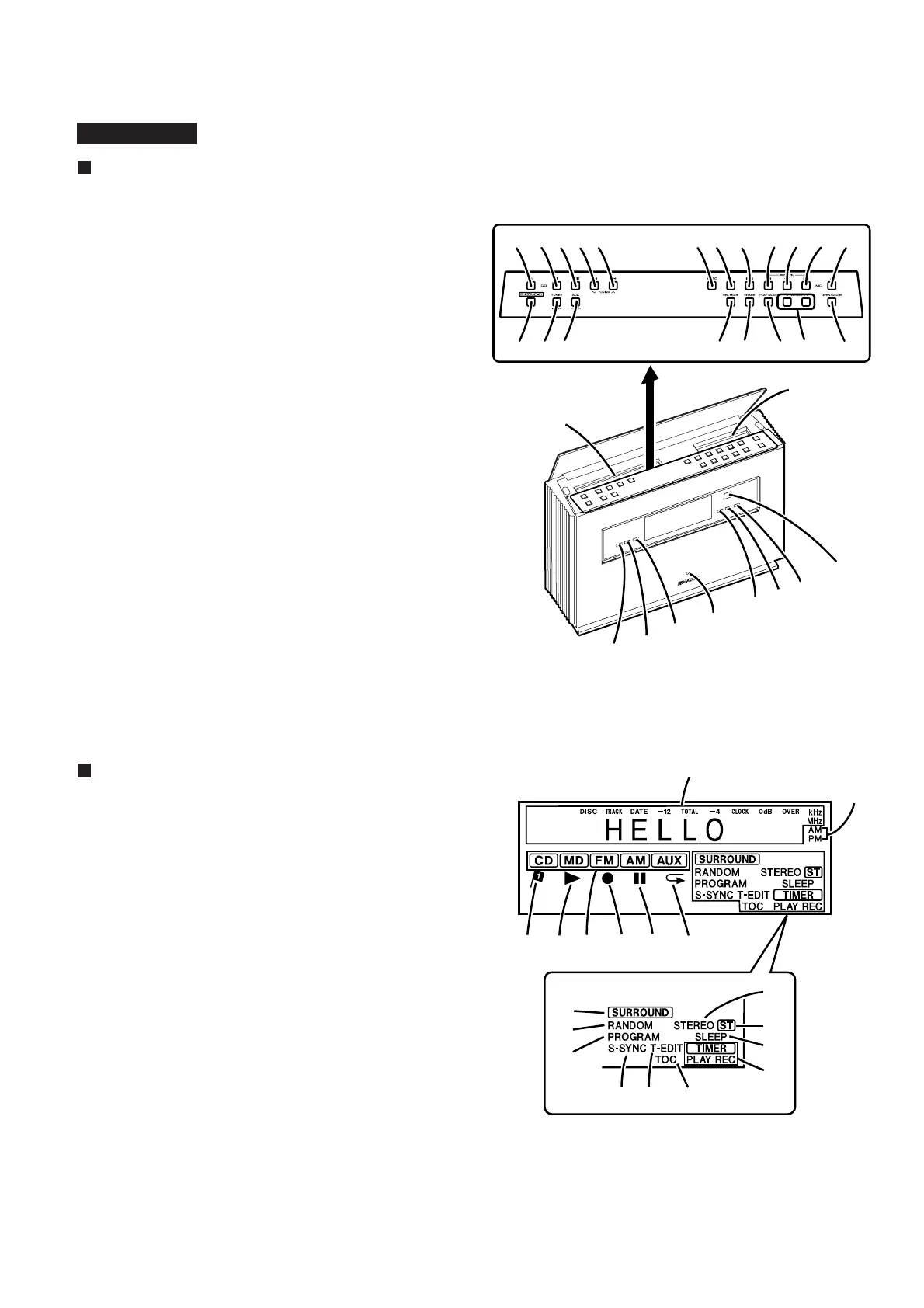

NAMES OF PARTS
MD/CD/tuner unit front panel
1. CD Eject Button
2. CD Stop Button
3. CD Play/Pause Button
4. CD Fast Reverse/Tuning Down Button
5. CD Fast Forward/Tuning Up Button
6. MD Record Button
7. MD Stop Button
8. MD Play/Pause Button
9. MD Recording Level/MD Fast Reverse Button
10. MD +10 Track Up Button
11. MD Recording Level/MD Fast Forward Button
12. MD Eject Button
13. On/Stand-by Button
14. Tuner (Band) Button
15. Auxiliary/Demo Button
16. MD Record Mode Button
17. Erase Button
18. CD/MD Play Mode Select Button
19. Volume Up and Down Buttons
20. CD/MD Cover Open/Close Button
21. CD Compartment
22. MD Compartment
23. Timer Indicator
24. Sleep Indicator
25. Monaural Recording Indicator
26. Power Indicator
27. Stereo Recording Indicator
28. 2 times Long Recording (stereo) Indicator
29. 4 times Long Recording (stereo) Indicator
30. Remote Sensor
1 2 35 6 8 10 11912
13 1415 16 17 18 19 20
21
23
24
25
28
29
27
30
26
22
47
Multi-function LCD display
1. Level Meter/Character Information/Frequency Indicator
2. AM/PM Indicator
3. Top Position Indicator
4. CD/MD Play Indicator
5. Function Indicator
6. Record Indicator
7. MD Record Pause Indicator
8. CD/MD Repeat Indicator
9. Surround Indicator
10. Random Play Indicator
11. Program Play Indicator
12. Sound Synchronized Recording Indicator
13. Track Edit Indicator
14. TOC Indicator
15. FM Stereo Mode Indicator
16. FM Stereo Indicator
17. Sleep Indicator
18. Timer Play/Recording Indicator
1
4
5
3
7
6
10
12 13 14
15
16
17
18
11
9
2
8
