– 15 –
SD-NX10
• Schematic diagram and Wiring Side of P.W.Board for this
model are subject to change for improvement without prior
notice.
• The indicated voltage in each section is the one measured
by Digital Multimeter between such a section and the chas-
sis with no signal given.
1. In the tuner section,
( ) indicates AM/FM stereo
2. In the CD section, the CD is stopped.
• Parts marked with “ 1 ” ( ) are important for
maintaining the safety of the set. Be sure to replace these
parts with specified ones for maintaining the safety and
performance of the set.
NOTES ON SCHEMATIC DIAGRAM
• Resistor:
To differentiate the units of resistors, such symbol as K and
M are used: the symbol K means 1000 ohm and the symbol
M means 1000 kohm and the resistor without any symbol is
ohm-type resistor. Besides, the one with “Fusible” is a fuse
type.
• Capacitor:
To indicate the unit of capacitor, a symbol P is used: this
symbol P means pico-farad and the unit of the capacitor
without such a symbol is microfarad. As to electrolytic
capacitor, the expression “capacitance/withstand voltage” is
used.
(CH), (TH), (RH), (UJ): Temperature compensation
(ML): Mylar type
(P.P.): Polypropylene type
SW1930 WRITE PRO ON—OFF
SW1931 DISC MEDIA ON—OFF
SW1932 LOADING ON—OFF
SW1933 RECORD ON—OFF
SW1934 PLAY ON—OFF
SW1936 LEAD IN ON—OFF
SWD02 ON/STAND-BY ON—OFF
SWD03 TUNER (BAND) ON—OFF
SWD04 AUX (DEMO) ON—OFF
SWD05 CD FAST FORWARD/TUNING UP ON—OFF
SWD06
CD FAST REVERSE/TUNING DOWN
ON—OFF
SWD07 CD PLAY/PAUSE ON—OFF
SWD08 CD STOP ON—OFF
SWD09 CD EJECT ON—OFF
REF. NO DESCRIPTION POSITION
POSITIONREF. NO
DESCRIPTION
SWD10 MD +10 TRACK UP ON—OFF
SWD11 VOLUME DOWN ON—OFF
SWD12 VOLUME UP ON—OFF
SWD13 CD/MD COVER OPEN/CLOSE ON—OFF
SWD14 MD REC ON—OFF
SWD15 MD STOP ON—OFF
SWD16 MD PLAY/PAUSE ON—OFF
SWD17 MD DOWN ON—OFF
SWD18 MD UP ON—OFF
SWD19 MD EJECT ON—OFF
SWD20 PLAY MODE ON—OFF
SWD21 ERASE ON—OFF
SWD23 OPEN/CLOSE ON—OFF
SWD24 REC MODE ON—OFF

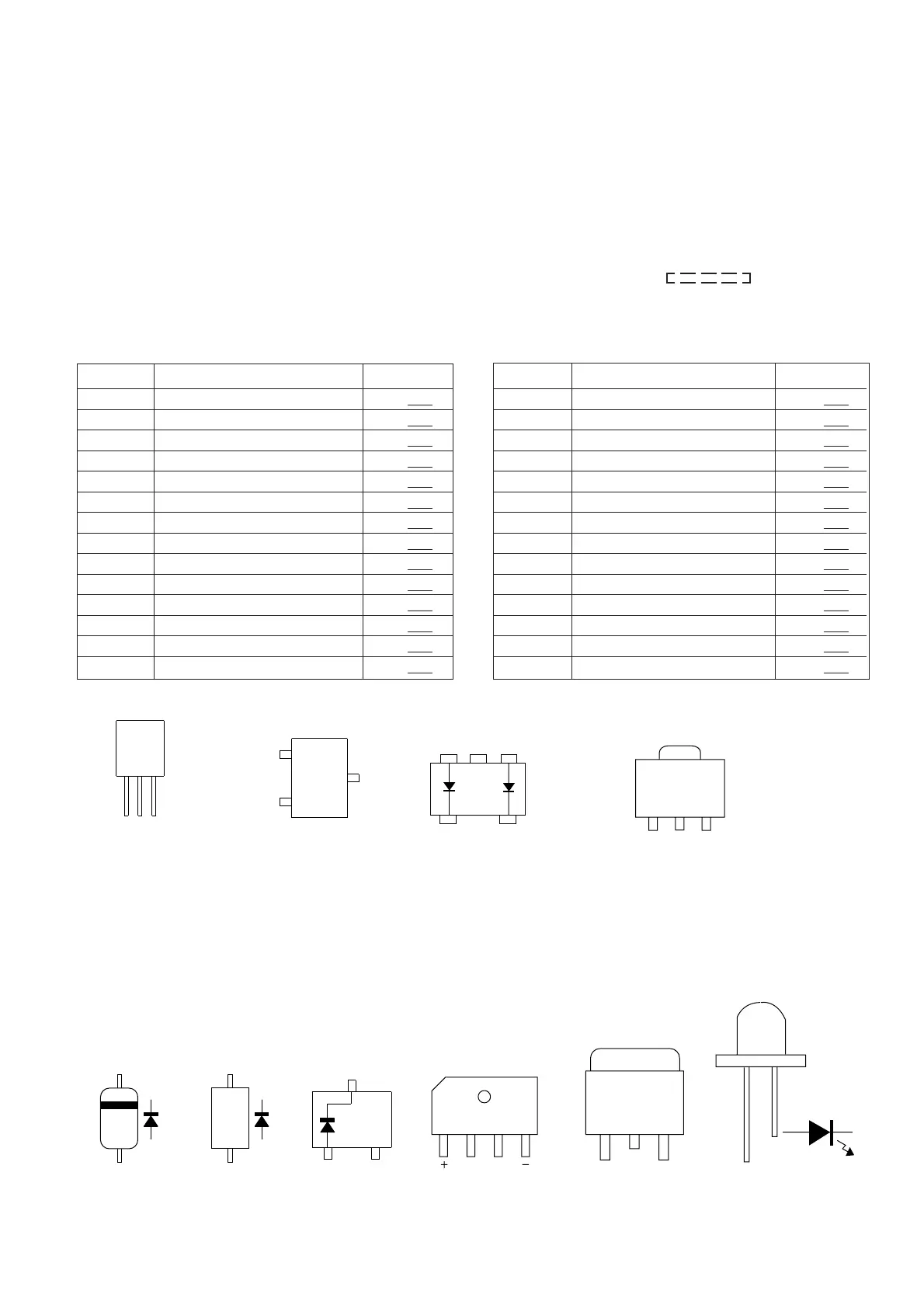

TYPES OF TRANSISTOR AND LED
2SA1162 G
2SD601 AR
KRA225 S
KRC102 S
UN2113
UN2213
UN2214
UN221 N
DS1SS133
2SA02M
B
(3)
E
(1)
C
(2)
TOP
VIEW
SB00703Q
SBE803
TOP VIEW
TOP VIEW
TOP VIEWTOP VIEW
2SC2878 B
2SK246 GR
KTA1023 Y
KTA1266 GR
KTA1271 Y
KTA1273 Y
KTC3199 GR
KTC3203 Y
KRA106 M
KRA107 M
KRC104 M
KRC107 M
VIEW
FRONT
E C B
(S)(G)(D)
(1)(2)(3)
DS1N404S
1SS355
543
21
1:Cathode
2:Cathode
3:Anode
4:No Contact
5:Anode
2SA1314 C
FRONT
VIEW
B
C
E
TS4B03GM
AC AC
VIEW
FRONT
FRONT
VIEW
2647RT49
4204UYT9
4204UGT9
2SB1205
FRONT
VIEW
B
C
E
DB3804X
LNG901CF
