Sharp SJ-63L-A2G - R LAMP BOX ASSEMBLY

13
SJ-58L-A2
SJ-63L-A2
SJ-68L-A2/R2

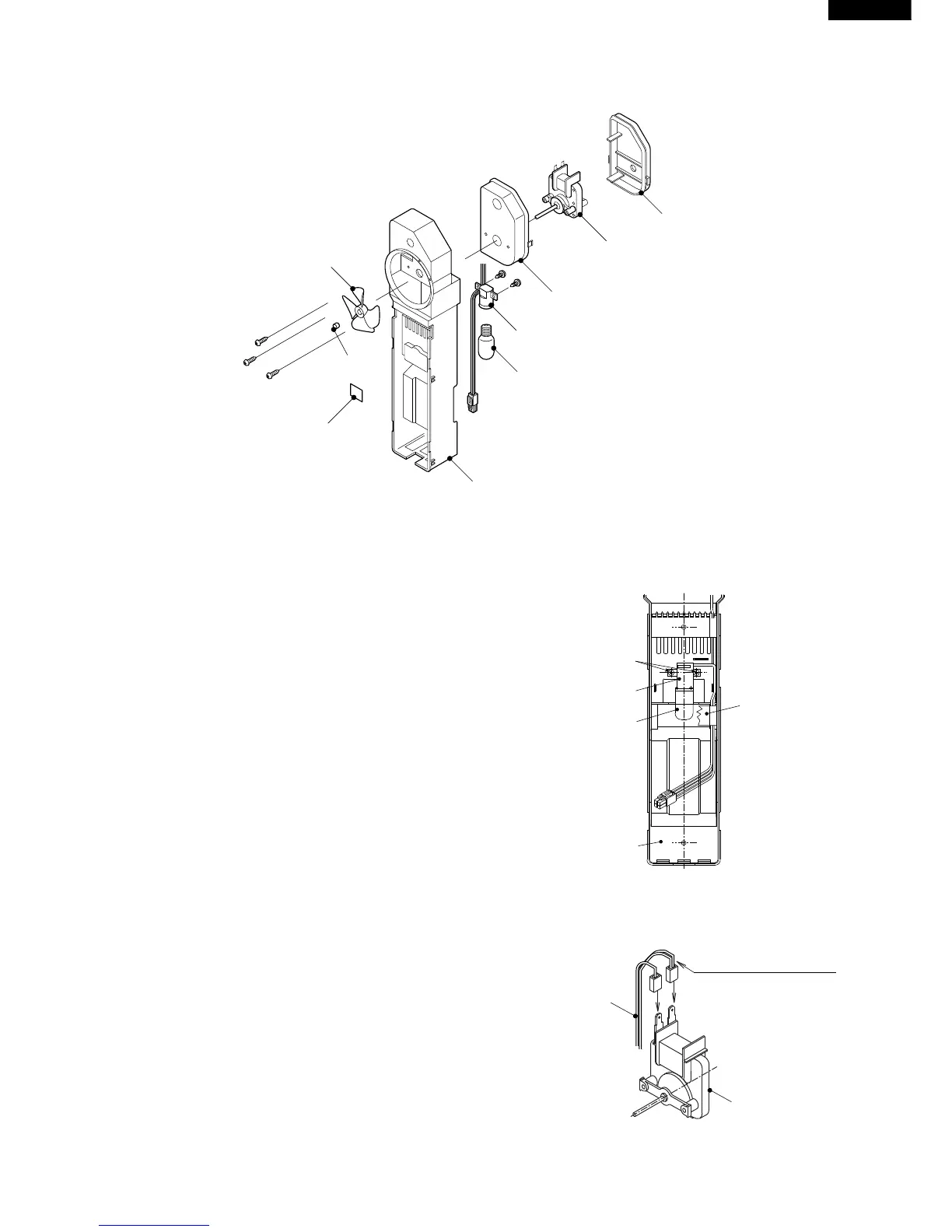

2. R LAMP BOX ASSEMBLY
Lamp socket (with lead wires for R-fan motor)
Lamp 15W
Warning label
R lamp box
Propeller fan 80
R-fan motor
R fan motor holder A
Fan clamp
R fan motor holder B
Figure A-5
(1) Fixing of Lamp and Lamp socket.
(1)-1 Screw Lamp 15W into Lamp socket.
(1)-2 Fix Lamp socket on R lamp box by tapping
screws.
Tapping screw
Lamp socket
Lamp 15W
R lamp box
ALMINUM TAPE
Figure A-6
(1)-3 Insert the terminal of Lamp socket to R-fan motor.
Figure A-7
Fan motor
Lamp socket
DOUBLE CLAMPING WIRES
