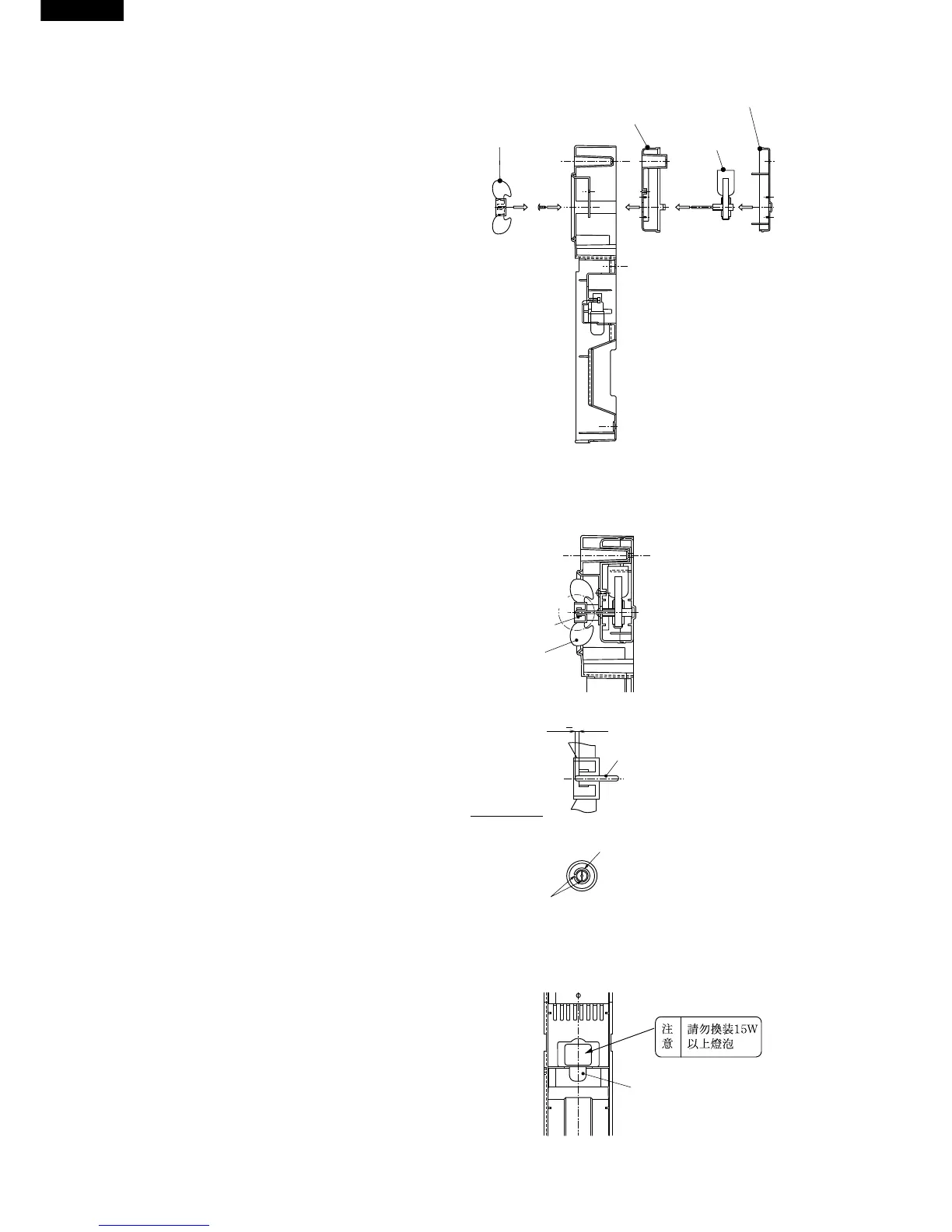

(2) Fixing of R-fan motor and Fan
(2)-1 Set R-fan motor holder A to R lamp box by
tapping screw.
(2)-2 Set R-fan motor to R fan motor holder A by
machine screw.
(2)-3 Set R fan motor holder B to A.
Propeller fan 80
R fan motor holder A
R-fan motor
R fan motor holder B
Fan clamp
Propeller fan 80
F
Shaft
2.3 0.5mm
+
Fan clamp
Slit
Slit of each Fan clamp and Propeller fan
should not be at same position.
Detail of F
(2)-4 Set Fan clamp to Propeller fan 80 and insert it
to the shaft of R-fan motor.
Figure A-9
(3) Sticking Warning label.
Figure A-8
Lamp 15W
Figure A-10
