Sharp SJ-63L-A2G User Manual

23
SJ-58L-A2
SJ-63L-A2
SJ-68L-A2/R2
Charge pipe
to Dryer
Hot pipe
to Dryer
Pinch Point
Sub. condenser to
hot pipe
Pinch point
Charge pipe to
Compressor’s process tube
Compressor’s discharge pipe
to Sub. condenser
Suction pipe to
S.P connector
Dryer
to Capillary tube
Suction pipe to
Compressor’s suction tube
Compressor
Suction pipe
Charge pipe
Charge pipe
Capillary tube
Dryer
Hot pipe
S.P. connector
Sub. condenser Back condenser
Evaporator

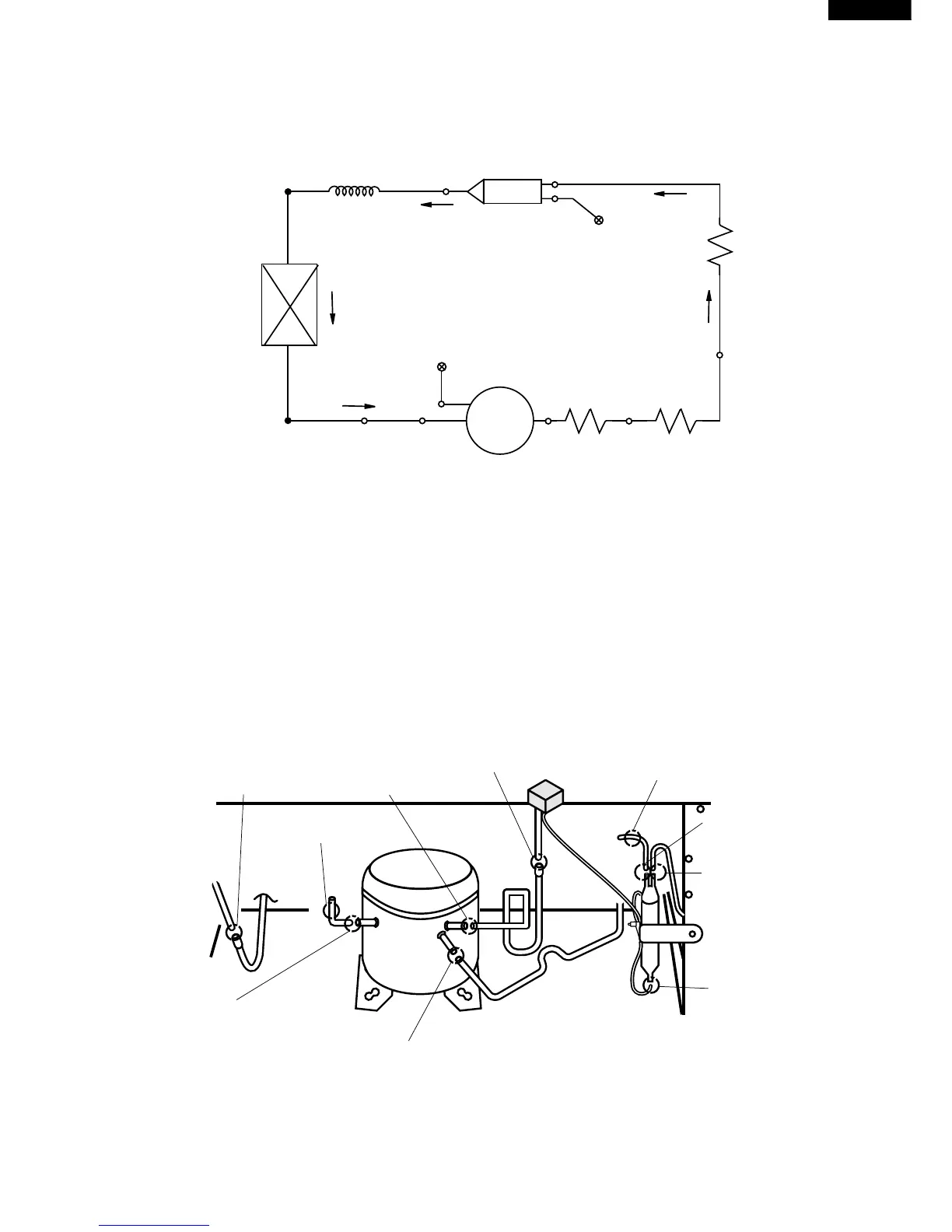

Figure C-3. Location
Figure C-2. Location
