4
SJ-58L-A2
SJ-63L-A2
SJ-68L-A2/R2

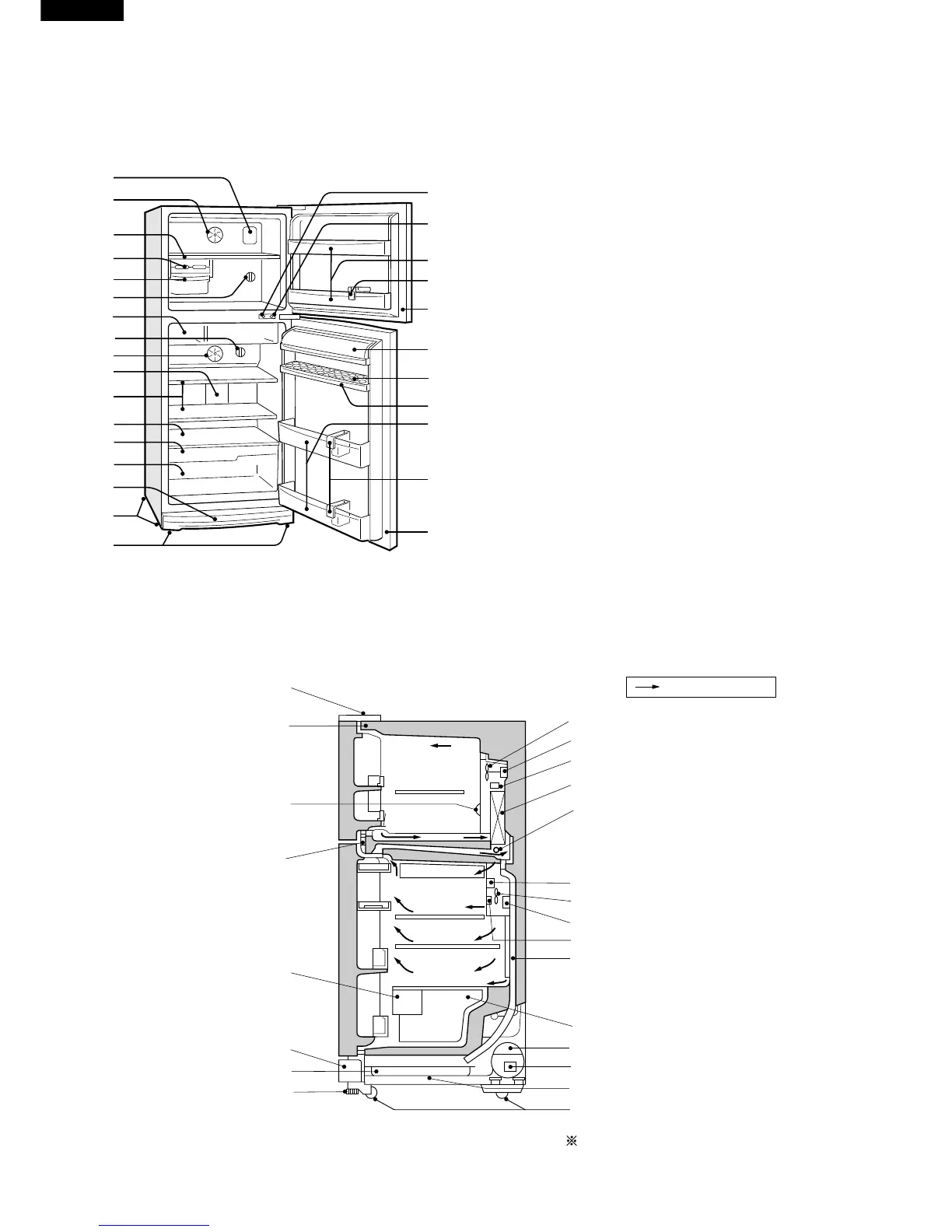

DESIGNATION OF VARIOUS PARTS
The names are the denominations used in the
REPLACEMENT PARTS LIST.
1. Freezer Lamp
2. Freezer fan
3. F shelf ass'y
4. Ice cube maker
5. Ice storage box
6. Freezer temp. control box
7. Chilled case
8. Refrigerator temp. control knob
9. Refrigerator fan
10. Refrigerator lamp
11. R glass shelf ass'y
(
SJ-58L
type 1,
SJ-63L
type 2,
SJ-68L
type 3)
12. V glass shelf ass'y
13. Fruit case
14. Vegetable case
15. Evaporating pan & cover
16. Caster
17. Adjustable leg ass'y
18. Fan & light switch(for freezer)
19. Fan & light switch(for refrigerator)
20. F door pocket
21. Water cup
22. Door packing
23. Utility case pocket
24. Egg tray
25. R door pocket
(
SJ-58L/63L
type 1,
SJ-68L
type 2)
26. Bottle pocket
27. Tube stand
1
18
19
20
21
22
23
24
25
26
27
3
2
4
5
6
7
8
9
10
11
12
13
14
17
15
16
22
Figure D-1. External Description
Upper hinge cover
Hot pipe
Freezer temp. control knob
Hot pipe
Ventilating grille
Evaporating pan
Adjustable leg ass’y
Fan motor
Freezer fan
Defrost thermostat
Evaporator
Defrost heater
Damper thermostat
Refrigerator temp. control knob
Drain pipe
Vegetable case
Compressor
Starting relay, Overload relay(Protector)
Caster
Sub condenser
Freezer
compartment
Refrigerator
compartment
Fruit case
Mark: Cold air flow
Timer, R-fan themo. ass’y
Refrigerator fan
This figure shows SJ-63L .
Figure D-2. Constructions
