Sharp SMD2489ES - Clearances and Dimensions

2
D
G
A
B
C
H
I
F
E
J
CLEARANCES AND DIMENSIONS
• Dimensions that are shown in Figure 1 must be used. Given
dimensions provide minimum clearance. Locate electrical outlet
in the shaded area in the upper left-hand corner of the cutout. See
Figure 9.
• Contact surface must be solid and level. Pay special attention to
the oor on which the Microwave Drawer will sit. The oor of
the opening should be constructed of plywood strong enough to
support the weight of the oven (about 100 pounds).
• Check location where the Microwave Drawer will be installed
for proper electrical supply.
• Your oven can be built into a cabinet or wall as a stand-alone
unit. It can also be installed under gas or electric wall ovens, the
SuperSteam oven models SSC2489DS & SSC2489GS or under
the cooktop models SDH3042DB, SDH3652DB, SCH2443GB,
SCH3043GB, SCR3041FB, SCR3042GB, SCR2442FB,
SCR3041GB, and SCR3042FB.
• Be sure that the clearance of the oor between the wall oven and
the microwave drawer is a minimum of 2-inches.
• The microwave interior will easily accommodate a 9" x 13" oblong
dish or a bag of microwave popcorn.
• The oven can also be mounted ush. Please see instructions for
ush mounting.

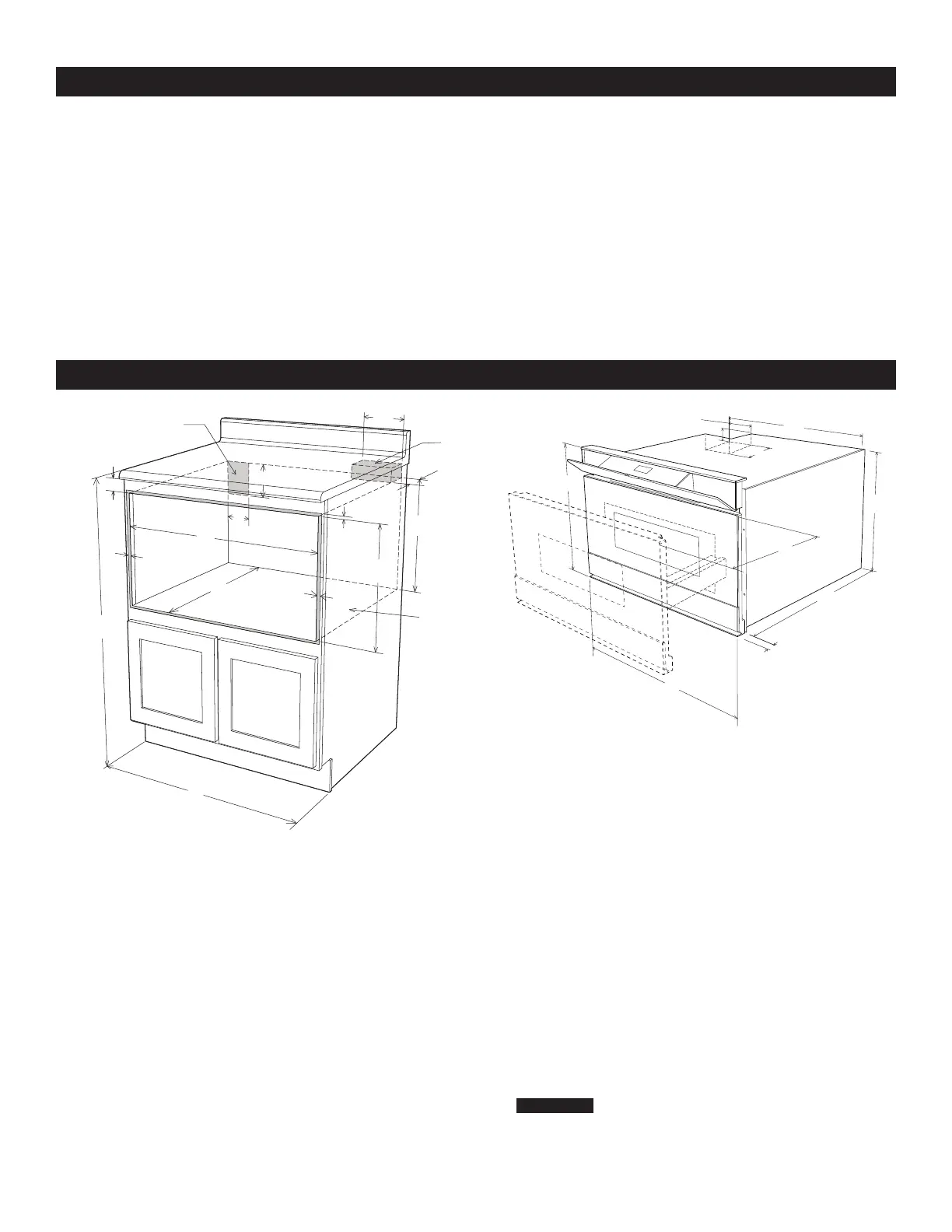

24" MICROWAVE DRAWER STANDARD MOUNT AND MEASUREMENTS
B
C
G
D
B
C
D
E
F
G
H
I
I
J
K
L
M
N
O
P
A
A
F
E
Figure 1
Figure 2
A. 6" (152.40 mm)
B. Suggested electrical
outlet location*
C. Anti-Tip block
D. 5" (127 mm)
E. 3
1
/2" (88.90 mm)
F. 4" (101.60 mm)
G. 22
1
/8" (561.98 mm)
opening
H. 14
13
/16" (376.24 mm) to
bottom of Anti-Tip block
I. Allow
7
/8" (22.22 mm)
overlap
J. 23
1
/2" (596.90 mm)
minimum depth
K. Allow
7
/16" (11.11 mm)
overlap
L. 36" (914.40 mm)
countertop height
M. Allow
7
/16" (11.11 mm)
minimum space
N. Floor must support
100 lb (45.4 kg)
O. 24" (609.60 mm)
cabinet minimum
P. 15
9
/16" (395.29 mm)
opening
Figures 1 and 2 contain many Microwave Drawer measurements
for reference when planning the drawer’s location.
Your oven can be built into a cabinet or wall as a stand-alone
unit. It can also be installed under gas or electric wall ovens, the
SuperSteam oven models SSC2489DS & SSC2489GS or under
the cooktop models SDH3042DB, SDH3652DB, SCH2443GB,
SCH3043GB, SCR3041FB, SCR3042GB, SCR2442FB,
SCR3041GB and SCR3042FB.
* Can also be installed using an electrical outlet in an adjacent cabinet
within the area where the provided electrical cord can reach. Power
cord access hole in cabinet should be a minimum 1
1
/2" diameter hole
and deburred of all sharp edges.
IMPORTANT
Always allow sufcient power cord length to the
electrical outlet to prevent tension.
Always check electrical codes for requirements.
A. 21
5
/8" (549.28 mm)
B. 4
11
/16" (119.06 mm)
C. 1
3
/4" (44.45 mm)
D. 21
7
/8" (555.63 mm)
E. 23
5
/8" (600.07 mm)
F. 16" (406.4 mm)
G. 14
19
/32" (370.68 mm)
H. 1
17
/32" (38.89 mm) door thickness
I. 15" (381 mm) auto drawer opening
J. 4" (101.60 mm)
