Sharp SX8800H - Specifications; Names of Parts

SX-8800H
REFER TO THE OPERATION MANUAL.
© FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT, PLEASE
SPECIFICATIONS
Power source: AC 230 V, 50 Hz
Power consumption: 1155 W
Dimensions: Width; 430 mm (17”)
Height; 230 mm (9-1/16")
Depth; 348 mm (13-3/4")
Weight: 14.5 kg (31.9 Ibs.)
Music power output:
2 x 375 W/8 ohms
Continuous power output:
2 x 200 W/8 ohms, 1.0% T.H.D.,
1 kHz
Input sensitivity and input impedance:
400 mV/47 kohms
Loaded impedance: Speakers; 8 ohms
Headphones; 8 - 50 ohms
(recommended 32 ohms)
Specifications for this model are subject to change without
prior notice.

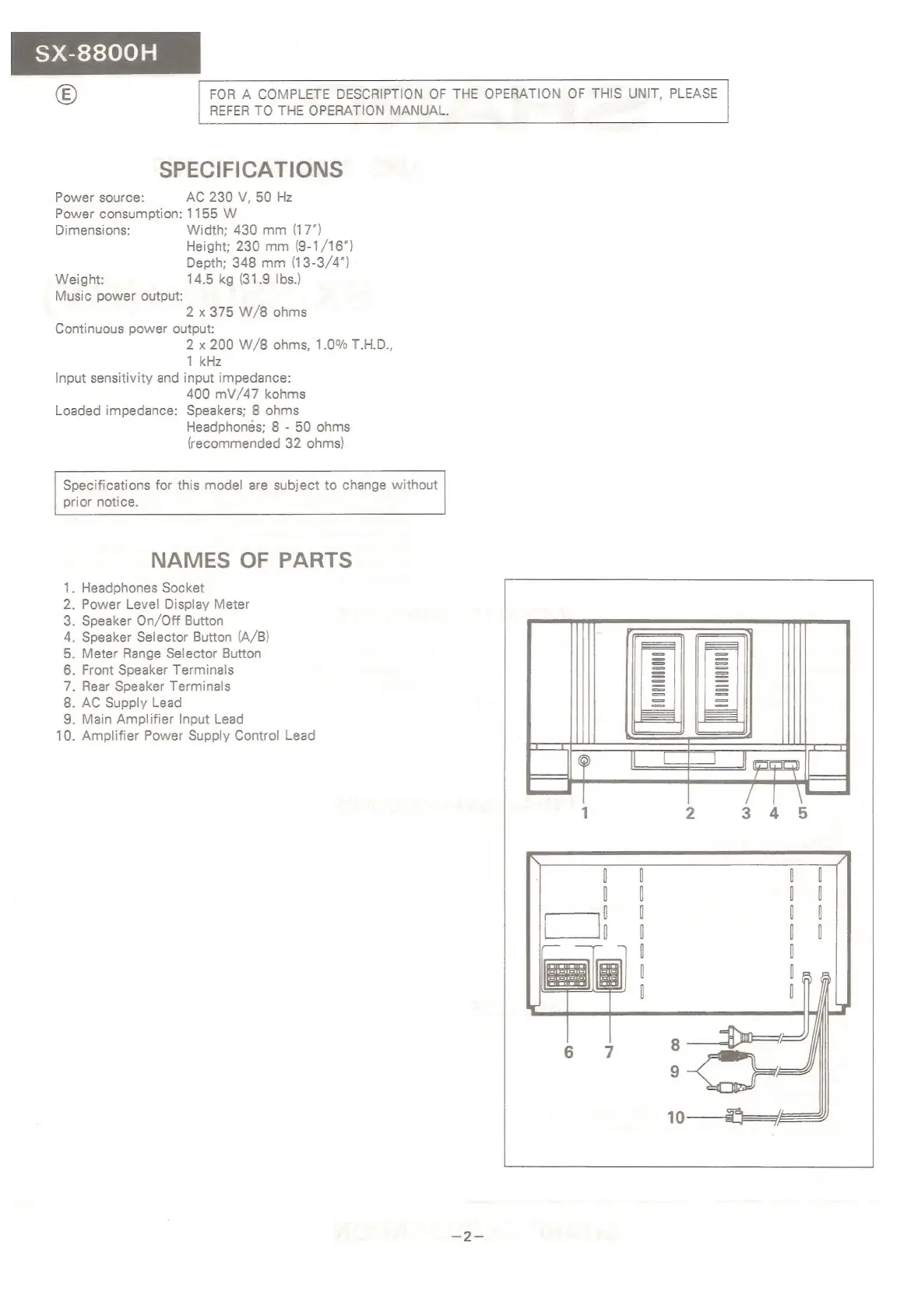

NAMES OF PARTS
. Headphones Socket
. Power Level Display Meter
. Speaker On/Off Button
. Speaker Selector Button (A/B)
. Meter Range Selector Button
. Front Speaker Terminals
. Rear Speaker Terminals
. AC Supply Lead
. Main Amplifier Input Lead
. Amplifier Power Supply Control Lead
OOMOMANODOABRWN — =
=
(===
