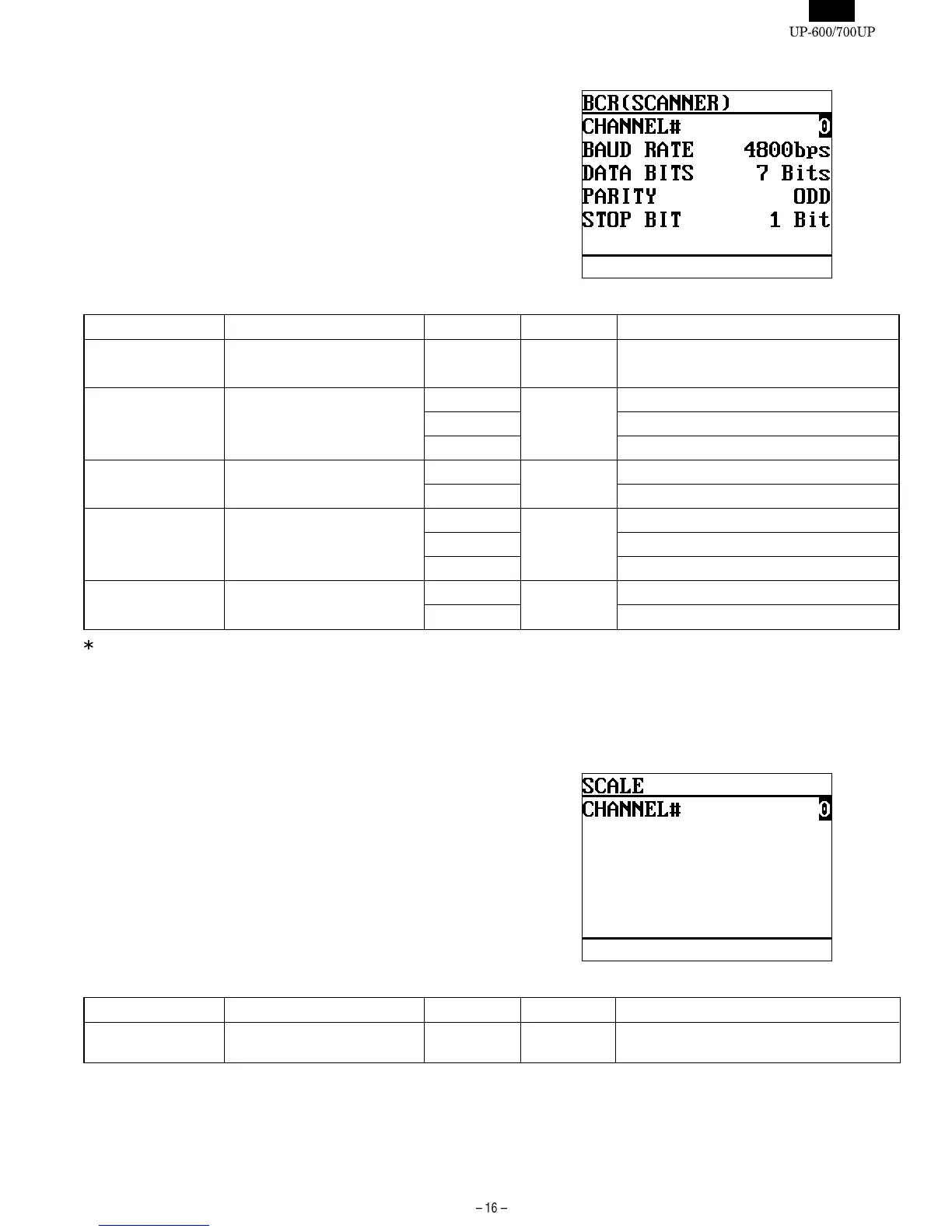

[01 DEVICE CONFIG] - [17 BCR(SCANNER)] DISPLAY: Setting screen
[BCR (SCANNER)]
DISPLAY CONTENTS SELECT ITEM MRS NOTE
CHANNEL# Channel No. 0-7 0 0: No RS232 channel is assigned.
1-7: RS232 channel is assigned.
BAUD RATE Transmission speed 4800 bps 4800 bps
9600 bps
19200 bps
DATA BITS Data bit 7 Bits 7 Bits
8 Bits
PARITY Parity bit ODD ODD
EVEN
NON
STOP BIT Stop bit 1 Bits 1 Bit
2 Bit
ER-A6HS1 setting : "BAUD RATE = 4800 bps" , "DATA BITS = 7Bits", "PARITY = ODD", "STOP BIT = 1Bit"
NOTE: 1. Set the channel No. so that it does not conflict with other devices that are to be connected. If it does, the unit won’t operate normally.
2. Do not use channel No. 2 for the ER-A6HS1. Use other channel Nos.
3. If you want to change the channel No. of the BCR (Scanner), set a channel No. that is other than 0 and does not conflict with other
devices.
[01 DEVICE CONFIG] - [18 SCALE] DISPLAY: Setting screen
[SCALE]
DISPLAY CONTENTS SELECT ITEM MRS NOTE
CHANNEL# Channel No. 0-7 0 0: No RS232 channel is assigned.
1-7: RS232 channel is assigned.
NOTE: 1. Set the channel No. so that it does not conflict with other devices that are to be connected. If it does, the unit won’t operate normally.
