Sharp VC-H993U - 3 Function of Major Mechanical Parts

10
VC-A592U/A593U
VC-A5933U/H992U
VC-H993U/H994U

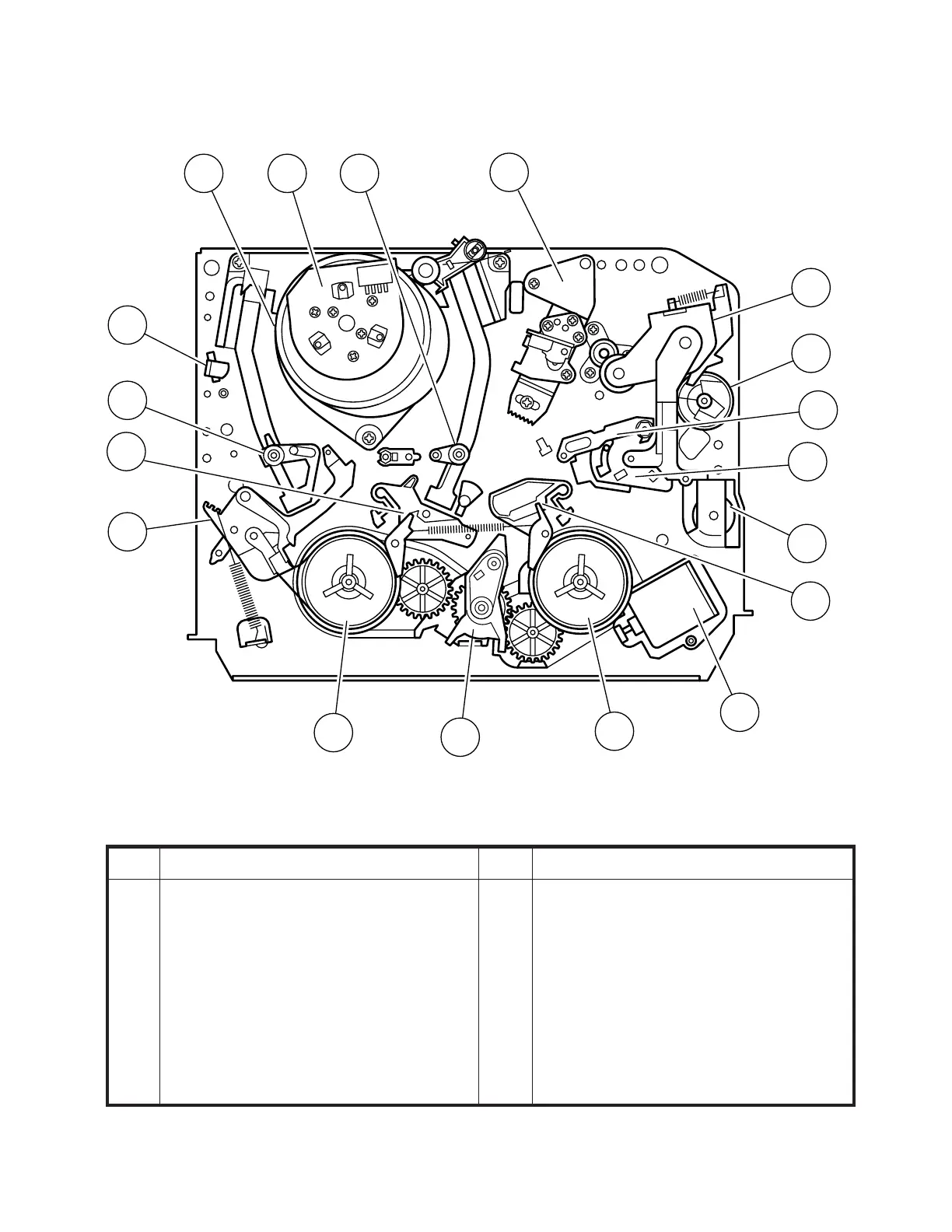

3. FUNCTION OF MAJOR MECHANICAL PARTS (TOP VIEW)
No. Function
No. Function
1 Full erase head
2 Supply pole base ass’y
3 Tension arm
4 Idler wheel ass’y
5 Pinch drive lever ass’y
6 Supply reel disk
7 Supply main brake
8 Take-up main brake
9 Pinch drive cam
10 A/C head ass’y
11 Reverse guide lever ass'y
12 Casecon drive gear
13 Take-up reel disk
14 Pinch roller lever ass’y
17
15
10
11
5
9
14
12
8
16
13
4
6
2
7
3
1
18
