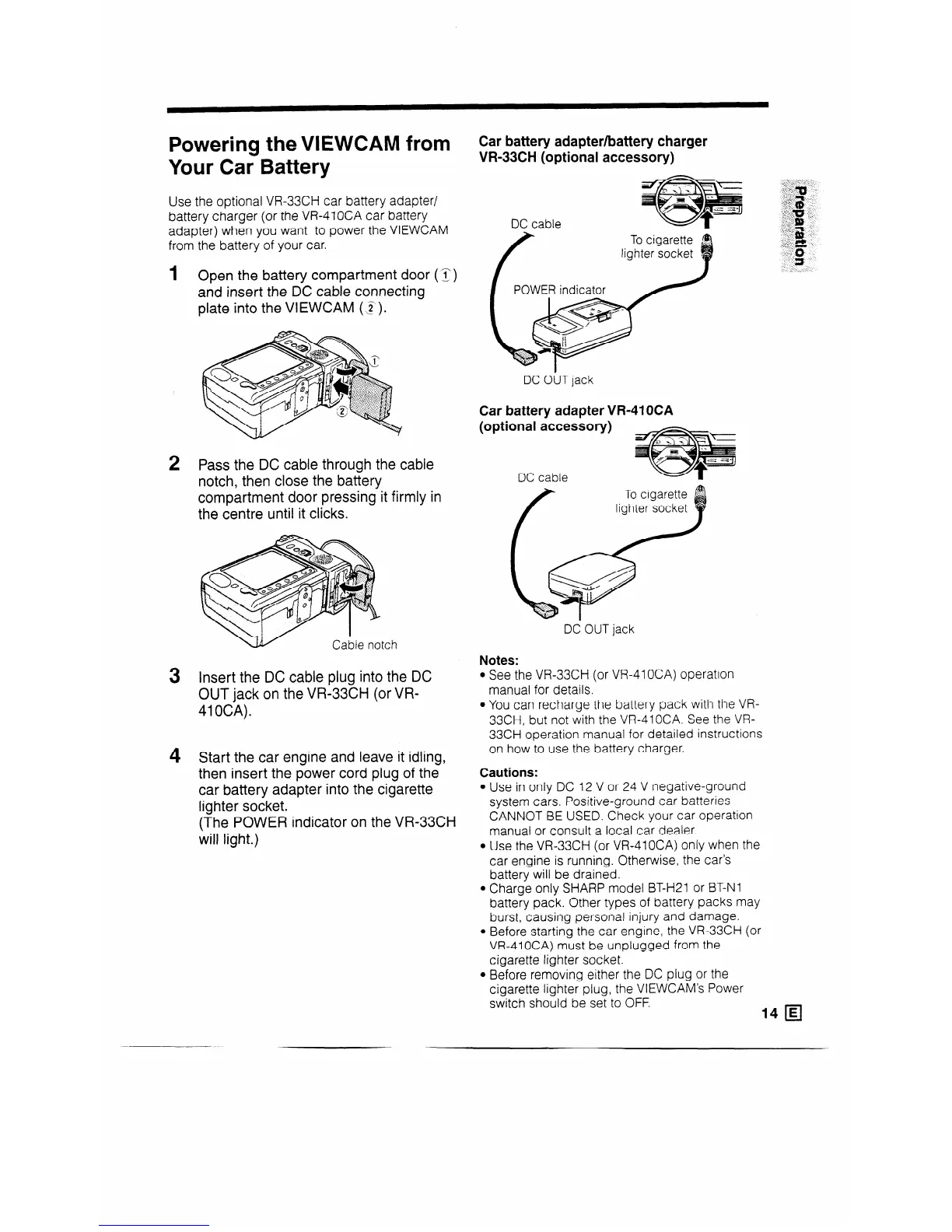

Powering the VIEWCAM from
Your Car Battery
Use the optional VR33CH car battery adapter/
battery charger (or the VR-41OCA car battery
adapter) when you want to power the VIEWCAM
from the battery of your car.
1
2
3
4
Open the battery compartment door (z)
and insert the DC cable connecting
plate into the VIEWCAM (~2 ).
Pass the DC cable through the cable
notch, then close the battery
compartment door pressing it firmly in
the centre until it clicks.
Insert the DC cable plug into the DC
OUT jack on the VR-33CH (or VR-
41 OCA).
Start the car engine and leave it idling,
then insert the power cord plug of the
car battery adapter into the cigarette
lighter socket.
(The POWER indicator on the VR-33CH
will light.)
Car battery adapter/battery charger
VR-33CH (optional accessory)
DC OUT jack
Car battery adapter VR-41 OCA
(optional accessory)
DC cable
DC OUT jack
Notes:
l See the VR-33CH (or VR-410CA) operation
manual for details.
l You can recharge the battery pack with the VR-
33CH, but not with the VR-410CA. See the VR-
33CH operation manual for detailed instructions
on how to use the battery charger.
Cautions:
l Use in only DC 12 V or 24 V negative-ground
system cars. Positive-ground car batteries
CANNOT BE USED. Check your car operation
manual or consult a local car dealer.
l Use the VR-33CH (or VR-410CA) only when the
car engine is running. Otherwise, the car’s
battery will be drained.
l Charge only SHARP model BT-H21 or BT-N1
battery pack. Other types of battery packs may
burst, causing personal injury and damage.
l Before starting the car engine, the VR-33CH (or
VR-41OCA) must be unplugged from the
cigarette lighter socket.
l Before removing either the DC plug or the
cigarette lighter plug, the VIEWCAM’s Power
switch should be set to OFF.
14 q
