VL-AX1U
Click
DV INTERFACE (IEEE1394) ID SETTING
This unit has a DV interface function conforming to IEEE1394. Therefore, each individual ID number must be used for each unit. Since this ID is written
on the E
2
PROM (IC302) on the head amp PWB, the ID must be newly written when replacing this IC or the head amp PWB.
Address 180, 17F, 17E Mode VCR
Adjustmentrating ID number obtained from the URL below
Procedure 1) Refer to the ID code application below.
2) Set the data obtained in step (1) to the corresponding addresses in the VCR adjustment mode.
* (Example) The data "08001F 0100 123456" is obtained.
(1) Enter the unit in the VCR ADJ mode.
(2) Set the ID numbers as follows.
Address 180 17F 17E
Data 12 34 56
Examples • During E
2
PROM (IC302: on the H/A unit) replacement. • During the H/A unit (RAMP-0035TAN0) replacement.

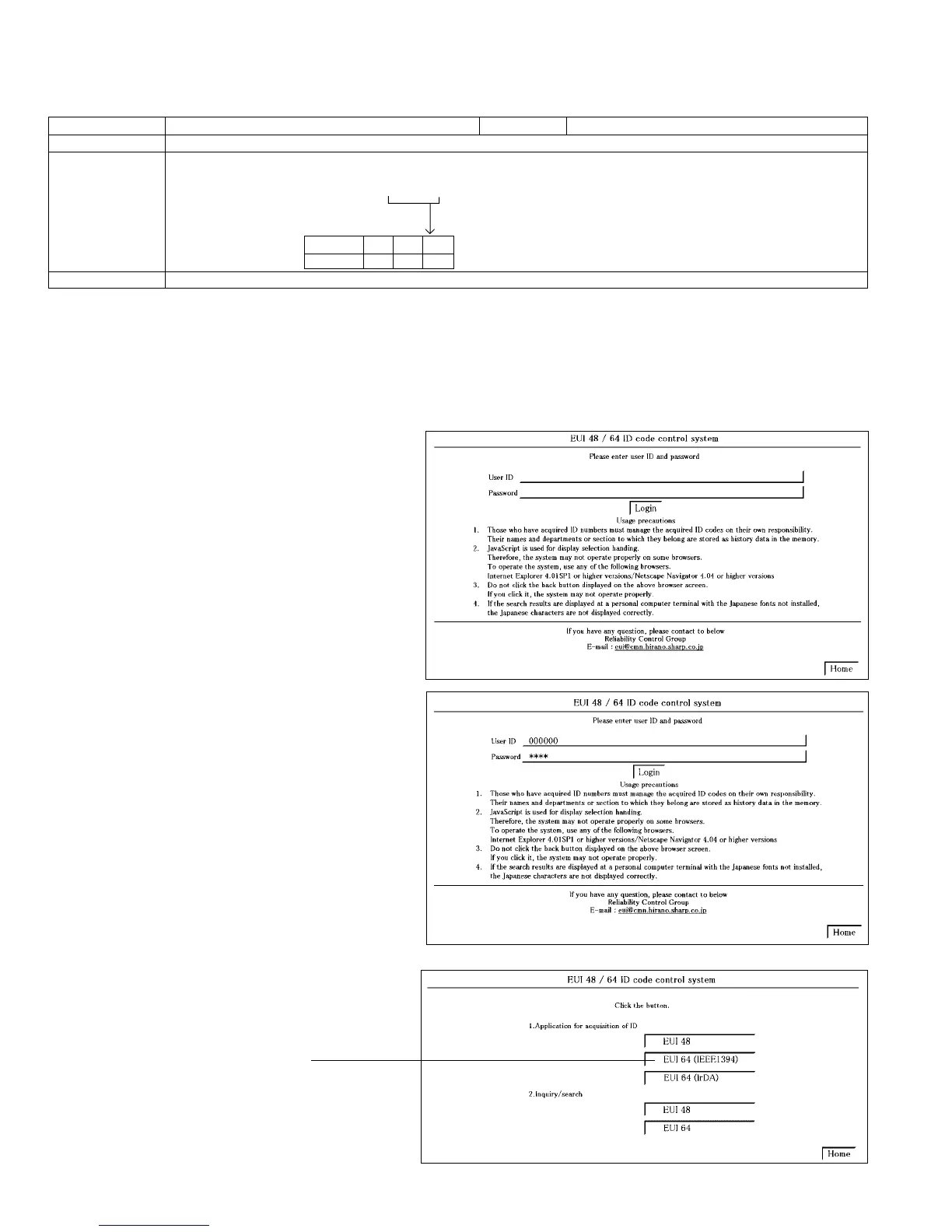

■ ID code is acquired
1. Connect with the EUI48/64 ID code control system.
(1) Start the Internet Explorer or Netscape Navigator.
(2) Access the following address.
(URL:http://www.rcg.kami.sharp.co.jp/quics/e_index.html)
Select the "EUI48/64 ID code control system" from the "Service" item.
Note: If you want to establish a connection by directly inputting the URL, please input the following.
URL:http://www1.rcg.kami.sharp.co.jp:7000/adrs_agt/adrs_dba/ide00010.main
The login screen will appear.
(3) For the [User ID], input the [Password].
Click on [Login].
(4) Click on [EUI 64 (IEEE 1394)] from the [1. Application for acquisition of ID].
