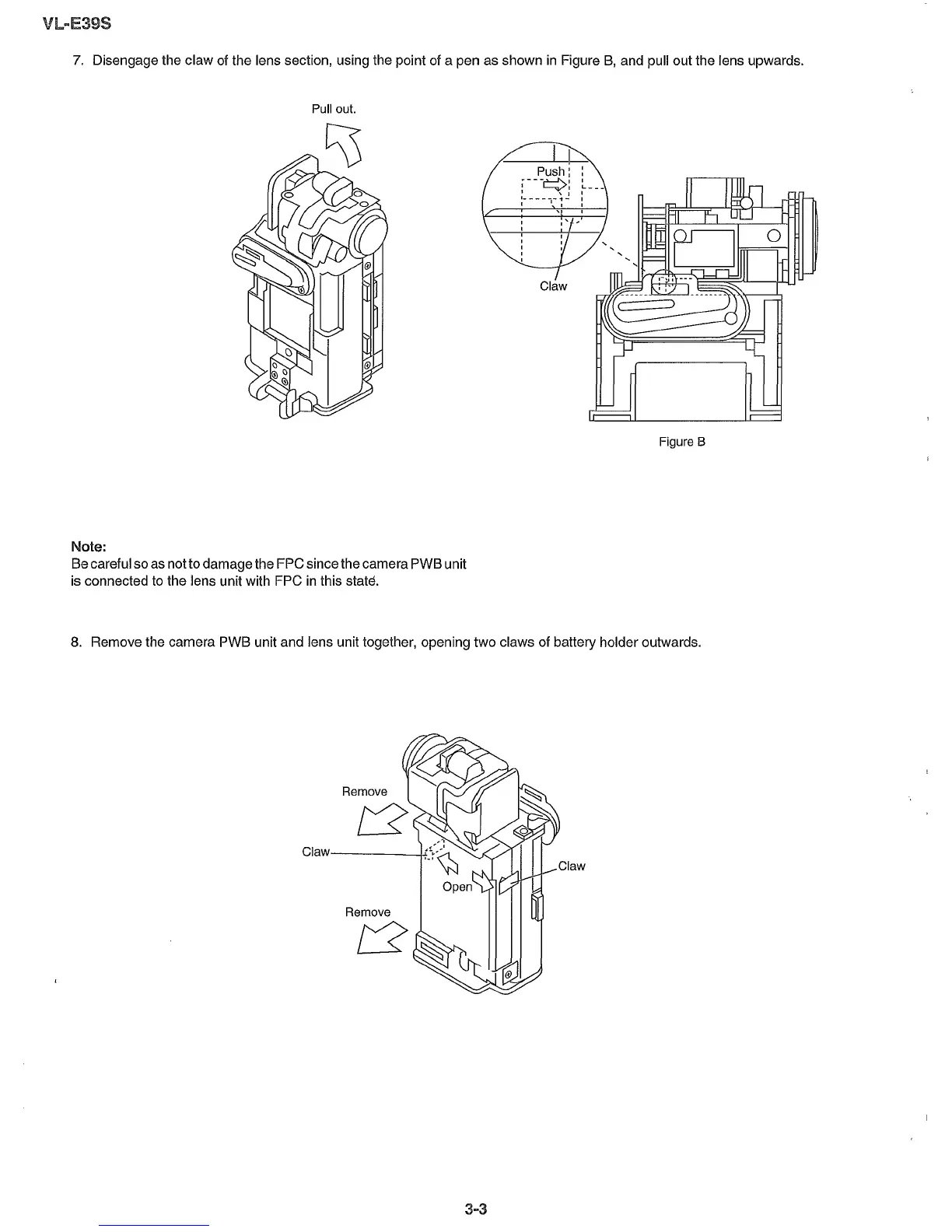

7. Disengage the claw of the lens section, using the point of a pen as shown in Figure B, and pull out the lens upwards.
Pull out.
Figure
B
Note:
Be careful so as not to damagethe FPC since the camera PWBunit
is connected to the lens unit with FPC in this
state.
8. Remove the camera PWB unit and lens unit together, opening two claws of battery holder outwards.
Remove
Claw------+f
3-3
