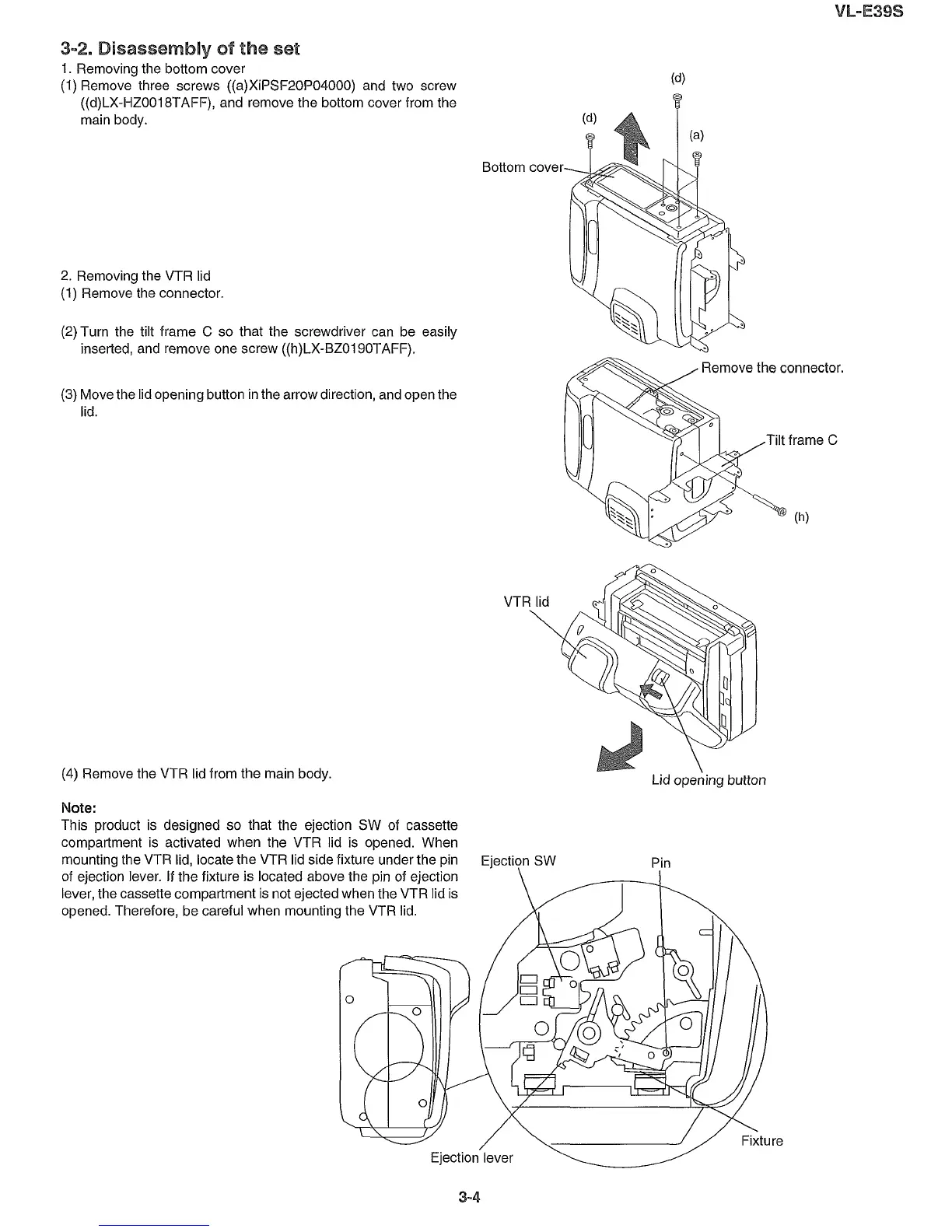

3~2.
Disassembly
of
the
set
1. Removing the bottom cover
(1) Remove three screws ((a)XiPSF20P04000) and two screw
((d)LX-Hl0018TAFF), and remove the bottom cover from the
main body.
Bottom cover
~~//~,-
2. Removing the VTR lid
(1) Remove the connector.
(2) Turn the tilt frame C so that the screwdriver can be easily
inserted, and remove one screw ((h)LX-Bl0190TAFF).
(3) Move the lid opening button in the arrow direction, and open the
lid.
VL-E39S
(d)
Remove the connector.
Tilt frame
C
(h)
VTR lid
(4) Remove the VTR lid from the main body.
Note:
This product is designed so that the ejection SW of cassette
compartment is activated when the VTR lid is opened. When
mounting the VTR lid, locate the VTR lid side fixture under the pin Ejection SW
of ejection lever.
If the fixture is located above the pin of ejection
lever, the cassette compartment is not ejected when the VTR lid is
opened. Therefore, be careful when mounting the VTR lid.
Ejection lever
Lid opening button
Pin
Fixture
