Vl-E39S

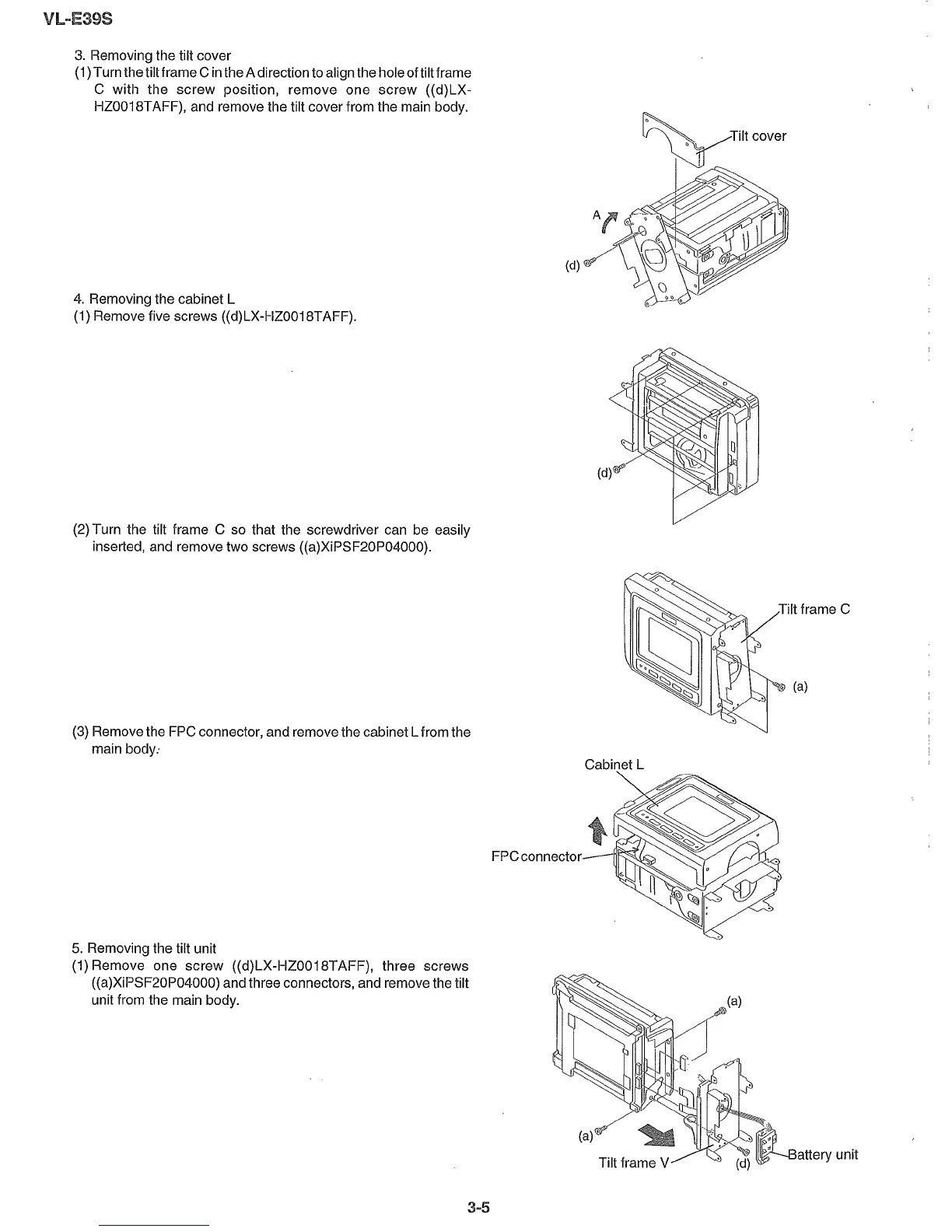

3. Removing the tilt cover
(1)Turn the tilt frame C in the Adirection to align the holeof tilt frame
C with the
screw
position, remove one
screw
((d) LX-
HZ0018TAFF), and remove the tilt cover from the main body.
4. Removing the cabinet L
(1) Remove five screws ((d)LX-HZ0018TAFF).
(d)
(2) Turn the tilt frame C so that the screwdriver can be easily
inserted, and remove two screws ((a)XiPSF20P04000).
(3) Remove the FPC connector, and remove the cabinet Lfrom the
main body:
Cabinet L
Tilt frame C
, (a)
FPCconnector
--II",'"'
5. Removing the tilt unit
(1) Remove one screw ((d)LX-HZ0018TAFF), three screws
((a)XiPSF20P04000) and three connectors, and remove the tilt
unit from the main body.
3-5
