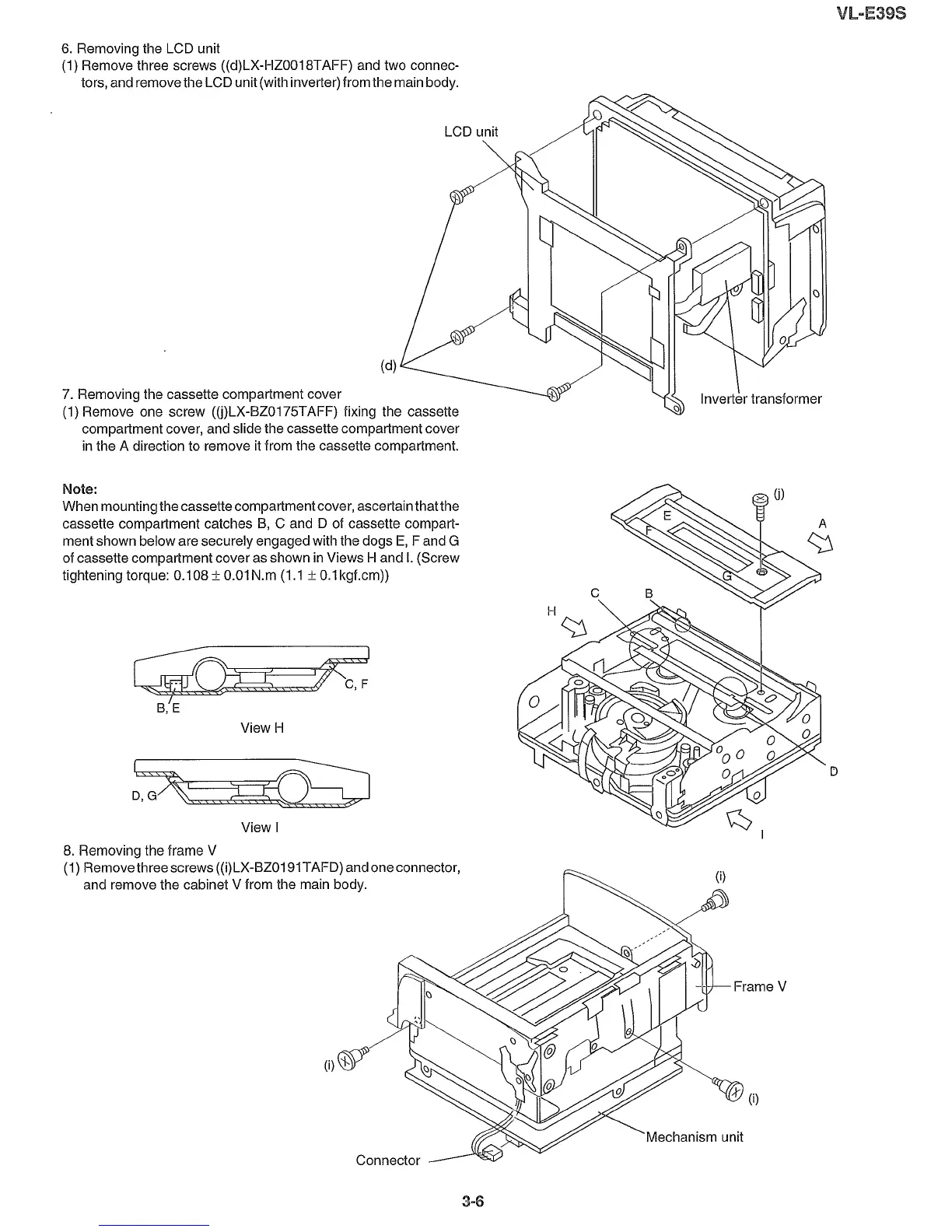

6. Removing the LCD unit
(1) Remove three screws ((d)LX-HZ0018TAFF) and two connec-
tors, and remove the LCD unit (with inverter) from the main body.
LCD unit
(d)
7. Removing the cassette compartment cover
(1) Remove one screw ((j)LX-BZ0175TAFF) fixing the cassette
compartment cover, and slide the cassette compartment cover
in the A direction to remove it from the cassette compartment.
Note:
When mounting the cassette compartmentcover, ascertain thatthe
cassette compartment catches B, C and D of cassette compart-
ment shown below are securely engaged with the dogs E, F and G
of cassette compartment cover as shown in Views H and I. (Screw
tightening torque: 0.108
±0.01N.m (1.1 ±0.1kgf.cm))
ViewH
View I
8. Removing the frame V
(1) Remove three screws ((i)LX-BZ0191TAFD) and one connector,
and remove the cabinet V from the main body.
(i)G§?
Connector
3-6
Frame V
~(i)
Mechanism unit
o
To Next Page
