VL-PDl U

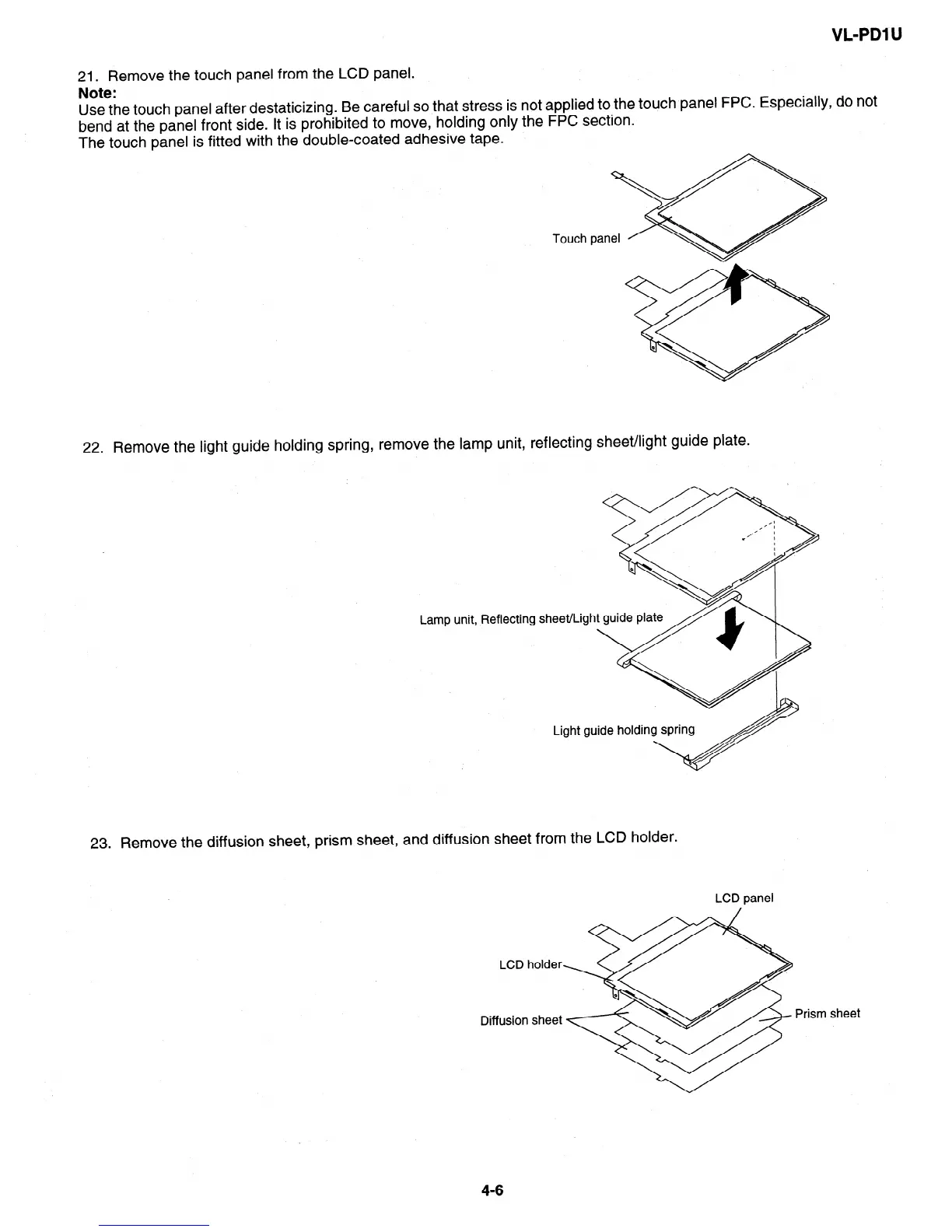

21. Remove the touch panel from the LCD panel.
Note:
Use the touch panel after destaticizing. Be careful so that stress is not applied to the touch panel FPC. Especially, do not
bend at the panel front side. It is prohibited to move, holding only the FPC section.
The touch panel is fitted with the double-coated adhesive tape.
22.
Remove the light guide holding spring, remove the lamp unit, reflecting sheet/light guide plate.
Lamp unit, Reflecting
Light guide holding spring
23. Remove the diffusion sheet, prism sheet, and diffusion sheet from the LCD holder.
LCD panel
LCD holder
Diffusion sheet
Prism sheet
To Next Page
