Sharp VL-PD1U

L-PDl U

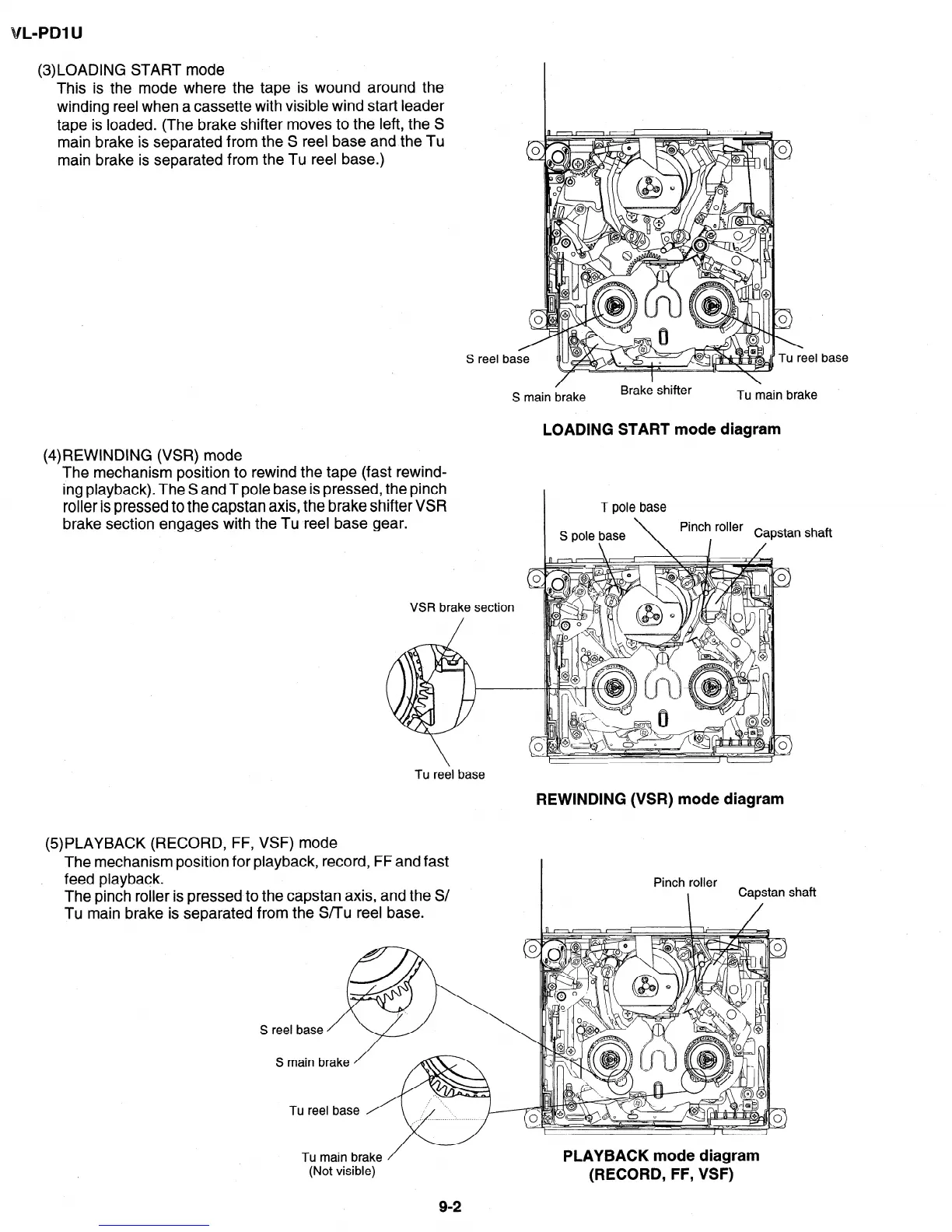

(3)LOADING START mode
This is the mode where the tape is wound around the
winding reel when a cassette with visible wind start leader
tape is loaded. (The brake shifter moves to the left, the S
main brake is separated from the S reel base and the Tu
main brake is separated from the Tu reel base.)
(4)REWINDING (VSR) mode
The mechanism position to rewind the tape (fast rewind-
ing playback). The S and T pole base is pressed, the pinch
roller is pressed to the capstan axis, the brake shifter VSR
brake section engages with the Tu reel base gear.
S reel base
\
reel base
VSR brake section
\
S main /brake
Brake shifter
Tu main brake
LOADING START mode diagram
T pole base
S pole base
\
Pinch roller
Capstan shaft
\
I /
Tu reel base
REWINDING (VSR) mode diagram
(5)PLAYBACK (RECORD, FF, VSF) mode
The mechanism position for playback, record, FF and fast
, feed playback.
The pinch roller is pressed to the capstan axis, and the S/
Tu main brake is separated from the S/Tu reel base.
S main brake
Tu main brake
/
PLAYBACK mode diagram
(Not visible)
(RECORD, FF, VSF)
92
