9-6. Removing the cassette
(1)Apply DC3V to the loading motor unload slightly.
(2)After the tape is slackened, turn
the rotor (lower side of mechanism) of capstan motor to tighten the tape. (Arrow
direction, Fig. 1)
(3)Repeat the operations (1) and (2). After the pole base has been completely unloaded, ascertain that the tape is not
loose.
(4)Finally apply again DC3V to the loading motor, so that the cassette controller ejects.
(5)Take out the cassette.
Note) DC3V is applied
to the loading motor as shown below. Then, the mechanism moves
in the unloading direction.
Plus pole
I
Capstan motor rotor rotation direction
(from rear side of mechanism)
I
Minus pole
/
Loading motor

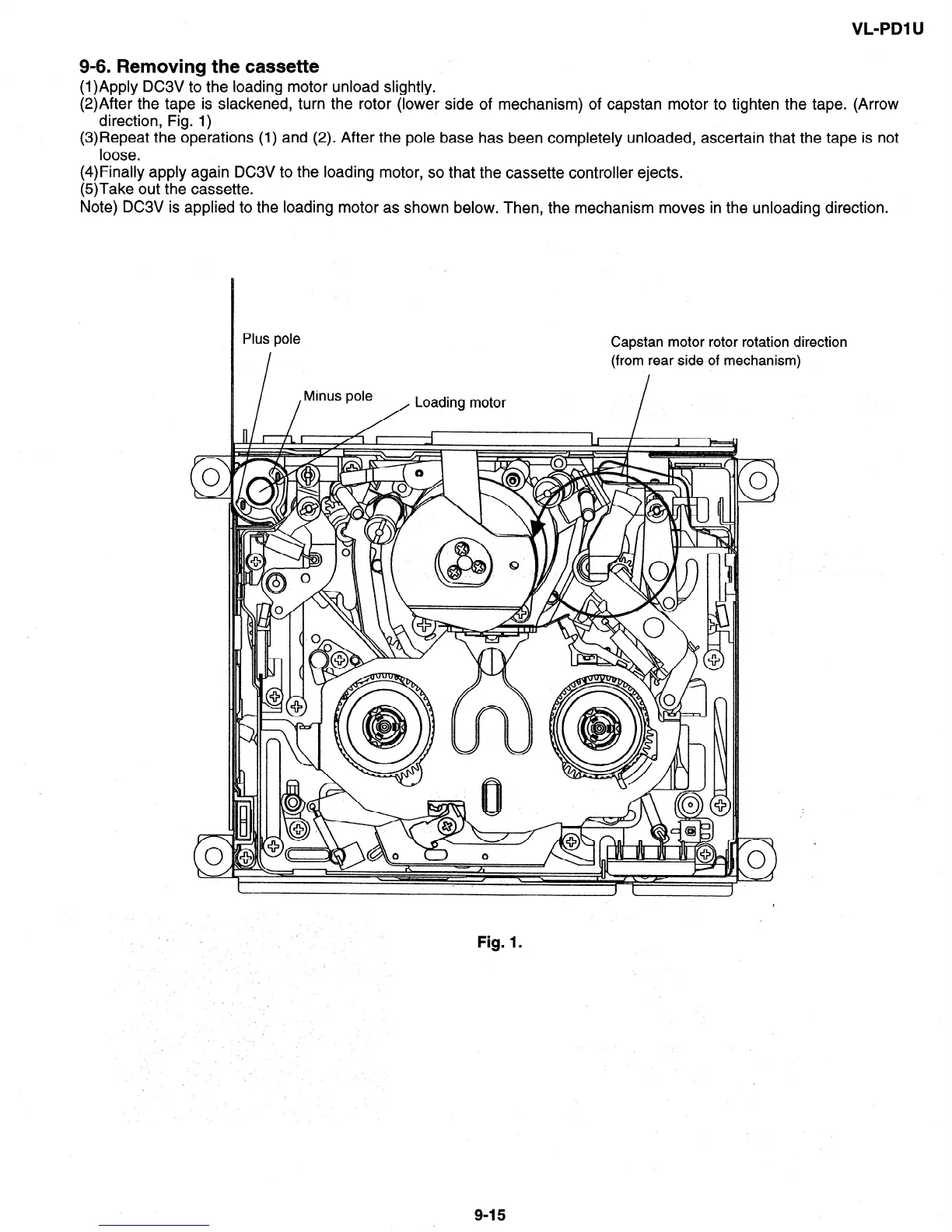

Fig. 1.
