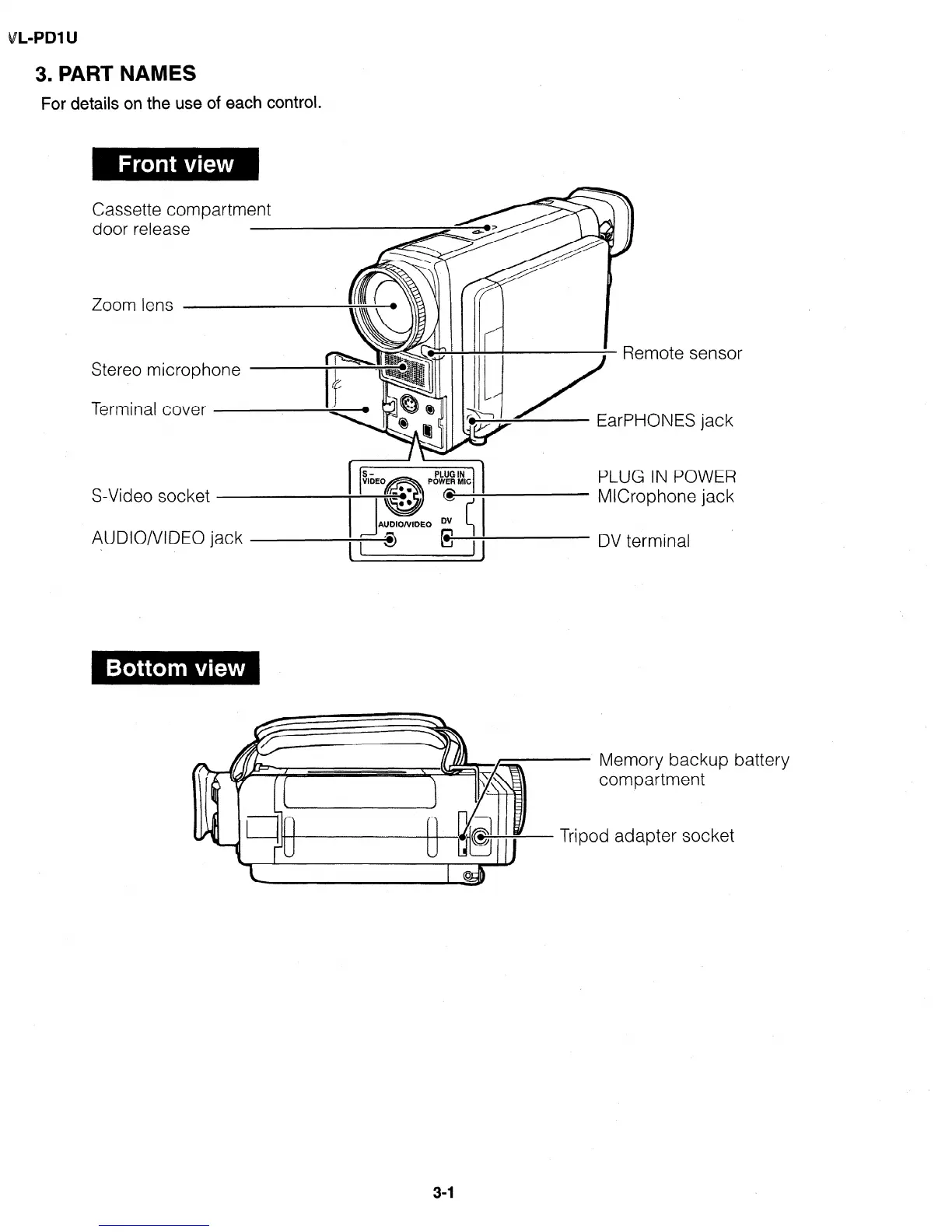

3. PART NAMES
For details on the use of each control.
Cassette compartment
door release
Zoom lens
Stereo microphone
Terminal cover
EarPHONES jack
S-Video socket
AUDIO/VIDEO jack
PLUG IN POWER
MICrophone jack
DV terminal
- Memory backup battery
compartment
Tripod adapter socket
3-l
