VL-PD3AS/AH/AE

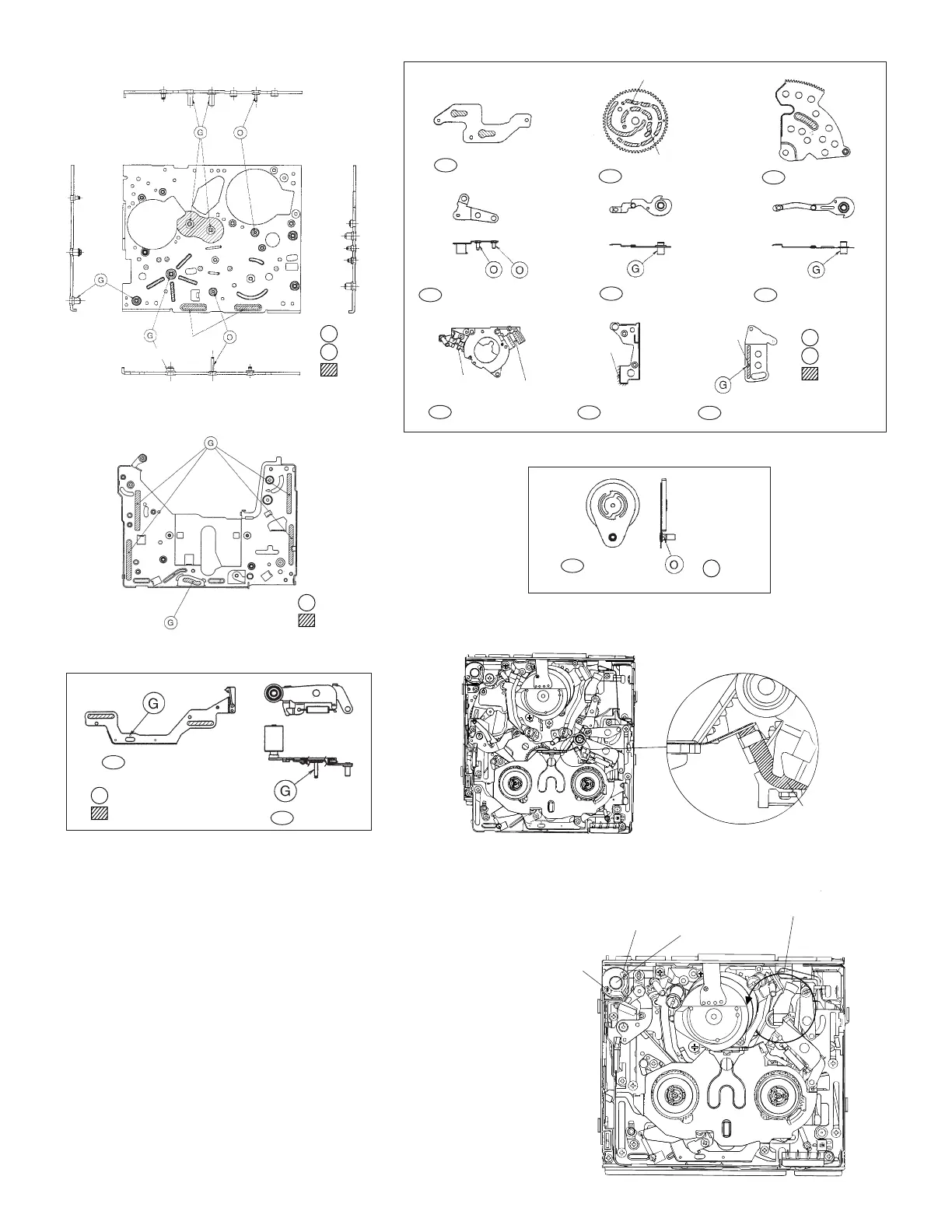

GREASE/OIL APPLICATION
Fig. 1. Side of the main chassis
Fig. 3. Side of the slide chassis
G
: Greasing
: Greasing
O
G
: Oiling
: Greasing
: Greasing
Fig. 4. Side of the slide chassis
458 Pinch lever
353 Brake shifter
G
: Greasing
: Greasing
8-6. Removing the cassette
(1) Apply DC3V to the loading motor unload slightly.
(2) After the tape is slackened, turn the rotor (lower side of mechanism)
of capstan motor to tighten the tape. (Arrow direction, Fig. 1)
(3) Repeat the operations (1) and (2). After the pole base has been
completely unloaded, ascertain that the tape is not loose.
(4) Finally apply again DC3V to the loading motor, so that the cassette
controller ejects.
(5) Take out the cassette.
Note) DC3V is applied to the loading motor as shown Fig 1. Then, the
mechanism moves in the unloading direction.
303 Pinch control lever
From rear
surface side
306 Loading lever
312 Intermediate gear angle
307 S loading arm
308 Tu loading arm
From rear
surface side
(Rear surface · groove
side surface)
453 Drum base assembly 311 Tu guide cam
309 T arm control lever
O
G
: Oiling
: Greasing
: Greasing
304 Main cam
Enabled after
assembling
Enabled after
assembling
(Front surface · rear
surface · groove
side surface)
Fig. 2. Side of the main chassis
313 Swing arm
O
: Oiling
Fig. 5. After joining the main chassis and slide chassis
Including groove
side surface
Part A
Plus pole
Sensor FPC
Fig. 1
Minus pole
Loading motor
Capstan motor rotor rotation direction
(from rear side of mechanism)
Fig. 6. Sensor FPC wiring
