VL-PD3AS/AH/AE

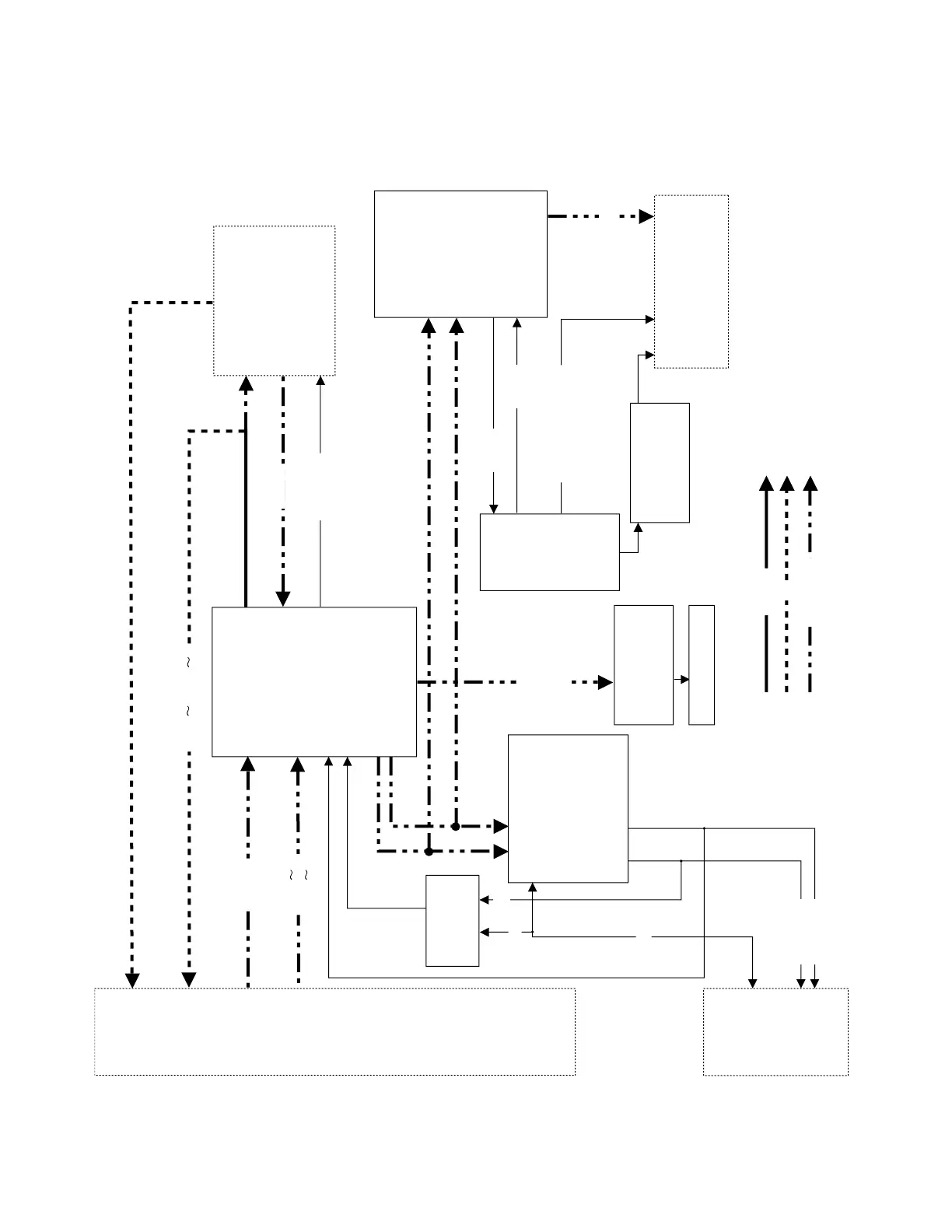

12-3. VIO ENGINE SECTION BLOCK DIAGRAM
REC (EE)
PB
REC (EE), PB
IC4401
VIO ENGINE
RH-iX0707TAZZ
304P
IC1401
VIDEO I/O
VHiNJM2538B-1
20P
IC1802
LCD
CONTROLER
SC1800
IC452
REC/PB ENGINE
RH-iX0710TAN1
328P
IC802
VHiiR3Y29AM/-1
LCD DECORDER
48P
J5201
CDY0 7, CDC0 7
CDVDP
CDHDP
CDUVSELP
ZUVSELP
ZCLKP
ZHDP
ZVDP
ZYP0 7
ZCP0 7
VIDEO IN/OUT
SEP Y IN/OUT
SEP C IN/OUT
I/O SEL
CLD, SPD, CTR,
EX1, EX2, EX3,
SPS, RES, CLS, MODE2
VR, VG, VB
CVDR, CHDR
A-Y-OUT
A-C-OUT
A-C-IN
A-Y/COMP-V-IN
IC1431
VHiNJM2235V-1
VIDEO-IN
SEP-Y-IN
IC1801
VHiNJM4565V-1
COM AMP
IC8800
VHiCXA3503R
72P
COM
COM
FRPT
FRPV
SYNI
LCD_C
LCD_Y
VF_Y
VF_R-Y
VF_B-Y
SC8801
CAMERA SECTION BLOCK DIAGRAM CAM ENGINE
