5
VL-PD3AS/AH/AE
(Q)
(Q)
(G)
(G)
(D)

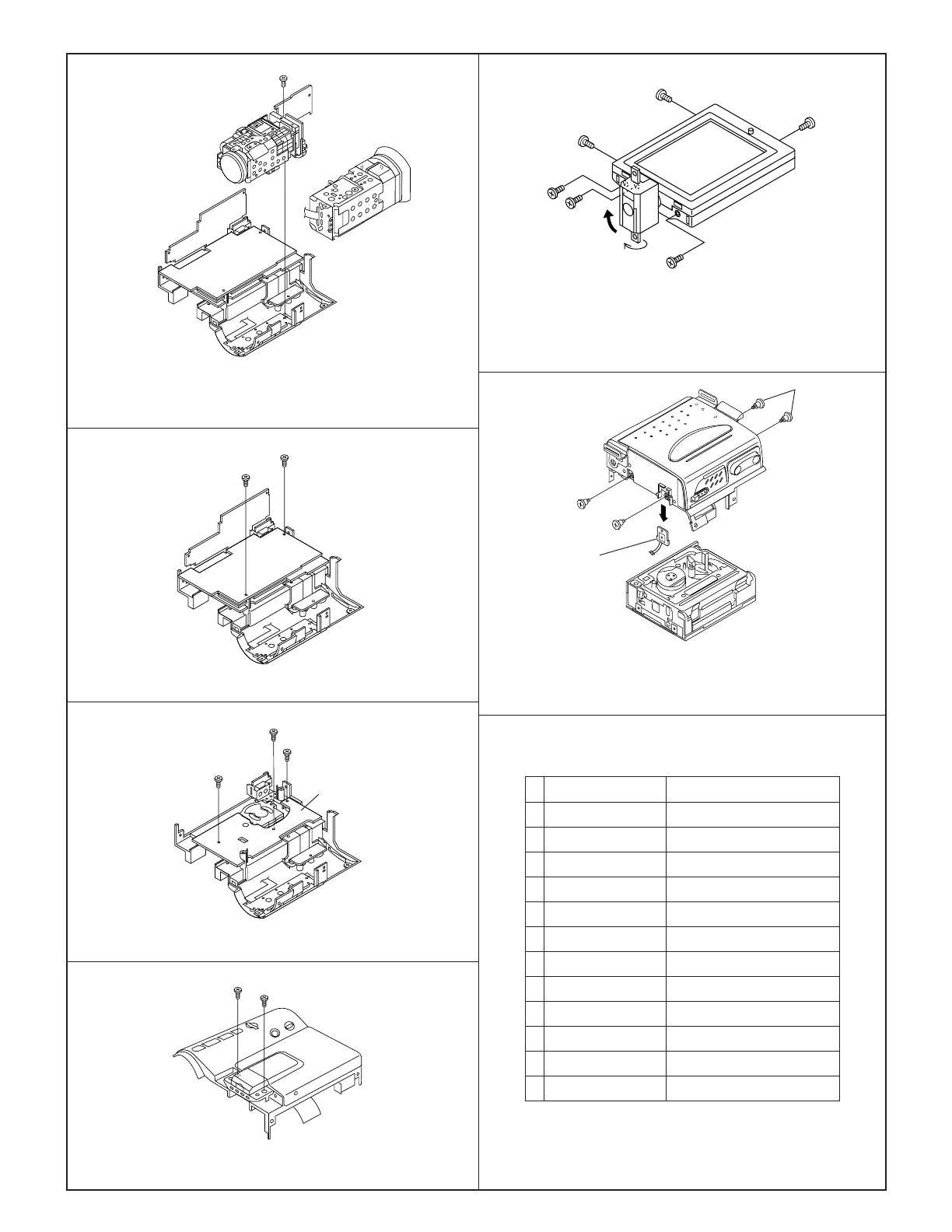

· Turn to a right angle the shaft of the LCD tilt unit section, turn the
LCD tilt unit and it is perpendicular to the LCD cabinet.
· Remove the fixing screws ((G)XiPSN17P03000)(5pcs.), ((D)
XiPSF17P03000)(1pc.) and LCD cabinet.
(T)
(S)
(I)
· Remove the screws ((U)LX-HZ0013TAFF)(2pcs.) and VCR PWB.
(U)
· Remove the floating screws ((I)LX-BZ0032TAFD)(2pcs.), ((S)
LX-BZ0225TAFF)(1pc.) and ((T)LX-BZ0231TAFE)(1pc.) and
mechanism section .
A LX-HZ0050TAFF M1.7×4 Black
B LX-HZ0050TAFN M1.7×4 Silver
C XiPSF17P04000 M1.7×4 Black
D XiPSF17P03000 M1.7×3 Black
F XiPSN17P04000 M1.7×4 Silver
G XiPSN17P03000 M1.7×3 Silver
H XiPSN17P02000 M1.7×2 Silver
I LX-BZ0232TAFD Floating screw B
Q LX-HZ0017TAFF M2×8 Black
R XiPSN16P05000 M1.6×5 Silver
S LX-BZ0225TAFF Floating screw Black
T LX-BZ0231TAFE Floating screw A Silver
U LX-HZ0013TAFF M1.7×6 Black
<Screws>
(U)
8.
9.
10.
11.
13.
12.
(G)
(G)
(G)
(U)
Remote control
receiver
· Remove the screws ((A)LX-HZ0050TAFF)(3pcs.) and joint PWB.
· Remove the LCD tilt fixing screws ((Q)LX-HZ0017TAFF)(2pcs.)
and LCD cabinet unit.
· Remove the screw ((U)LX-HZ0013TAFF)(1pc.) fixed the jogholder
and the lens unit.
Remove the connector of main P.W.B. and remove to lift V/F unit.
(A)
(A)
(A)
Joint PWB
